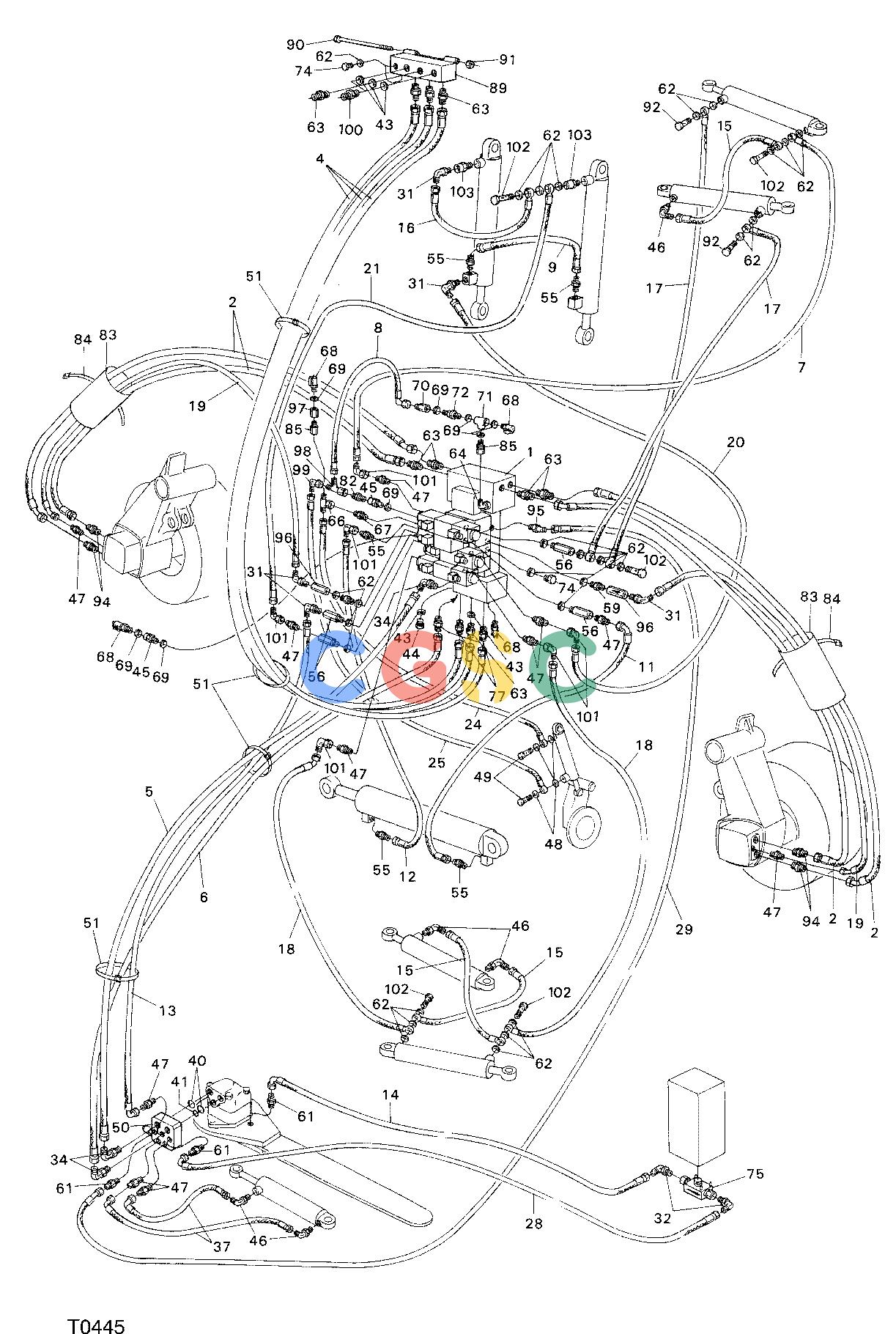

约翰迪尔零件查询743 ATT - ATTACHMENTS ENGINE HYDRAULIC MOUNTING F042685 11 10 T0445 [T0445]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
588 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F024699
|
[1] |
Valve
|
|
| 2. |
F028716
|
[4] |
HOSE-ASSY
|
|
| 4. |
F020081
|
[3] |
HOSE-ASSY
|
|
| 5. |
F028717
|
[1] |
HOSE-ASSY
|
|
| 6. |
F028718
|
[1] |
HOSE-ASSY
|
|
| 7. |
F028730
|
[1] |
HOSE-ASSY
|
|
| 8. |
F026360
|
[1] |
HOSE-ASSY
|
|
| 9. |
F028723
|
[1] |
HOSE-ASSY
|
|
| 11. |
F038789
|
[1] |
HOSE-ASSY
|
|
| 12. |
F028721
|
[1] |
HOSE-ASSY
|
|
| 13. |
F028719
|
[1] |
HOSE-ASSY
|
|
| 14. |
F028727
|
[1] |
HOSE-ASSY
|
|
| 15. |
F028731
|
[3] |
HOSE-ASSY
|
|
| 16. |
F028725
|
[1] |
HOSE-ASSY
|
|
| 17. |
F028732
|
[2] |
HOSE-ASSY
|
|
| 18. |
F028733
|
[2] |
HOSE-ASSY
|
|
| 19. |
F028720
|
[2] |
HOSE-ASSY
|
|
| 20. |
F024649
|
[1] |
HOSE-ASSY
|
|
| 21. |
F028724
|
[1] |
HOSE-ASSY
|
|
| 24. |
F028728
|
[1] |
HOSE-ASSY
|
|
| 25. |
F028729
|
[1] |
HOSE-ASSY
|
|
| 28. |
F013341
|
[1] |
HOSE-ASSY
|
|
| 29. |
F028726
|
[1] |
HOSE-ASSY
|
|
| 31. |
F024402
|
[4] |
ELBOW NIPPLE
|
|
| 32. |
F011057
|
[2] |
ELBOW NIPPLE
|
|
| 34. |
F005049
|
[3] |
ELBOW NIPPLE
|
|
| 37. |
F023037
|
[2] |
HOSE-ASSY
|
|
| 40. |
F004570
|
[2] |
O-Ring
|
|
| 41. |
F004569
|
[1] |
O-Ring
|
|
| 43. |
F005170
|
[9] |
SEAL RING
|
|
| 44. |
F003385
|
[1] |
Plug
|
|
| 45. |
F013167
|
[2] |
NIPPLE
|
|
| 46. |
F024402
|
[5] |
ELBOW NIPPLE
|
|
| 47. |
F005055
|
[11] |
NIPPLE
|
|
| 48. |
F008223
|
[2] |
COPPER WASHER
|
|
| 49. |
F012789
|
[2] |
BANJO SCREW
|
|
| 50. |
F025428
|
[1] |
BLOCK
|
|
| 51. |
F013611
|
[7] |
REPLACED
|
|
| 52. |
F005168
|
[8] |
SEAL RING
|
|
| 55. |
F005056
|
[5] |
NIPPLE
|
|
| 56. |
F019945
|
[4] |
NIPPLE
|
|
| 59. |
F004357
|
[1] |
NIPPLE
|
|
| 61. |
F005052
|
[3] |
NIPPLE
|
|
| 62. |
F005166
|
[30] |
SEAL RING
|
|
| 63. |
F005063
|
[10] |
NIPPLE
|
|
| 64. |
F011057
|
[1] |
ELBOW NIPPLE
|
|
| 66. |
F005075
|
[1] |
T-CONNECTION
|
|
| 67. |
F005054
|
[1] |
NIPPLE
|
|
| 68. |
F004419
|
[4] |
MEASURING NIPPLE
|
|
| 69. |
F005164
|
[6] |
SEAL RING
|
|
| 70. |
F013136
|
[1] |
NIPPLE
|
|
| 71. |
F012787
|
[1] |
T-PIPE
|
|
| 72. |
F005469
|
[1] |
Check Valve
|
|
| 74. |
F011246
|
[3] |
Plug
|
|
| 75. |
F012628
|
[1] |
Pump
|
|
| 77. |
F005064
|
[2] |
NIPPLE
|
|
| 82. |
F019960
|
[1] |
THROTTLE
|
|
| 83. |
F010871
|
[2] |
HOSE PROTECTION
|
|
| 84. |
F005334
|
[4] |
Binder
|
|
| 85. |
F027037
|
[2] |
CONNECTION
|
|
| 89. |
F019826
|
[1] |
BLOCK
|
|
| 90. |
F013609
|
[1] |
Screw
|
|
| 91. |
F003590
|
[1] |
Lock Nut
|
|
| 92. |
F022097
|
[2] |
BANJO SCREW
|
|
| 94. |
F005062
|
[4] |
NIPPLE
|
|
| 95. |
F019105
|
[1] |
ELBOW NIPPLE
|
|
| 96. |
F028807
|
[2] |
Check Valve
|
|
| 97. |
F007823
|
[1] |
CONNECTION
|
|
| 98. |
F005072
|
[1] |
L-CONNECTION
|
|
| 99. |
F005044
|
[1] |
ELBOW NIPPLE
|
|
| 100. |
F005065
|
[2] |
NIPPLE
|
|
| 101. |
F022417
|
[7] |
ELBOW NIPPLE
|
|
| 102. |
F027699
|
[5] |
BANJO SCREW
|
|
| 103. |
F017040
|
[2] |
NIPPLE
|
|
