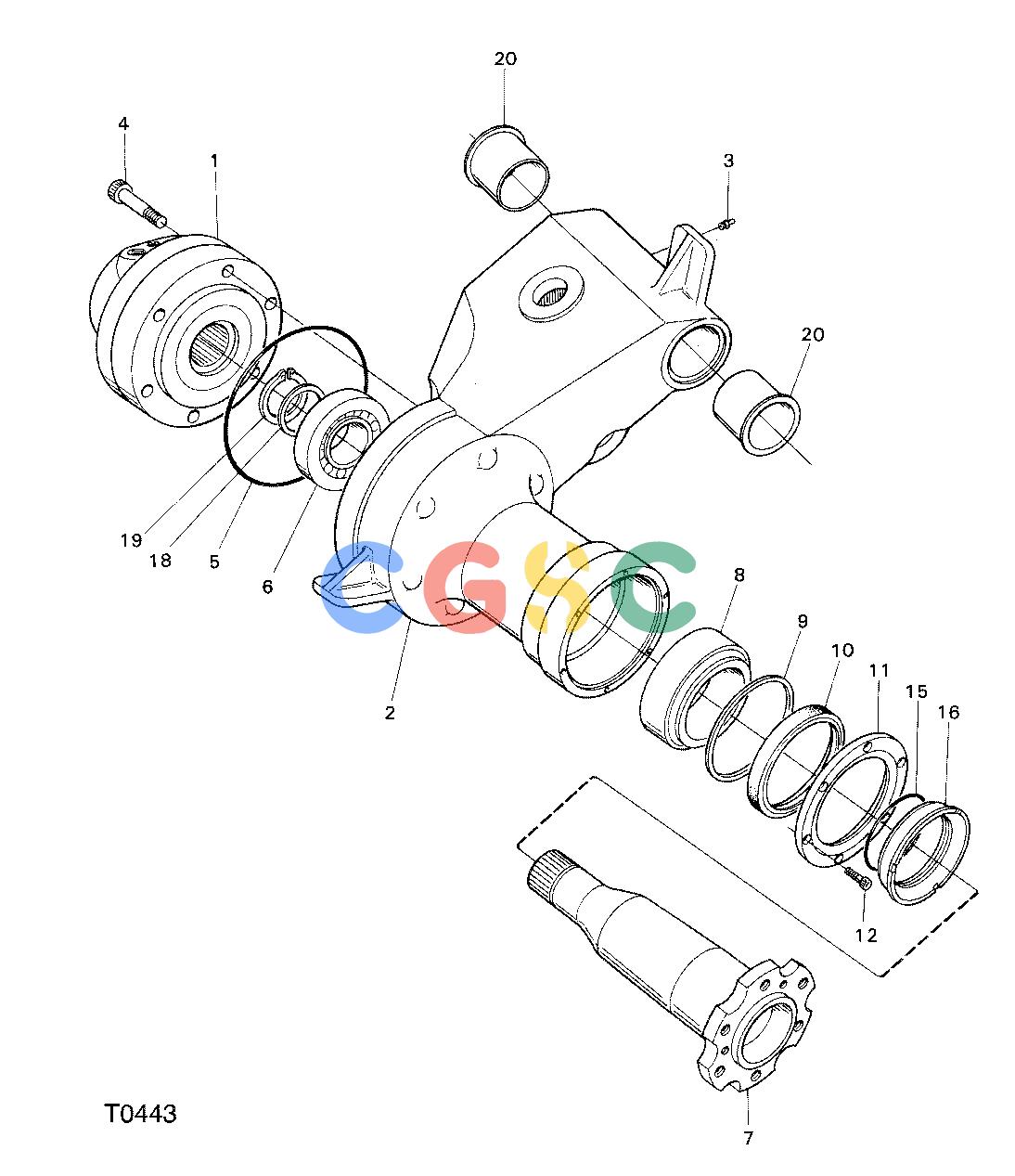

约翰迪尔零件查询743 ATT - ATTACHMENTS ENGINE WHEEL MOUNTING F042685 11 6 T0443 [T0443]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F022723
|
[1] |
Hydraulic Motor
|
|
| 2. |
F019891
|
[1] |
Arm
|
|
| |
F019893
|
[1] |
Arm
|
|
| 3. |
F005626
|
[1] |
GREASE NIPPLE
|
|
| 4. |
F010826
|
[1] |
Screw
|
|
| 5. |
F022722
|
[1] |
O-Ring
|
|
| 6. |
F022721
|
[1] |
Roller Bearing
|
|
| 7. |
F019932
|
[1] |
WHEEL SHAFT
|
|
| 8. |
F005590
|
[1] |
Roller Bearing
|
|
| 9. |
F014625
|
[1] |
SPACER RING
|
|
| 10. |
F005593
|
[1] |
SEAL RING
|
|
| 11. |
F014624
|
[1] |
Cap
|
|
| 12. |
F012851
|
[6] |
Screw
|
|
| 15. |
F005457
|
[1] |
O-Ring
|
|
| 16. |
F014623
|
[1] |
SLIDE RING
|
|
| 18. |
-------
|
[1] |
Shim
|
|
| 19. |
-------
|
[1] |
CIRCLIP
|
|
| 20. |
F005548
|
[2] |
BEARING BUSHING
|
|
