斗山零件查询LUBRICATION PIPING - BOOM 4.6m DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
704 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

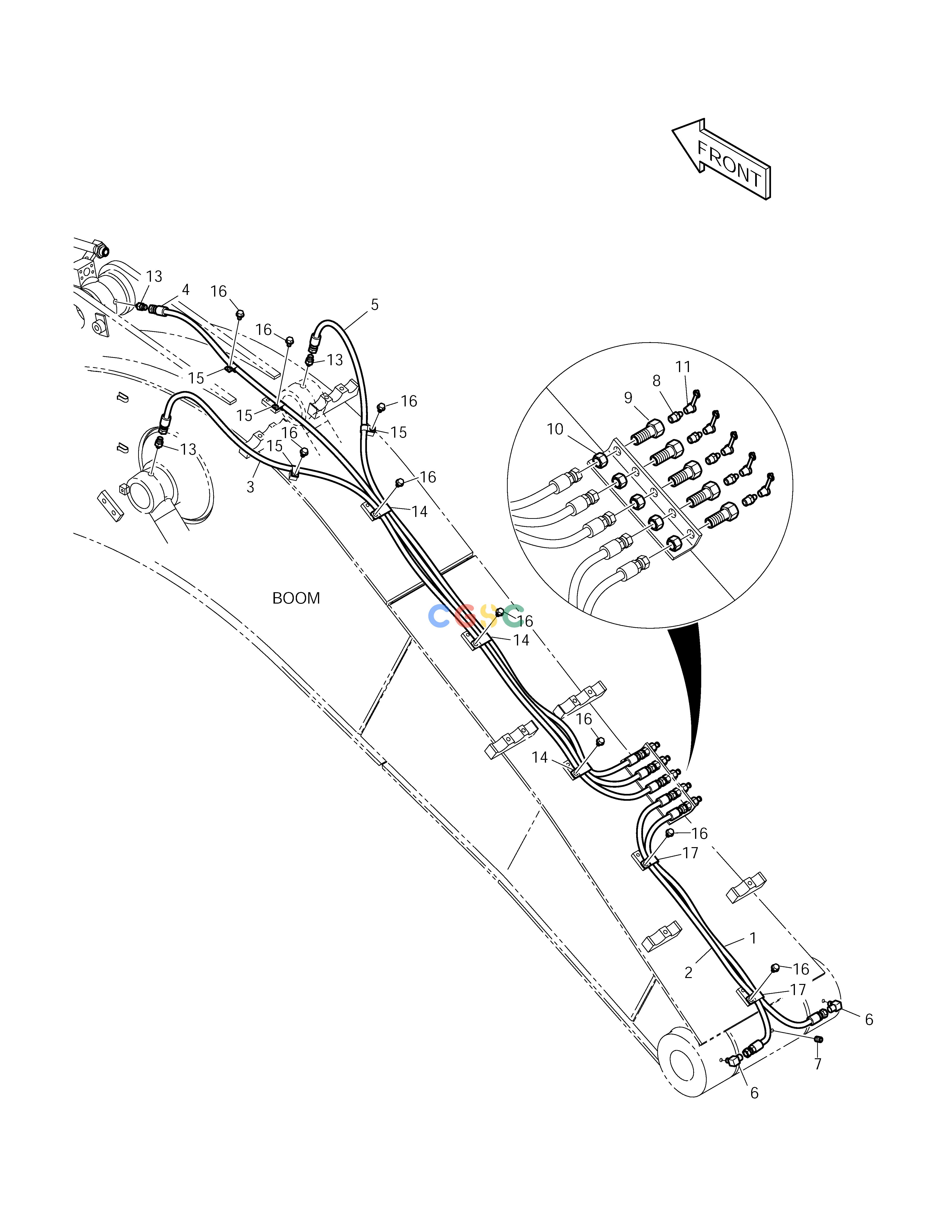

400-01361B
|
[-] |
BOOM LUBRICATION PIPING
|
|
| 1. |
DS2053796
|
[1] |
HOSE
|
|
| 10. |
121-00006
|
[5] |
NUT
|
|
| 11. |
160-00020
|
[5] |
CAP
|
|
| 13. |
2181-4112
|
[3] |
ADAPTER
|
|
| 14. |
124-00199D4
|
[3] |
CLIP
|
|
| 15. |
2124-1353D2
|
[4] |
CLIP
|
|
| 16. |
K1001029
|
[9] |
BOLT
|
|
| 17. |
124-00199D5
|
[2] |
CLIP
|
|
| 2. |
2184-1045D165
|
[1] |
HOSE PF1/4-900L
|
|
| 3. |
2184-1045D103
|
[1] |
HOSE PF1/4-1950L
|
|
| 4. |
DS2053929
|
[1] |
HOSE
|
|
| 5. |
2184-1045D161
|
[1] |
HOSE
|
|
| 6. |
2181-1186D12
|
[2] |
ELBOW
|
|
| 7. |
S3524403
|
[1] |
PLUG
|
|
| 8. |
S6710041
|
[5] |
NIPPLE,GREASE
|
|
| 9. |
181-00103
|
[5] |
REDUCER
|
|
