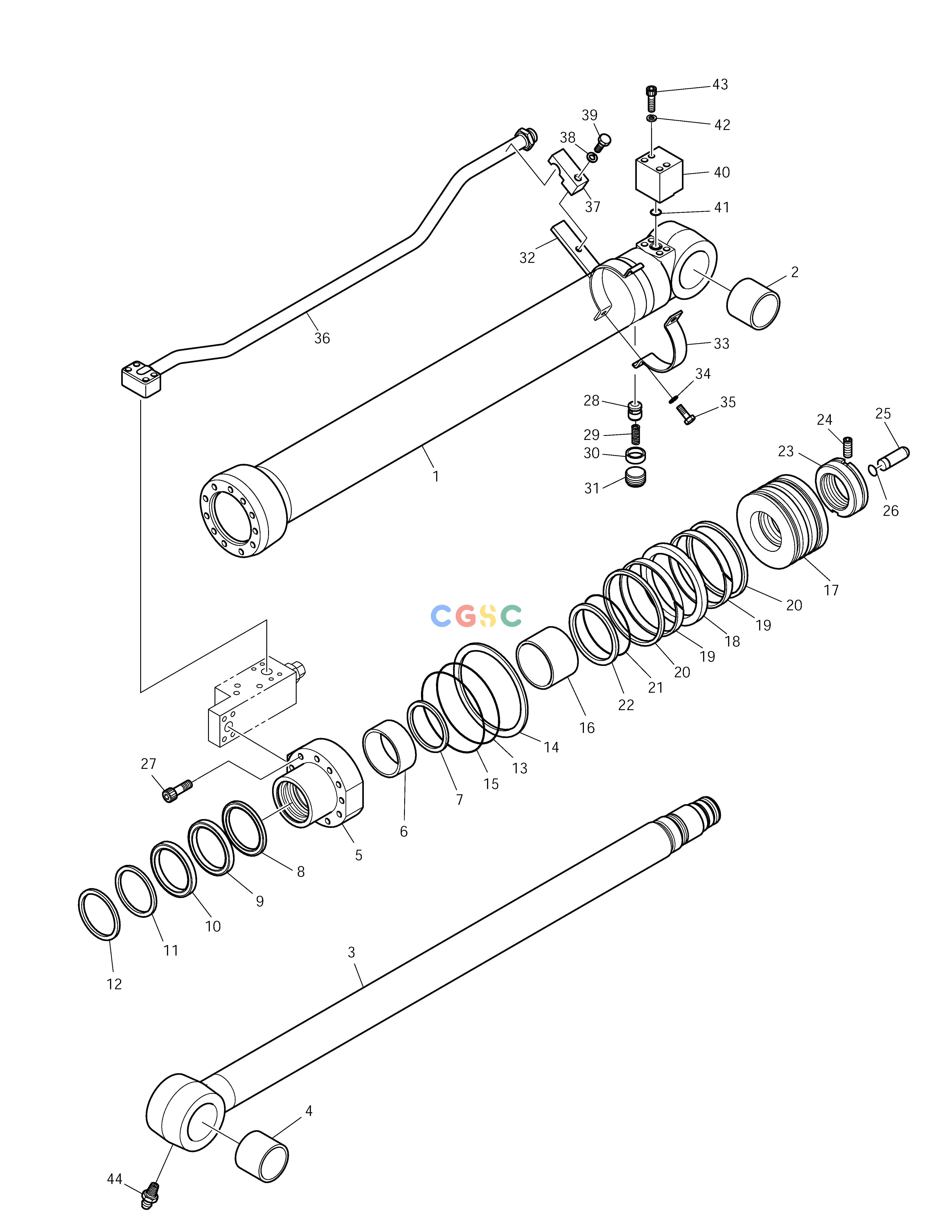

斗山零件查询ARM CYLINDER - ARM 2.1m (ARTI) L/V DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
481 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9002306
|
[1] |
SEAL KIT
|
|
| -. |
K1008752
|
[1] |
ARM CYLINDER-2.1m (ARTI)
|
|
| 1. |
K9005076
|
[1] |
TUBE ASS'Y
|
|
| 10. |
K9001396
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00060
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00050
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011051
|
[1] |
O-RING
|
|
| 14. |
1.180-00268
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011101
|
[1] |
O-RING
|
|
| 16. |
K9001387
|
[1] |
RING;CUSHION
|
|
| 17. |
K9004321
|
[1] |
PISTON
|
|
| 18. |
K9001389
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00056
|
[2] |
RING;WEAR
|
|
| 2. |
110-00241
|
[1] |
BUSH
|
|
| 20. |
K9001390
|
[2] |
RING;DUST
|
|
| 21. |
180-00247
|
[1] |
O-RING
|
|
| 22. |
1.180-00269
|
[2] |
RING;BACK UP
|
|
| 23. |
121-00043
|
[1] |
NUT;PISTON
|
|
| 24. |
S3523836
|
[1] |
SCREW;SET
|
|
| 25. |
424-00059
|
[1] |
PLUNGER;CUSHION
|
|
| 26. |
115-00081
|
[1] |
RING;STOP
|
|
| 27. |
S2219071
|
[11] |
BOLT;SOCKET
|
|
| 28. |
1.420-00039
|
[1] |
VALVE;CHECK
|
|
| 29. |
1.131-00009
|
[1] |
SPRING
|
|
| 3. |
K9005055
|
[1] |
ROD ASS'Y
|
|
| 30. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 31. |
2181-1116D3
|
[1] |
PLUG;HEX. SOCKET
|
|
| 32. |
K9005056
|
[1] |
PIPE BAND ASS'Y
|
|
| 33. |
K9005048
|
[1] |
BAND;PIPE
|
|
| 34. |
S5100603
|
[2] |
WASHER
|
|
| 35. |
S0558153
|
[2] |
BOLT
|
|
| 36. |
K9005077
|
[1] |
PIPE ASS'Y
|
|
| 37. |
K9001413
|
[1] |
CLAMP;PIPE
|
|
| 38. |
S5102903
|
[1] |
WASHER
|
|
| 39. |
S0565451
|
[1] |
BOLT
|
|
| 4. |
110-00241
|
[1] |
BUSH
|
|
| 40. |
K9001414
|
[1] |
PORT;FLANGE
|
|
| 41. |
S8000281
|
[1] |
O-RING
|
|
| 42. |
S5100603
|
[4] |
WASHER
|
|
| 43. |
S2212961
|
[4] |
BOLT;SOCKET
|
|
| 44. |
S6710032
|
[1] |
NIPPLE;GREASE
|
|
| 5. |
K9004320
|
[1] |
COVER;ROD
|
|
| 6. |
110-00082
|
[1] |
DD-BUSH
|
|
| 7. |
115-00052
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001385
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001386
|
[1] |
U-PACKING
|
|
