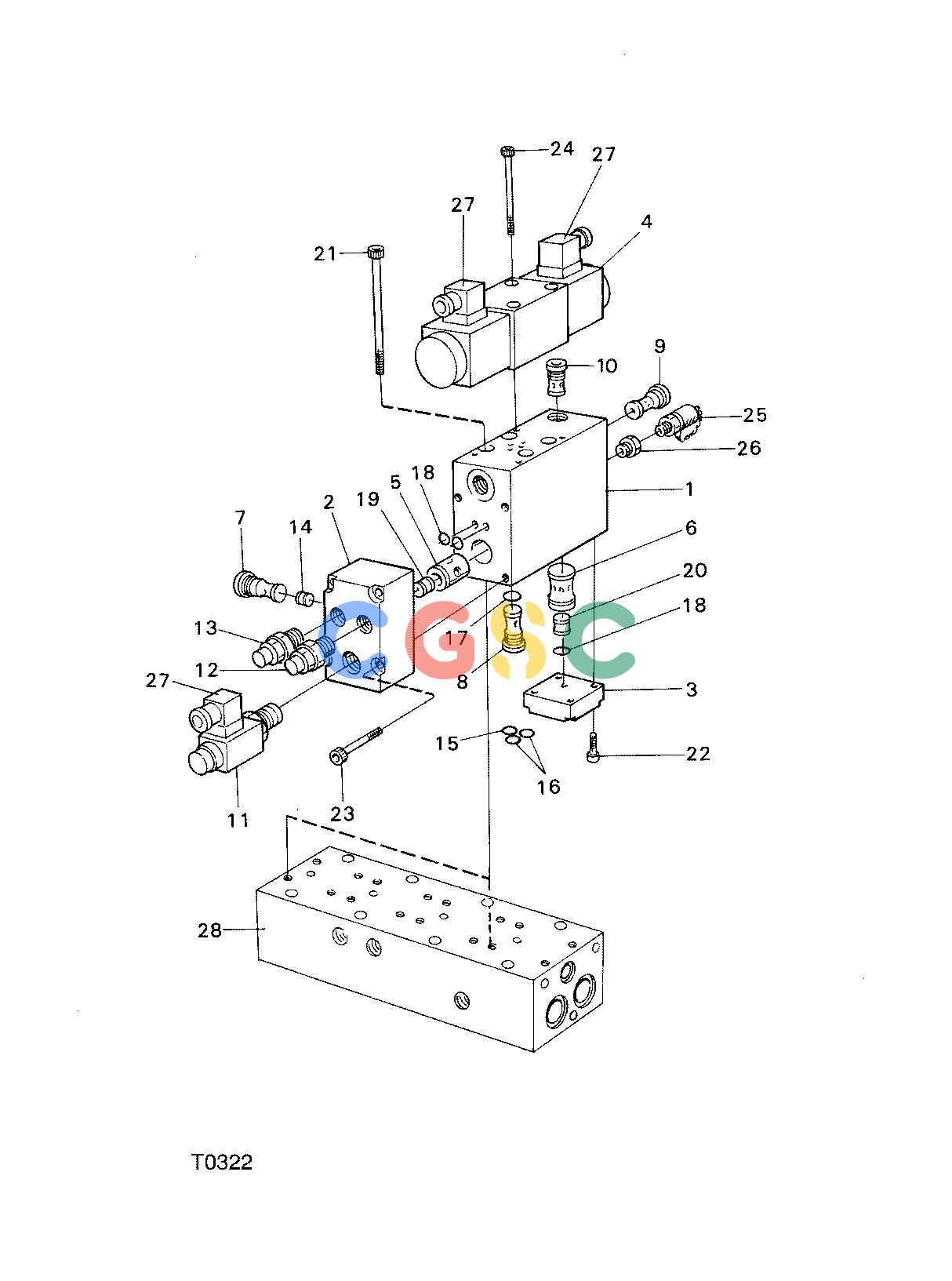

约翰迪尔零件查询743 ATT - ATTACHMENTS ENGINE VALVE F042685 11 32 T0322 [T0322]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
238 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F028405
|
[1] |
VALVE BLOCK SECTION
|
|
| 1. |
F018801
|
[2] |
VALVE BLOCK
|
|
| 2. |
F018802
|
[2] |
Cover
|
|
| 3. |
F022087
|
[2] |
VALVE BLOCK
|
|
| 4. |
F018780
|
[2] |
Control Valve
|
|
| |
F018788
|
[2] |
Seal Kit
|
|
| |
F008453
|
[4] |
Solenoid
|
|
| 5. |
F018805
|
[2] |
RELIEF CARTRIDGE
|
|
| |
F018824
|
[2] |
Seal Kit
|
|
| 6. |
F008640
|
[2] |
RELIEF CARTRIDGE
|
|
| |
F008638
|
[2] |
Seal Kit
|
|
| 7. |
F008631
|
[2] |
Check Valve
|
|
| 8. |
F018776
|
[2] |
Check Valve
|
|
| |
F021607
|
[2] |
O-Ring
|
|
| 9. |
F018813
|
[2] |
Check Valve
|
|
| |
F021609
|
[2] |
O-Ring
|
|
| 10. |
F018814
|
[2] |
Check Valve
|
|
| |
F021609
|
[2] |
O-Ring
|
|
| 11. |
F018806
|
[2] |
Relief Valve
|
|
| |
F018827
|
[2] |
Seal Kit
|
|
| 12. |
F018807
|
[2] |
Valve
|
|
| |
F018828
|
[2] |
O-Ring
|
|
| |
F018829
|
[2] |
SUPPORT RING
|
|
| |
F018078
|
[2] |
O-Ring
|
|
| |
F008224
|
[2] |
COPPER WASHER
|
|
| 13. |
F018808
|
[2] |
Relief Valve
|
|
| |
F018828
|
[2] |
O-Ring
|
|
| |
F018829
|
[2] |
SUPPORT RING
|
|
| |
F018078
|
[2] |
O-Ring
|
|
| |
F008224
|
[2] |
COPPER WASHER
|
|
| 14. |
F018787
|
[2] |
THROTTLE SCREW
|
|
| 15. |
F003285
|
[2] |
O-Ring
|
|
| 16. |
F018771
|
[4] |
O-Ring
|
|
| 17. |
F018768
|
[2] |
O-Ring
|
|
| 18. |
F018772
|
[6] |
O-Ring
|
|
| 19. |
F008639
|
[2] |
Spring
|
|
| 20. |
F018815
|
[2] |
Spring
|
|
| 21. |
F018811
|
[8] |
Screw
|
|
| 22. |
F010749
|
[8] |
Screw
|
|
| 23. |
F010828
|
[8] |
Screw
|
|
| 24. |
F008644
|
[8] |
Screw
|
|
| 25. |
F004419
|
[2] |
MEASURING NIPPLE
|
|
| 26. |
F004278
|
[2] |
NIPPLE
|
|
| 27. |
F004578
|
[3] |
Connector
|
|
| 28. |
F025710
|
[1] |
BLOCK
|
|
