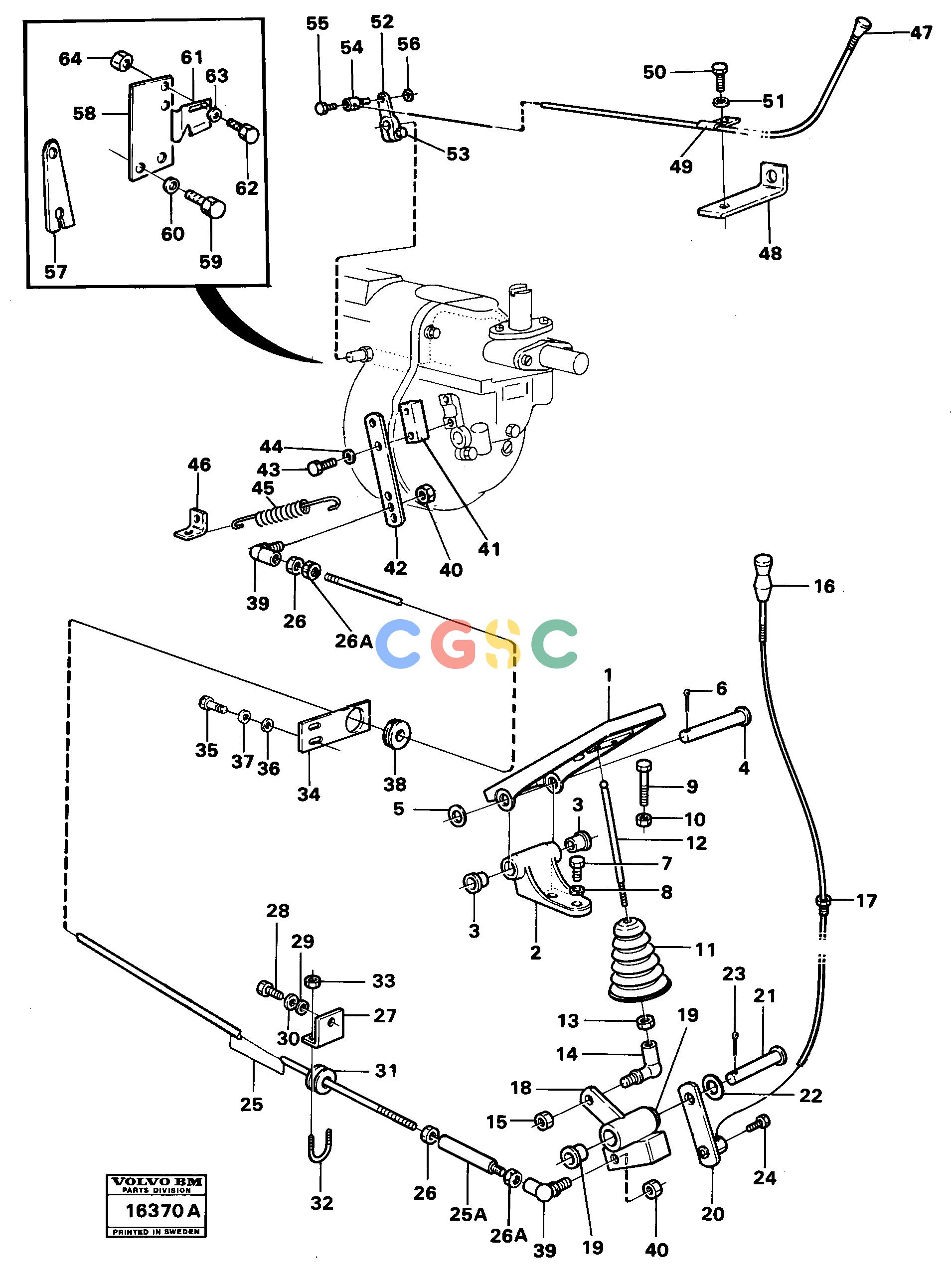

沃尔沃零件查询4500 Regulator control4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
407 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE60110353
|
[0001] |
Washer
|
|
| 42. |
VOE748459
|
[0001] |
Arm
|
|
| 43. |
VOE940101
|
[0002] |
Hexagon screw
|
|
| 44. |
VOE13941906
|
[0002] |
Washer
|
|
| 45. |
VOE11180052
|
[0001] |
Spring
|
|
| 46. |
VOE4761860
|
[0001] |
Attachment
|
|
| 47. |
VOE15140105
|
[0001] |
Wire control
|
|
| |
VOE4881440
|
[0001] |
Cable tie
|
SER NO 4102 -
|
| 48. |
VOE4760237
|
[0001] |
Anchorage
|
SER NO -1865
|
| 49. |
VOE940374
|
[0001] |
Clamp
|
SER NO -1865
|
| 50. |
VOE955269
|
[0001] |
Hexagon screw
|
SER NO -1865
|
| 6. |
VOE13907856
|
[0001] |
Cotter Pin
|
|
| 51. |
VOE955892
|
[0001] |
Plain washer
|
SER NO -1865
|
| 52. |
VOE7207711
|
[0001] |
Hand lever
|
SER NO -1865
|
| 53. |
VOE955637
|
[0001] |
Hexagon screw
|
SER NO -1865
|
| 54. |
VOE928900
|
[0001] |
Retainer
|
SER NO -1865
|
| 55. |
VOE955269
|
[0001] |
Hexagon screw
|
SER NO -1865
|
| 56. |
VOE955891
|
[0001] |
Plain washer
|
SER NO -1865
|
| 57. |
VOE241408
|
[0001] |
Hand lever
|
SER NO 1866-
|
| 58. |
VOE4823570
|
[0001] |
Bracket
|
SER NO 1866-
|
| 59. |
VOE955269
|
[0002] |
Hexagon screw
|
SER NO 1866-
|
| 60. |
VOE13941906
|
[0002] |
Washer
|
SER NO 1866-
|
| 7. |
VOE13955272
|
[0002] |
Screw
|
|
| 61. |
VOE682040
|
[0001] |
Clamp
|
SER NO 1866-
|
| 62. |
VOE955246
|
[0001] |
Hexagon screw
|
SER NO 1866-
|
| 63. |
VOE13940090
|
[0002] |
Washer
|
|
| |
|
|
None
|
SER NO 1866-
|
| 64. |
VOE13963104
|
[0001] |
Lock nut
|
|
| |
|
|
None
|
SER NO 1866-
|
| 8. |
VOE955948
|
[0002] |
Toothed washer
|
|
| 9. |
VOE968973
|
[0001] |
Hexagon screw
|
|
| 1. |
VOE1598173
|
[0001] |
Accelerator pedal
|
|
| 10. |
VOE955782
|
[0001] |
Hexagon nut
|
|
| 11. |
VOE4951016
|
[0001] |
Sealing bellows
|
|
| 12. |
VOE13948512
|
[0001] |
Control rod
|
|
| |
|
|
None
|
CAB - 1721
|
| |
VOE13948512
|
[0001] |
Control rod
|
|
| |
|
|
None
|
CAB 1722 -
|
| 13. |
VOE13955781
|
[0001] |
Nut
|
|
| 14. |
VOE959079
|
[0001] |
Angle ball joint
|
|
| 15. |
VOE13955781
|
[0001] |
Nut
|
|
| 16. |
VOE1571492
|
[0001] |
Control
|
PROD NO 33301,33302
|
| |
VOE1508869
|
[0001] |
Wire control
|
PROD NO 33310
|
| 2. |
VOE324714
|
[0001] |
Attaching bracket
|
|
| 17. |
VOE881190
|
[0001] |
Protecting sleeve
|
|
| 18. |
VOE4974566
|
[0001] |
Hand lever
|
|
| 19. |
VOE1588548
|
[0002] |
Bushing
|
|
| 20. |
VOE4926103
|
[0001] |
Hand lever
|
|
| 21. |
VOE191240
|
[0001] |
Bolt
|
|
| 22. |
VOE60110353
|
[0001] |
Washer
|
|
| 23. |
VOE13907856
|
[0001] |
Cotter Pin
|
|
| 24. |
VOE955269
|
[0001] |
Hexagon screw
|
|
| 25. |
VOE4851882
|
[0001] |
Pull rod
|
TILLV.NR-1865
|
| |
VOE4851882
|
[0001] |
Pull rod
|
SER NO 1866-
|
| 3. |
VOE1588548
|
[0002] |
Bushing
|
|
| 25A. |
VOE4925728
|
[0001] |
Adjusting screw
|
SER NO 1866-
|
| 26. |
VOE13955781
|
[0002] |
Nut
|
|
| 26A. |
VOE946035
|
[0002] |
Lock nut
|
SER NO 1866-
|
| 27. |
VOE4739204
|
[0001] |
Bracket
|
|
| 28. |
VOE940199
|
[0001] |
Hexagon screw
|
|
| 29. |
VOE13955894
|
[0001] |
Washer
|
|
| 30. |
VOE13941907
|
[0001] |
Washer
|
|
| 31. |
VOE351524
|
[0001] |
Bushing
|
|
| 32. |
VOE4740353
|
[0001] |
Clamp
|
SER NO -1865
|
| |
VOE4739981
|
[0001] |
Clamp
|
SER NO 1866-
|
| 4. |
VOE191240
|
[0001] |
Bolt
|
|
| 33. |
VOE950352
|
[0002] |
Lock nut
|
SER NO -1865
|
| |
VOE946035
|
[0002] |
Lock nut
|
SER NO 1866-
|
| 34. |
|
[0001] |
Support
|
|
| 35. |
VOE955293
|
[0002] |
Hexagon screw
|
SER NO -1673
|
| 36. |
VOE13955894
|
[0002] |
Washer
|
SER NO -1673
|
| 37. |
VOE13941907
|
[0002] |
Washer
|
SER NO -1673
|
| 38. |
VOE941269
|
[0001] |
Plug
|
SER NO -1673
|
| 39. |
VOE959079
|
[0002] |
Angle ball joint
|
|
| 40. |
VOE13955781
|
[0002] |
Nut
|
|
| 41. |
|
[0001] |
Spacer
|
|
