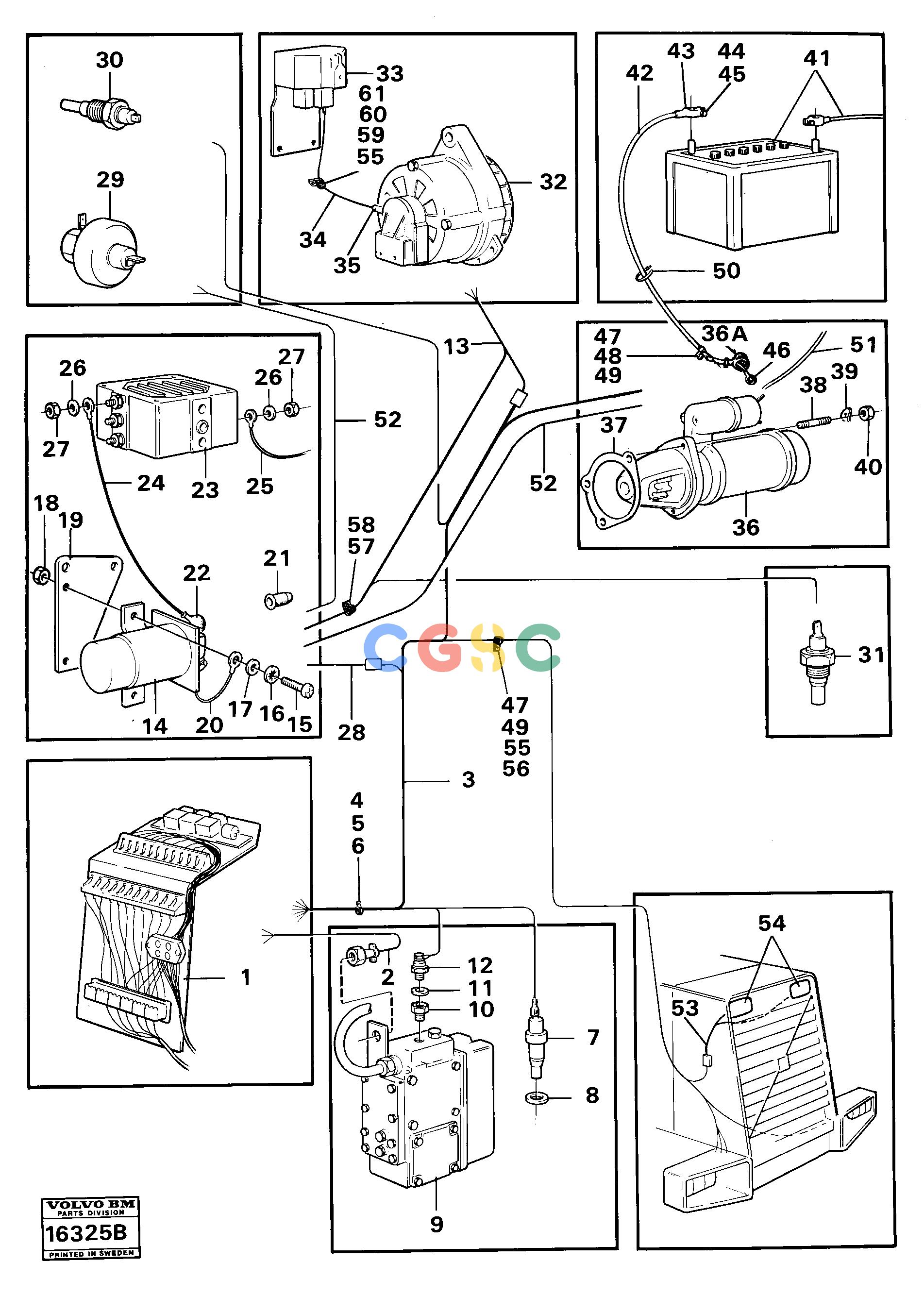

沃尔沃零件查询4500 Electric system,rear4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
163 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
|
None
|
CAB - 10449
|
| 38. |
VOE953486
|
[3] |
Stud
|
|
| 39. |
VOE13942336
|
[3] |
Spring washer
|
|
| 40. |
VOE13955827
|
[3] |
Nut
|
|
| 41. |
|
[2] |
Battery
|
|
| 42. |
VOE4949094
|
[1] |
Battery cable
|
|
| 43. |
VOE14024614
|
[1] |
Battery cable terminal
|
+
|
| 44. |
VOE13948795
|
[1] |
Screw
|
|
| 45. |
VOE13948794
|
[1] |
Nut
|
|
| 46. |
VOE954510
|
[0001] |
Cable terminal
|
|
| |
VOE952638
|
[0001] |
Clamp
|
SER NO 4341 -
|
| |
VOE4856267
|
[0001] |
Cable harness
|
PROD NO 33308
|
| |
VOE13955271
|
[0001] |
Screw
|
SER NO 4341 -
|
| 47. |
VOE952629
|
[0002] |
Clamp
|
|
| 48. |
VOE955269
|
[0001] |
Hexagon screw
|
|
| 49. |
VOE13941906
|
[0002] |
Washer
|
|
| 50. |
VOE4881440
|
[0004] |
Cable tie
|
|
| 51. |
|
[0001] |
Ground cable
|
|
| 52. |
|
[0001] |
Cable
|
|
| 53. |
VOE4761643
|
[0001] |
Cable
|
SER NO - 3280
|
| |
VOE4927103
|
[0001] |
Cable
|
SER NO 3281 -
|
| 54. |
|
[0002] |
Head lamp
|
|
| |
|
|
None
|
CAB 10450 -
|
| 55. |
VOE13955271
|
[0002] |
Screw
|
SER NO 1356-
|
| 56. |
VOE955948
|
[0001] |
Toothed washer
|
SER NO 1356-
|
| 57. |
VOE13946834
|
[0001] |
Clamp
|
|
| |
|
|
None
|
SER NO 1356-
|
| 58. |
VOE940199
|
[0001] |
Hexagon screw
|
|
| 59. |
VOE952624
|
[0001] |
Clamp
|
SER NO 1222-
|
| 60. |
VOE13941906
|
[0001] |
Washer
|
SER NO 1222-
|
| 61. |
VOE13955781
|
[0001] |
Nut
|
SER NO 1222-
|
| 3. |
VOE4761622
|
[1] |
Cable harness
|
SER NO - 3280
|
| |
VOE4856644
|
[1] |
Cable harness
|
SER NO 3281 -
|
| 1. |
|
[0001] |
El Distr Unit
|
|
| |
VOE4851627
|
[1] |
Cable harness
|
PROD NO 33303
|
| 4. |
VOE943717
|
[1] |
Clamp
|
|
| 5. |
VOE940199
|
[1] |
Hexagon screw
|
|
| 6. |
VOE13941907
|
[1] |
Washer
|
|
| 7. |
|
[1] |
Sensor
|
TM PROD NO 33300,33307
|
| |
VOE4780337
|
[1] |
Sensor
|
TM PROD NO 33303,33308
|
| 8. |
VOE13945653
|
[1] |
Plane gasket
|
|
| 9. |
|
[1] |
Gear selector valve
|
SEE GROUP 41
|
| 10. |
|
[1] |
Connection
|
ERS AV 4803340
|
| 11. |
VOE13945653
|
[2] |
Plane gasket
|
|
| 2. |
VOE4854455
|
[0001] |
Cable harness
|
SER NO - 2600
|
| 12. |
VOE4803340
|
[1] |
Switch
|
TM
|
| 13. |
VOE4761623
|
[1] |
Cable harness
|
SER NO - 3280
|
| 14. |
VOE1577376
|
[0001] |
Relay
|
SER NO - 3280
|
| 15. |
VOE956074
|
[0002] |
Cross recessed screw
|
|
| |
|
|
None
|
SER NO 1167 - 3280
|
| 16. |
VOE941905
|
[0002] |
Spring washer
|
SER NO - 3280
|
| 17. |
VOE13940090
|
[0002] |
Washer
|
|
| |
|
|
None
|
SER NO - 3280
|
| 18. |
VOE971071
|
[0002] |
Hexagon nut
|
|
| 19. |
VOE465326
|
[0001] |
Bracket
|
|
| 20. |
|
[0001] |
Cable
|
|
| |
VOE4856594
|
[0001] |
Cable harness
|
SER NO 2601-
|
| 21. |
VOE7025971
|
[0001] |
Protection
|
SER NO - 3280
|
| 22. |
VOE241308
|
[0001] |
Protecting cap
|
SER NO - 3280
|
| 23. |
|
[0001] |
Starter element
|
SEE GROUP 21
|
| 24. |
|
[0001] |
Cable
|
|
| 25. |
|
[0001] |
Cable
|
|
| 26. |
VOE942767
|
[0002] |
Toothed washer
|
SER NO - 3280
|
| 27. |
VOE7017624
|
[0002] |
Hexagon nut
|
SER NO - 3280
|
| 28. |
VOE4761624
|
[0001] |
Cable harness
|
SER NO - 3280
|
| |
VOE4856732
|
[0001] |
Cable harness
|
SER NO 3281 -
|
| 29. |
|
[0001] |
Pressure indicator
|
SEE GROUP 24
|
| |
VOE4929271
|
[0001] |
Cable harness
|
PROD NO 33303
|
| 30. |
|
[0001] |
Pressure sensor
|
MO SEE GROUP 21
|
| 31. |
|
[0001] |
Temp.sensor
|
MO SEE GROUP 22
|
| 32. |
|
[0001] |
Alternator
|
|
| 33. |
|
[0001] |
Charging regulator
|
|
| 34. |
VOE4850254
|
[1] |
Cable harness
|
SER NO - 2936
|
| |
VOE4856678
|
|
None
|
SER NO 2937 -
|
| 35. |
VOE241308
|
[1] |
Protecting cap
|
|
| 36. |
|
[1] |
Starter motor
|
|
| 36A. |
VOE7025971
|
[1] |
Protection
|
SER NO 1032-
|
| 37. |
VOE11030013
|
[1] |
Gasket
|
|
