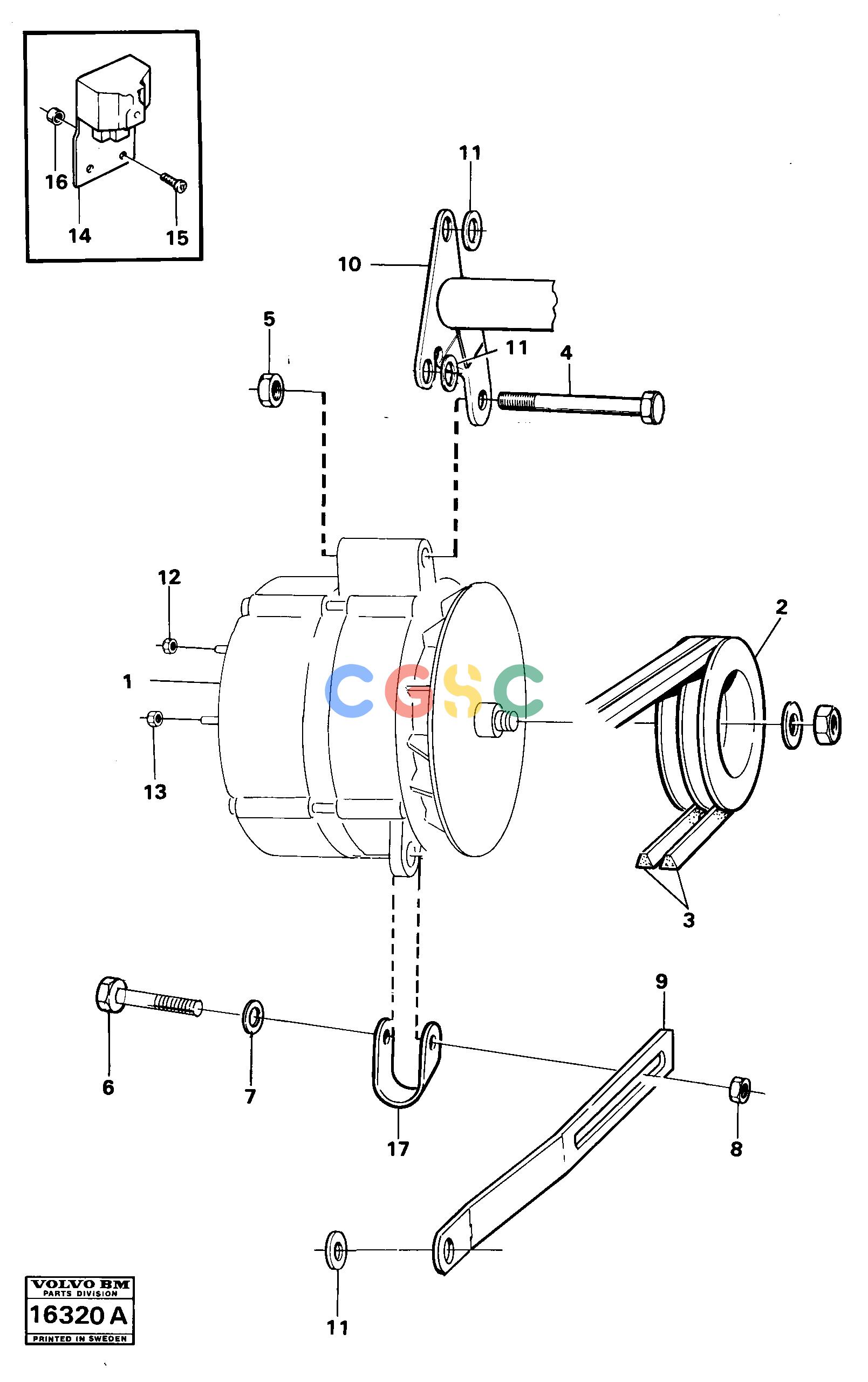

沃尔沃零件查询4500 Alternator with fitting parts4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4803774
|
[0001] |
Alternator
|
SER NO 4417 -
|
| |
|
|
None
|
|
| 2. |
VOE7420433
|
[0001] |
Pulley
|
SER NO -2600
|
| |
VOE822573
|
[0001] |
Pulley
|
SER NO 2601-
|
| 3. |
VOE978521
|
[0001] |
V-belt
|
SER NO - 2600
|
| 1. |
VOE1502372
|
[0001] |
Alternator
|
SER NO - 2952
|
| |
VOE966980
|
[0001] |
V-belt
|
SER NO 2601 -
|
| 5. |
VOE950355
|
[0001] |
Lock nut
|
|
| 6. |
VOE940186
|
[0001] |
Hexagon screw
|
SER NO - 2952
|
| |
VOE955299
|
[0001] |
Hexagon screw
|
SER NO 2953 -
|
| 7. |
VOE13955894
|
[0001] |
Washer
|
SER NO - 2952
|
| |
VOE13941907
|
[0001] |
Washer
|
SER NO 2953 -
|
| 8. |
VOE955826
|
[0001] |
Hexagon nut
|
|
| 9. |
VOE420427
|
[0001] |
Tensioner
|
SER NO - 2600
|
| |
|
[0001] |
Tensioner arm
|
SER NO 2601 -
|
| |
|
|
None
|
|
| |
|
|
None
|
|
| 10. |
VOE420431
|
[0001] |
Support plate
|
|
| 11. |
VOE13941907
|
[0003] |
Washer
|
|
| 12. |
VOE13963104
|
[0002] |
Lock nut
|
M 5
|
| |
VOE955780
|
[0002] |
Hexagon nut
|
SER NO 2953 -
|
| 13. |
VOE13963105
|
[0001] |
Lock nut
|
M 6
|
| |
VOE13955781
|
[0001] |
Nut
|
SER NO 2953 -
|
| 14. |
VOE4803292
|
[0001] |
Regulator
|
SER NO - 2952
|
| 15. |
VOE955268
|
[0002] |
Hexagon screw
|
SER NO - 2952
|
| 16. |
VOE13941906
|
[0002] |
Washer
|
SER NO - 2952
|
| 17. |
VOE466735
|
[0001] |
Brace
|
SER NO 2953 -
|
| |
VOE4803545
|
[0001] |
Alternator
|
SER NO 2953 - 4416
|
| |
|
|
None
|
|
