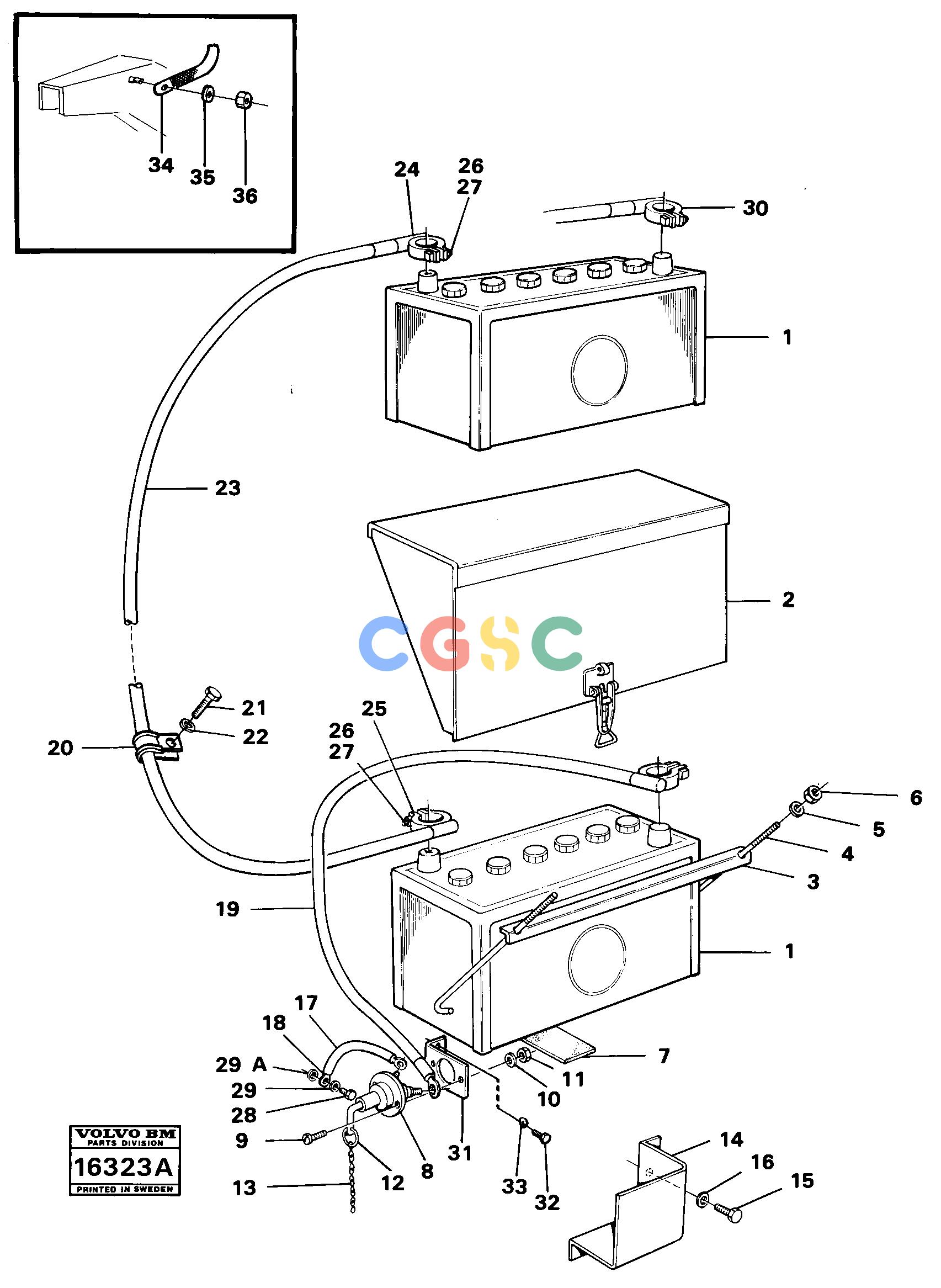

沃尔沃零件查询4500 Battery with assembling details4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4856148
|
[0004] |
Tensioning screw
|
|
| 5. |
VOE13940097
|
[0004] |
Washer
|
|
| |
|
|
None
|
SER NO -1249
|
| |
VOE976945
|
[4] |
Washer
|
|
| |
|
|
None
|
SER NO 1250-
|
| 6. |
VOE950354
|
[4] |
Lock nut
|
SER NO -1249
|
| |
VOE13971089
|
[4] |
Lock nut
|
|
| |
|
|
None
|
SER NO 1250-
|
| 7. |
VOE4933517
|
[4] |
Spacer
|
|
| 8. |
VOE7072306
|
[1] |
Switch
|
|
| |
VOE7072466
|
[0001] |
Key
|
|
| 1. |
|
[0002] |
Battery
|
|
| 9. |
VOE13955271
|
[0002] |
Screw
|
|
| 10. |
VOE13941906
|
[0002] |
Washer
|
|
| 11. |
VOE13955781
|
[0002] |
Nut
|
|
| 12. |
VOE4747089
|
[0002] |
Lock ring
|
|
| 13. |
VOE4880283
|
[0001] |
Chain
|
|
| 14. |
VOE4749335
|
[0001] |
Casing
|
|
| 15. |
VOE13955294
|
[0002] |
Screw
|
|
| 16. |
VOE13941907
|
[0002] |
Washer
|
|
| 17. |
VOE4850136
|
[0001] |
Battery cable
|
|
| 18. |
VOE954510
|
[2] |
Cable terminal
|
|
| 2. |
VOE4760358
|
[0001] |
Battery cover
|
H
|
| 19. |
|
[1] |
Cable
|
|
| 20. |
VOE942022
|
[2] |
Clamp
|
SER NO -1625
|
| |
VOE13949747
|
[2] |
Clamp
|
|
| 21. |
VOE940199
|
[2] |
Hexagon screw
|
|
| 22. |
VOE13941907
|
[2] |
Washer
|
|
| |
VOE4947420
|
[0001] |
Battery cable
|
|
| 23. |
|
[REQ] |
Cable
|
|
| 24. |
VOE14024615
|
[0001] |
Battery cable terminal
|
-
|
| 25. |
VOE14024614
|
[0001] |
Battery cable terminal
|
+
|
| 26. |
VOE13948795
|
[0002] |
Screw
|
|
| 27. |
VOE13948794
|
[0002] |
Nut
|
|
| |
VOE4760375
|
[0001] |
Battery cover
|
V
|
| 28. |
VOE13970944
|
[0001] |
Hexagon screw
|
|
| 29. |
VOE941908
|
[0001] |
Spring washer
|
|
| 29A. |
VOE955949
|
[0001] |
Toothed washer
|
SER NO 1032-
|
| 30. |
|
[0001] |
Cable
|
|
| 31. |
VOE4743032
|
[0001] |
Anchorage
|
|
| 32. |
VOE13955294
|
[0002] |
Screw
|
|
| 33. |
VOE13941907
|
[0002] |
Washer
|
|
| 34. |
VOE7190339
|
[0001] |
Cable
|
|
| 35. |
VOE13940109
|
[0002] |
Lock washer
|
|
| 36. |
VOE971071
|
[0002] |
Hexagon nut
|
|
| 3. |
VOE4974361
|
[0002] |
Tensioner
|
|
