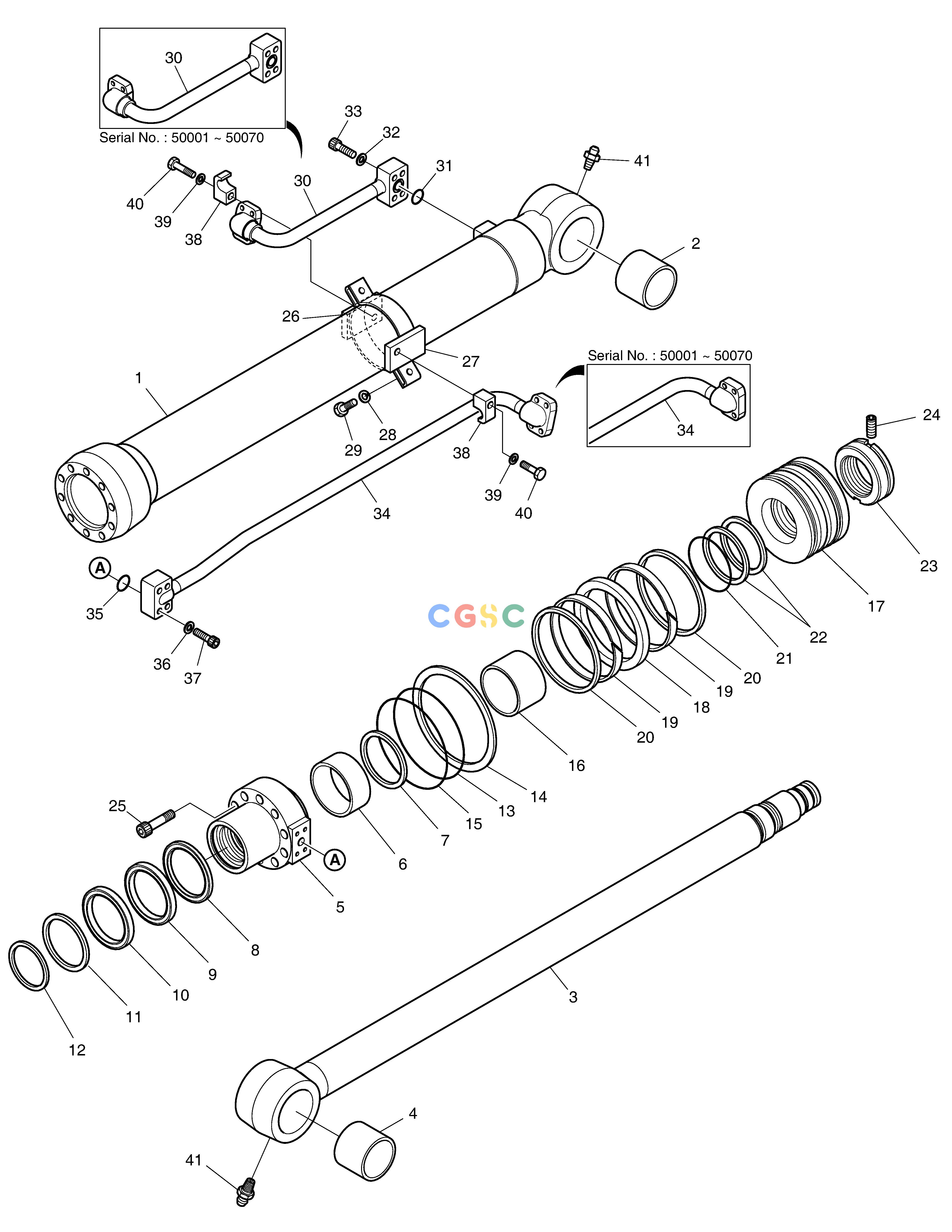

斗山零件查询BUCKET CYLINDER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9005434
|
[1] |
SEAL KIT
|
|
| -. |
K1024712
|
[1] |
CYLINDER;BUCKET
|
K1024712A
|
| -. |
K1024712A
|
[1] |
CYLINDER;BUCKET
|
K1024712B
|
| -. |
K1024712B
|
[1] |
CYLINDER;BUCKET
|
|
| 1. |
K9005416
|
[1] |
TUBE ASS'Y
|
|
| 10. |
K9005433
|
[1] |
RING;BACK UP
|
|
| 11. |
1.180-00479
|
[1] |
WIPER;DUST
|
|
| 12. |
K9001401
|
[1] |
RING;RETAINING
|
|
| 13. |
S8010951
|
[1] |
O-RING
|
|
| 14. |
1.180-00273
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011001
|
[1] |
. O-RING
|
|
| 16. |
K9005412
|
[1] |
RING;CUSHION
|
|
| 17. |
K9005424
|
[1] |
PISTON
|
|
| 18. |
K9005430
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
1.180-00413
|
[2] |
RING;WEAR
|
|
| 2. |
K1004106
|
[1] |
BUSH
|
|
| 20. |
K9001373
|
[2] |
RING,DUST
|
|
| 21. |
1.180-00116
|
[1] |
O-RING
|
|
| 22. |
1.180-00264
|
[2] |
RING;BACK UP
|
|
| 23. |
K9005429
|
[1] |
NUT;PISTON
|
|
| 24. |
S3523836
|
[1] |
SCREW;SET
|
|
| 25. |
S2218961
|
[10] |
BOLT
|
|
| 26. |
K9005427
|
[1] |
PIPE BAND ASS'Y-A
|
|
| 27. |
K9005428
|
[1] |
PIPE BAND ASS'Y-B
|
|
| 28. |
S5100603
|
[2] |
WASHER
|
|
| 29. |
S0558153
|
[2] |
BOLT
|
|
| 3. |
K9005413
|
[1] |
ROD ASS'Y
|
K9005413A
|
| 3. |
K9005413A
|
[1] |
ROD ASS'Y
|
|
| 30. |
K9005414
|
[1] |
PIPE ASS'Y-H
|
K9005414A
|
| 30. |
K9005414A
|
[1] |
PIPE ASS'Y-H
|
|
| 31. |
S8000201
|
[1] |
O-RING
|
|
| 32. |
S5100503
|
[4] |
WASHER
|
|
| 33. |
S2209561
|
[4] |
BOLT;SOCKET M8X1.25X45
|
|
| 34. |
K9005415
|
[1] |
PIPE ASS'Y-R
|
K9005415A
|
| 34. |
K9005415A
|
[1] |
PIPE ASS'Y-R
|
|
| 35. |
S8000201
|
[1] |
O-RING
|
|
| 36. |
S5100503
|
[4] |
WASHER
|
|
| 37. |
S2209561
|
[4] |
BOLT;SOCKET M8X1.25X45
|
|
| 38. |
K9001435
|
[2] |
CLAMP;PIPE
|
|
| 39. |
S5100603
|
[2] |
WASHER
|
|
| 4. |
110-00245
|
[1] |
BUSHING
|
K1004106
|
| 4. |
K1004106
|
[1] |
BUSH
|
|
| 40. |
S0512553
|
[2] |
BOLT M10X1.5X45
|
|
| 41. |
S6710032
|
[2] |
NIPPLE;GREASE
|
|
| 5. |
K9005423
|
[1] |
COVER;ROD
|
|
| 6. |
1.110-00067
|
[1] |
BUSH-DU
|
|
| 7. |
115-00104
|
[1] |
RING,RETAINING
|
|
| 8. |
K9005432
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9005431
|
[1] |
U-PACKING
|
|
