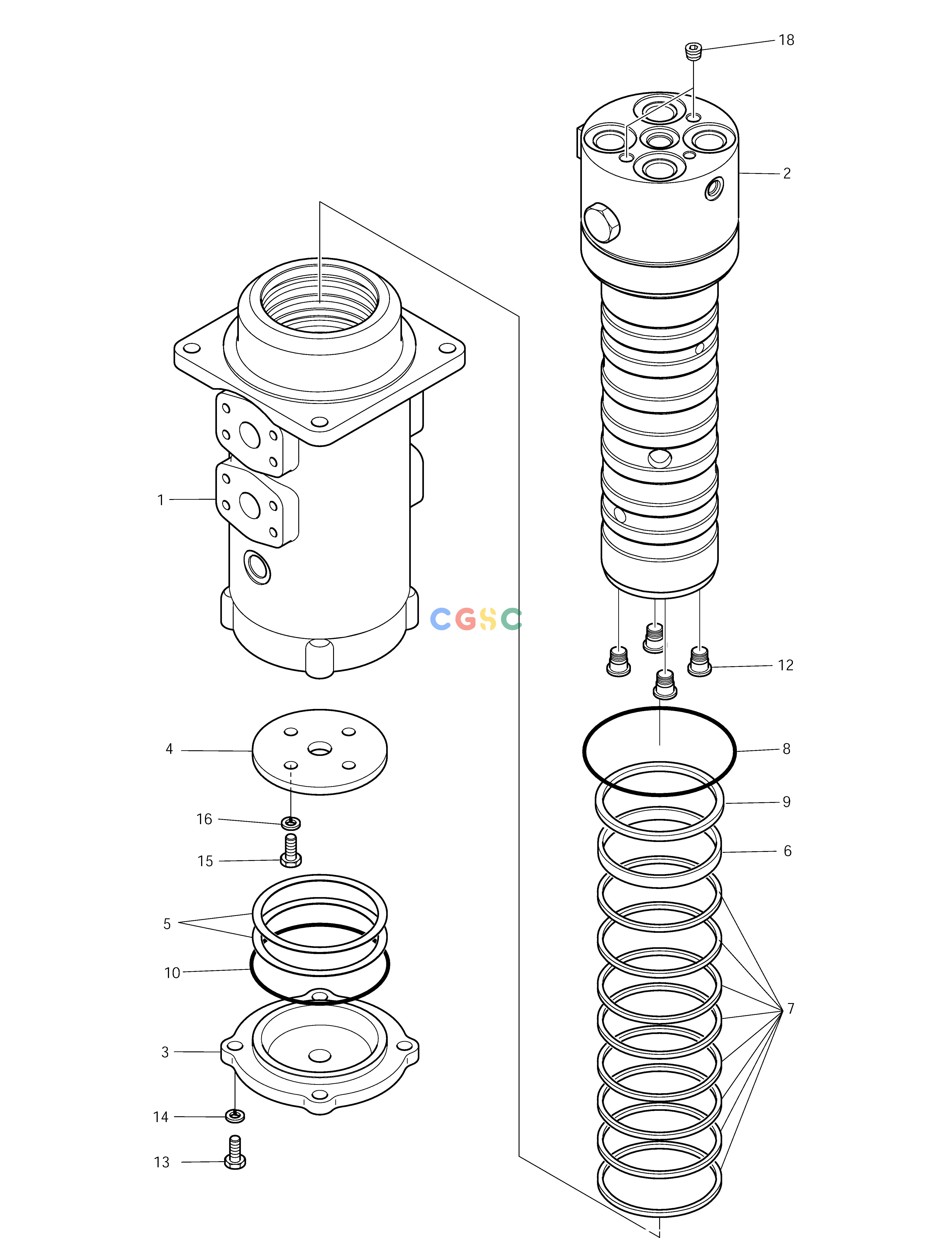

斗山零件查询CENTER JOINT - DOZER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1029 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9005490
|
[1] |
SEAL KIT;CENTER JOINT
|
|
| -. |
K1011859A
|
[1] |
CENTER JOINT
|
|
| 1. |
K1024668
|
[1] |
HUB
|
|
| 10. |
S8011201
|
[1] |
O-RING
|
|
| 12. |
NA00843
|
[4] |
PLUG
|
|
| 13. |
S0515253
|
[4] |
. BOLT
|
|
| 14. |
S5102703
|
[4] |
WASHER
|
|
| 15. |
S0512053
|
[4] |
BOLT
|
|
| 16. |
S5102603
|
[4] |
. WASHER
|
|
| 18. |
NA00843
|
[2] |
PLUG
|
|
| 2. |
K1024669A
|
[1] |
SPINDLE
|
|
| 3. |
482-00003
|
[1] |
COVER
|
|
| 4. |
114-00583
|
[1] |
SPACER
|
|
| 5. |
114-00584
|
[2] |
SHIM
|
|
| 6. |
NA00993
|
[1] |
RING;WEAR
|
|
| 7. |
NA01100
|
[8] |
. SEAL,SLIPPER
|
|
| 8. |
S8001200
|
[1] |
O-RING
|
|
| 9. |
S8001001
|
[1] |
O-RING
|
|
