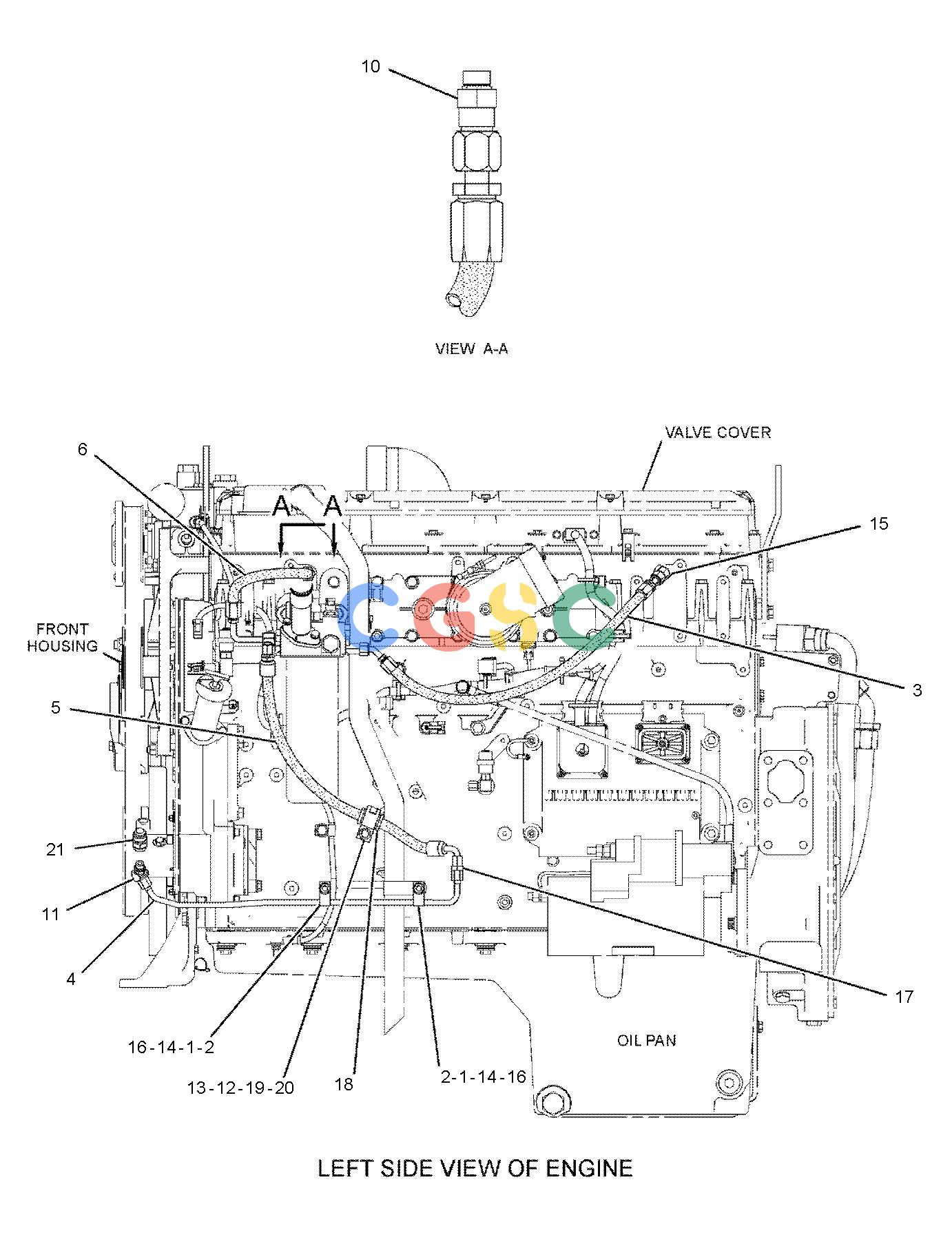

卡特零件查询（725） 240-2632: LINES GP-FUEL
广数供应链运营团队, 14 02月, 2025，浏览：
823 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7C-8246 | [2] | SPACER(10.5X20X24-MM THK) | |
| 2. | 116-5416I | [1] | HOSE AS | |
| 3. | 175-9079M | [1] | ROD-LINK | |
| 4. | 191-0785I | [1] | HOSE AS | |
| 5. | 220-8701I | [1] | HOSE AS | |
| 6. | 244-1420 | [1] | TUBE AS | |
| 7. | 030-7942 | [1] | ELBOW | |
| 8. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 9. | 2R-6806 | [1] | CONNECTOR | |
| 10. | 3J-1907 | [2] | SEAL-O-RING | |
| 11. | 3K-0360 | [1] | SEAL-O-RING | |
| 12. | 6V-5839 | [2] | WASHER(11X21X2.5-MM THK) | |
| 13. | 6V-5842M | [1] | BOLT(M10X1.5X40-MM) | |
| 14. | 7H-7055 | [2] | CLIP | |
| 15. | 7K-4129 | [1] | UNION-FLARED | |
| 16. | 9X-6650 | [1] | CONNECTOR-O-RING | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
