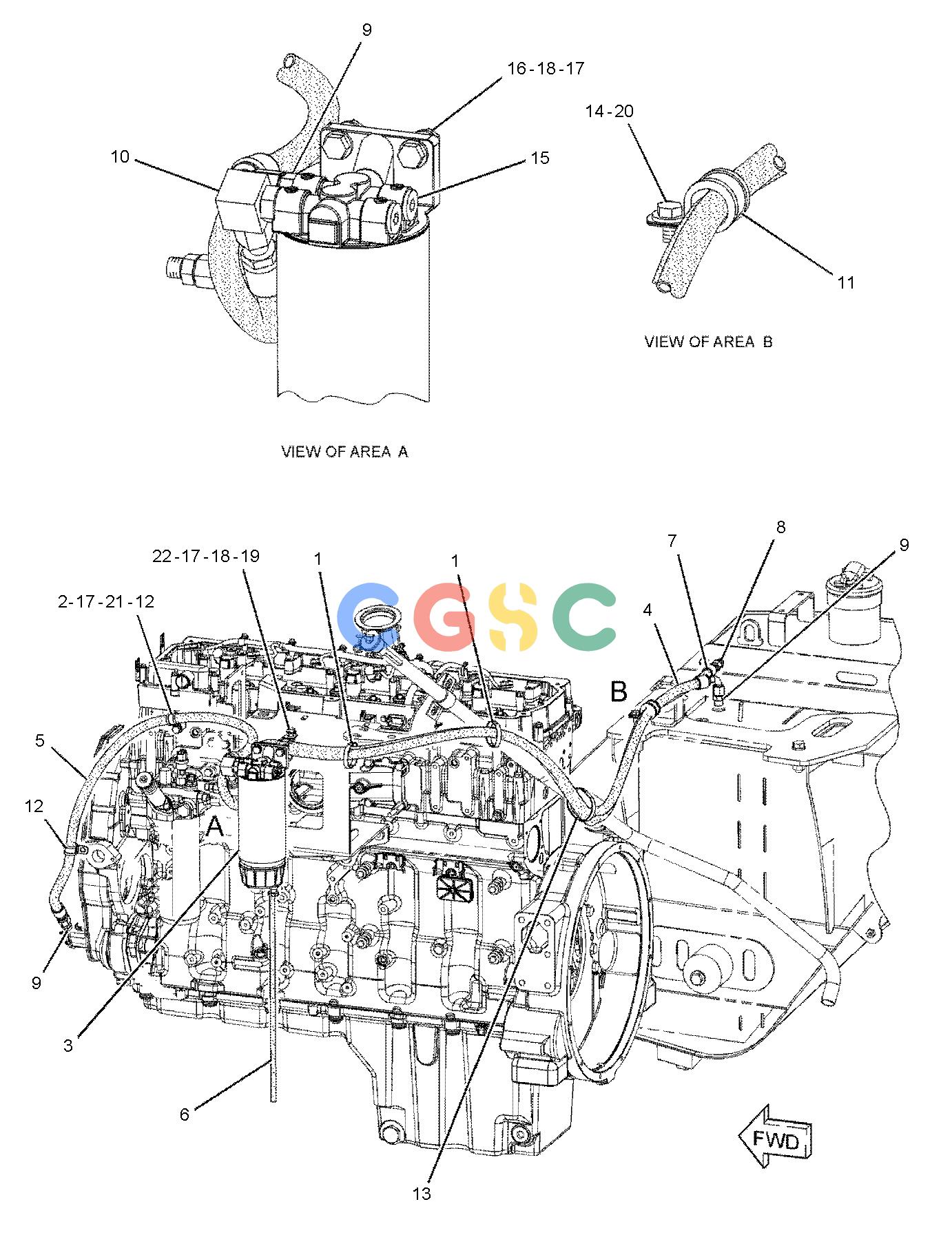

卡特零件查询（725） 242-1767: LINES GP-FUEL
广数供应链运营团队, 14 02月, 2025，浏览：
192 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [2] | STRAP | |
| 2. | 151-6730 | [1] | SPACER(11X25X55-MM THK) | |
| 3. | 133-5671Y | [1] | FILTER GP-WATER SEP & FUEL(PRIMARY) | |
| 4. | 145-6127I | [1] | HOSE AS | |
| 5. | 194-0530I | [1] | HOSE AS | |
| 6. | 203-2107 | [1] | HOSE | |
| 7. | 204-9221I | [1] | HOSE AS | |
| 8. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 9. | 148-8340 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 10. | 148-8364 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 11. | 2U-2749 | [2] | CLIP | |
| 12. | 3U-2754 | [2] | CLIP | |
| 13. | 6U-0456 | [1] | STRAP | |
| 14. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 15. | 8S-0023 | [1] | CLIP(SLOT) | |
| 16. | 8S-0024 | [1] | CLIP(TAB) | |
| 17. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 18. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 19. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 20. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 21. | 8T-5005M | [1] | BOLT(M10X1.5X70-MM) | |
| 22. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 23. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 24. | 148-8395 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
