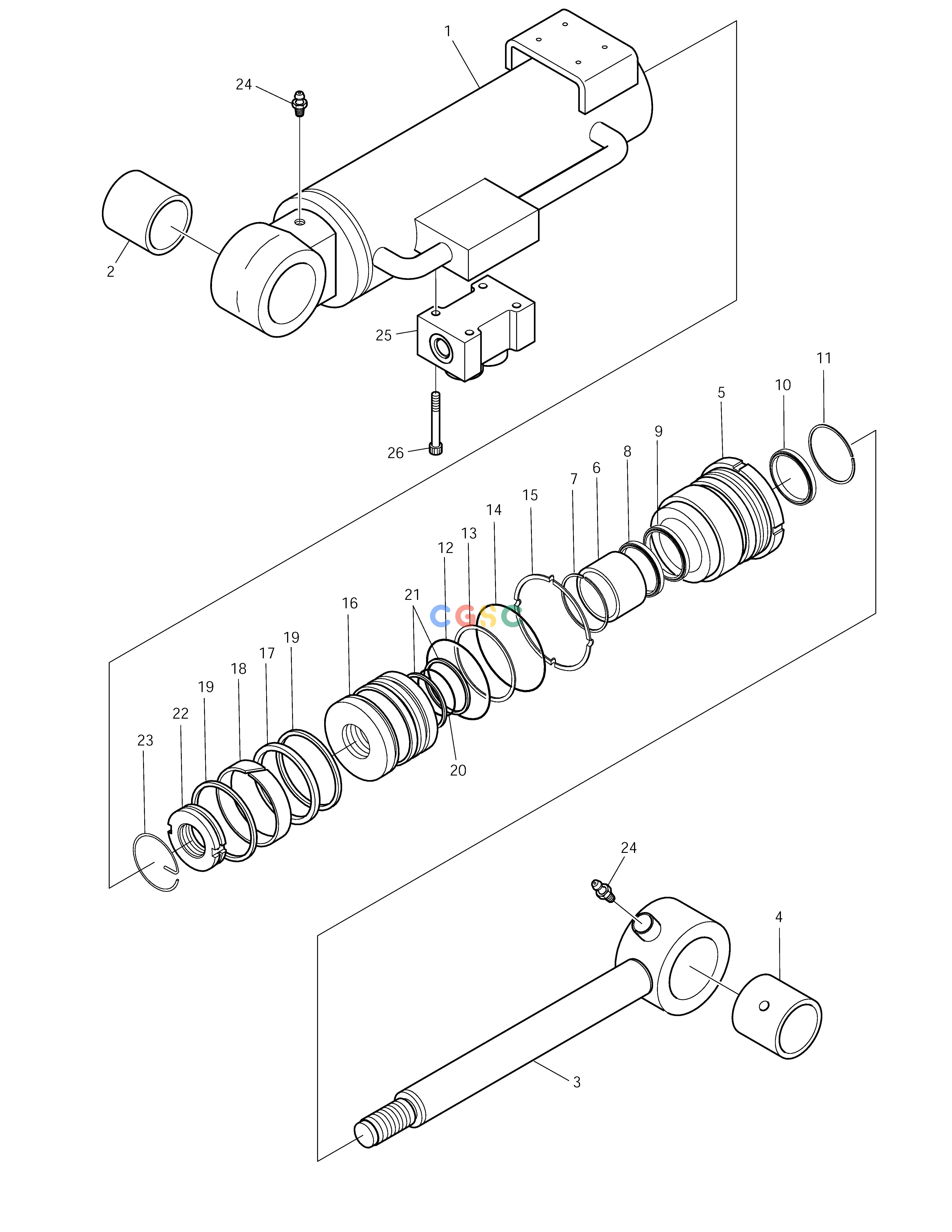

斗山零件查询DOZER CYLINDER - R.H DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
268 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9164K
|
[1] |
SEAL KIT;DOZER CYL.
|
|
| -. |
K1018309
|
[1] |
CYLINDER;DOZER(R.H)
|
|
| 1. |
308-00019
|
[1] |
TUBE ASS'Y
|
|
| 10. |
115-00107
|
[1] |
WIPER;DUST
|
|
| 11. |
115-00104
|
[1] |
RING,RETAINING
|
|
| 12. |
S8010951
|
[1] |
O-RING
|
|
| 13. |
180-00312
|
[1] |
RING;BACK UP
|
|
| 14. |
S8011001
|
[1] |
. O-RING
|
|
| 15. |
114-00311
|
[1] |
WASHER
|
|
| 16. |
409-00028
|
[1] |
PISTON
|
|
| 17. |
180-00314
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
K9001372
|
[1] |
RING;WEAR
|
|
| 19. |
115-00101
|
[2] |
RING;DUST
|
|
| 2. |
110-00115
|
[1] |
BUSH;STEEL
|
|
| 20. |
S8010601
|
[1] |
O-RING 1BG-60
|
|
| 21. |
180-00315
|
[2] |
RING;BACK UP
|
|
| 22. |
1.121-00104
|
[1] |
NUT;PISTON
|
|
| 23. |
1.115-00395
|
[1] |
RING;LOCK
|
|
| 24. |
S6710032
|
[2] |
NIPPLE;GREASE
|
|
| 25. |
2426-9021C
|
[1] |
VALVE;CHECK
|
|
| 26. |
S2212971
|
[4] |
BOLT
|
|
| 3. |
454-00023
|
[1] |
ROD ASS'Y
|
|
| 4. |
110-00115
|
[1] |
BUSH;STEEL
|
|
| 5. |
621-00951
|
[1] |
COVER;ROD
|
|
| 6. |
110-00114
|
[1] |
BUSH;DU
|
|
| 7. |
1.115-00394
|
[1] |
RING;RETAINING
|
|
| 8. |
180-00313
|
[1] |
SEAL;STEP
|
|
| 9. |
1.180-00632
|
[1] |
U-PACKING
|
|
