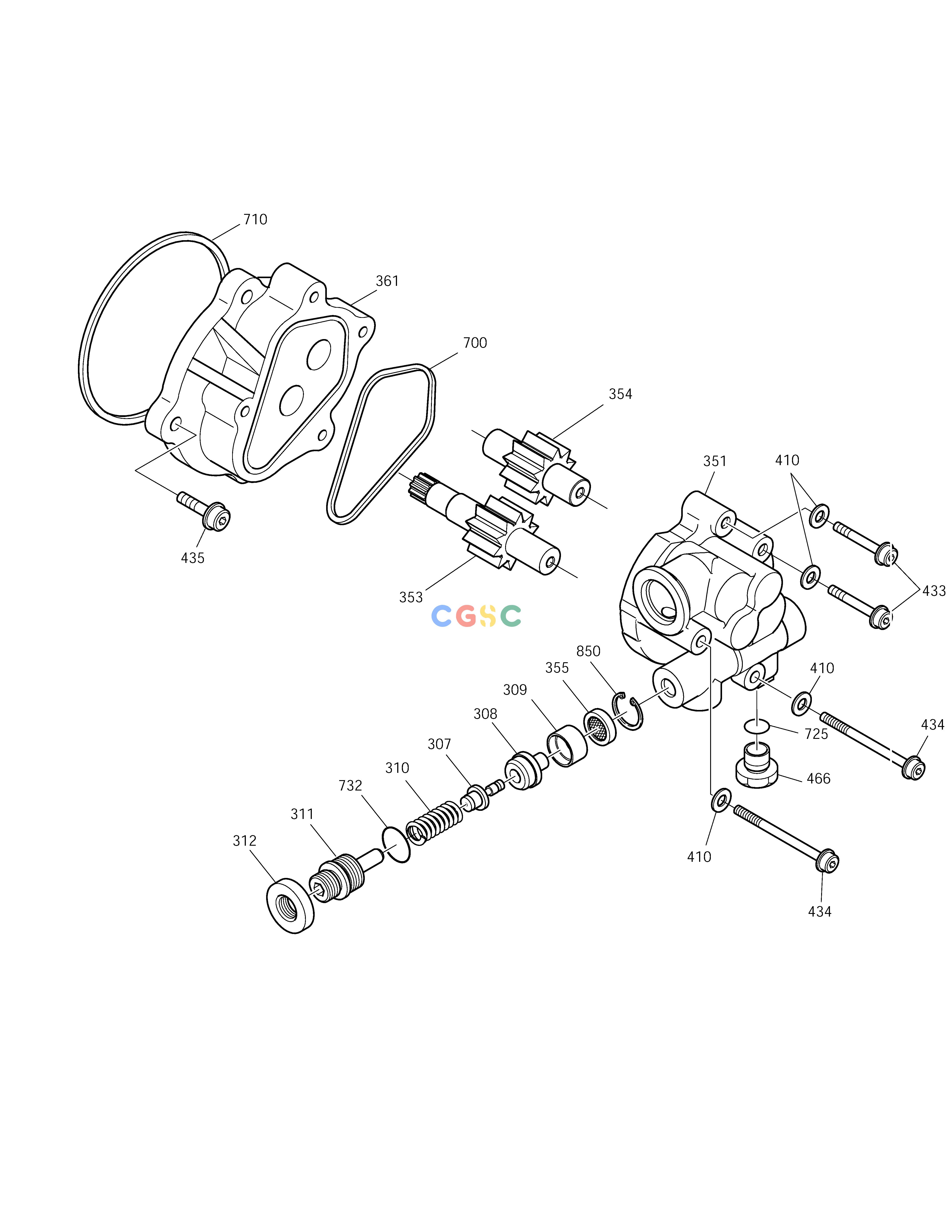

斗山零件查询GEAR PUMP DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9005450
|
[1] |
SEAL KIT;GEAR PUMP
|
|
| -. |
K9005449
|
[1] |
PUMP;GEAR
|
|
| 307. |
1.426-00005
|
[1] |
POPPET
|
|
| 308. |
1.427-00002
|
[1] |
SEAT
|
|
| 309. |
411-00017
|
[1] |
RING
|
|
| 310. |
129-00045
|
[1] |
SPRING
|
|
| 311. |
120-00131
|
[1] |
SCREW;ADJUSTING
|
|
| 312. |
121-00038
|
[1] |
NUT;LOCK
|
|
| 351. |
1.402-00024
|
[1] |
CASE;GEAR
|
|
| 353. |
1.403-00037
|
[1] |
GEAR;DRIVE
|
|
| 354. |
1.403-00040
|
[1] |
GEAR;DRIVEN
|
|
| 355. |
471-00030
|
[1] |
FILTER
|
|
| 361. |
1.402-00014
|
[1] |
CASE;FRONT
|
|
| 410. |
S5102503
|
[4] |
. WASHER
|
|
| 433. |
S2209661
|
[2] |
BOLT
|
|
| 434. |
S2209961
|
[2] |
BOLT;SOCKET
|
|
| 435. |
181-00574
|
[4] |
BOLT;SOCKET
|
|
| 466. |
2181-1950D1
|
[1] |
PLUG
|
|
| 700. |
115-00043
|
[1] |
RING
|
|
| 710. |
S8010851
|
[1] |
O-RING
|
|
| 725. |
S8000111
|
[1] |
O-RING
|
|
| 732. |
S8000161
|
[1] |
O-RING
|
|
| 850. |
S6510180
|
[1] |
RING;SNAP
|
|
