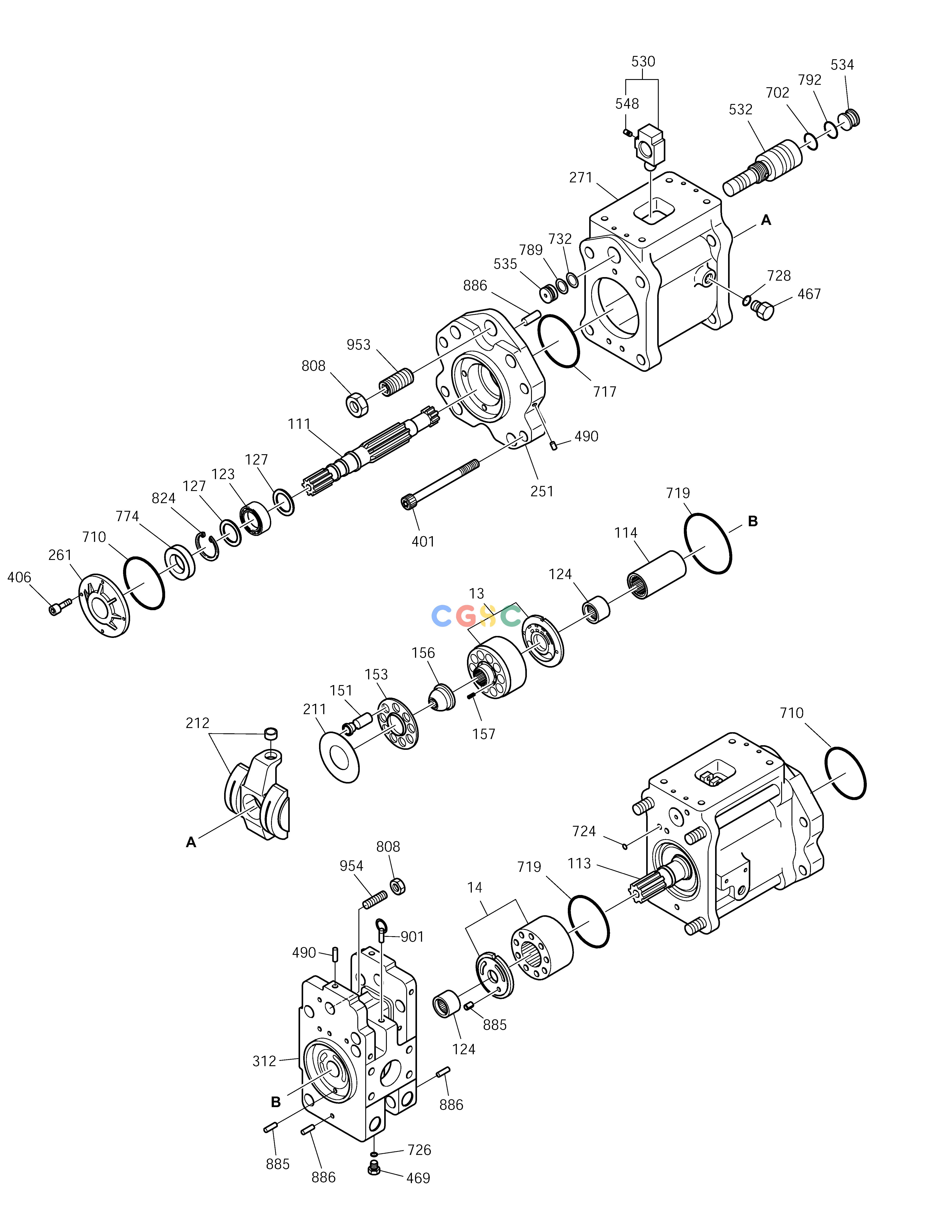

斗山零件查询MAIN PUMP DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
193 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2401-9236AKT
|
[1] |
SEAL KIT;PUMP
|
|
| -. |
K1024107A
|
[1] |
MAIN PUMP
|
|
| 111. |
K9005440
|
[1] |
SHAFT;DRIVE(FRONT)
|
|
| 113. |
K9005441
|
[1] |
SHAFT;DRIVE(REAR)
|
|
| 114. |
414-00039
|
[1] |
COUPLING;SPLINE
|
|
| 123. |
1.109-00075
|
[2] |
BEARING;ROLLER
|
|
| 124. |
1.109-00048
|
[2] |
BEARING;NEEDLE
|
|
| 127. |
114-00343
|
[4] |
SPACER;BEARING
|
|
| 13. |
410-00009
|
[1] |
CYLINDER BLOCK ASS`Y(R.H)
|
|
| 14. |
410-00010
|
[1] |
CYLINDER BLOCK ASS`Y(L.H)
|
|
| 151. |
K9005444
|
[2] |
PISTON & SHOE ASS'Y
|
|
| 153. |
K9005451
|
[2] |
PLATE;PUSH
|
|
| 156. |
K9005443
|
[2] |
BUSH;SPHERICAL
|
|
| 157. |
K9005442
|
[18] |
SPRING;CYLINDER
|
|
| 211. |
1.412-00104
|
[2] |
PLATE;SHOE
|
|
| 212. |
K9005446
|
[2] |
SWASH PLATE ASS'Y
|
|
| 251. |
1.197-00012
|
[2] |
SUPPORT;SWASH
|
|
| 261. |
462-00025
|
[1] |
COVER;SEAL(F)
|
|
| 271. |
1.402-00089
|
[2] |
CASING;PUMP
|
|
| 312. |
1.451-00084
|
[1] |
BLOCK;VALVE
|
|
| 401. |
120-00188
|
[8] |
BOLT;SOCKET
|
|
| 406. |
S2204663
|
[4] |
BOLT M6X1.0X16
|
|
| 467. |
2181-1950D3
|
[3] |
PLUG
|
|
| 469. |
1.181-00146
|
[2] |
PLUG;VP
|
|
| 490. |
181-00519
|
[15] |
PLUG
|
|
| 530. |
K9005445
|
[2] |
TILTING PIN ASS`Y
|
|
| 532. |
409-00044
|
[2] |
PISTON;SERVO
|
|
| 534. |
416-00010
|
[2] |
STOPPER(L)
|
|
| 535. |
416-00011
|
[2] |
STOPPER(R)
|
|
| 548. |
1.123-00006
|
[2] |
PIN
|
|
| 702. |
S8010305
|
[2] |
O-RING 4DG-30
|
|
| 710. |
S8010855
|
[2] |
O-RING 1BG-85
|
|
| 717. |
S8011201
|
[2] |
O-RING
|
|
| 719. |
S8011151
|
[2] |
O-RING
|
|
| 724. |
S8000081
|
[16] |
O-RING
|
|
| 726. |
S8000111
|
[2] |
O-RING
|
|
| 728. |
S8000181
|
[3] |
O-RING
|
|
| 732. |
S8000165
|
[2] |
O-RING
|
|
| 774. |
180-00383
|
[1] |
SEAL;OIL
|
|
| 789. |
S8060161
|
[2] |
RING;BACK-UP
|
|
| 792. |
S8060301
|
[2] |
RING;BACK-UP
|
|
| 808. |
S4012933
|
[4] |
NUT
|
|
| 824. |
S6500350
|
[2] |
RING;SNAP
|
|
| 885. |
S5710881
|
[2] |
PIN
|
|
| 886. |
S5740870
|
[4] |
PIN,SPRING
|
|
| 901. |
S3140025
|
[2] |
BOLT,EYE
|
|
| 953. |
S3527808
|
[2] |
SCREW,SET
|
|
| 954. |
120-00187
|
[2] |
SCREW;ADJUST
|
|
