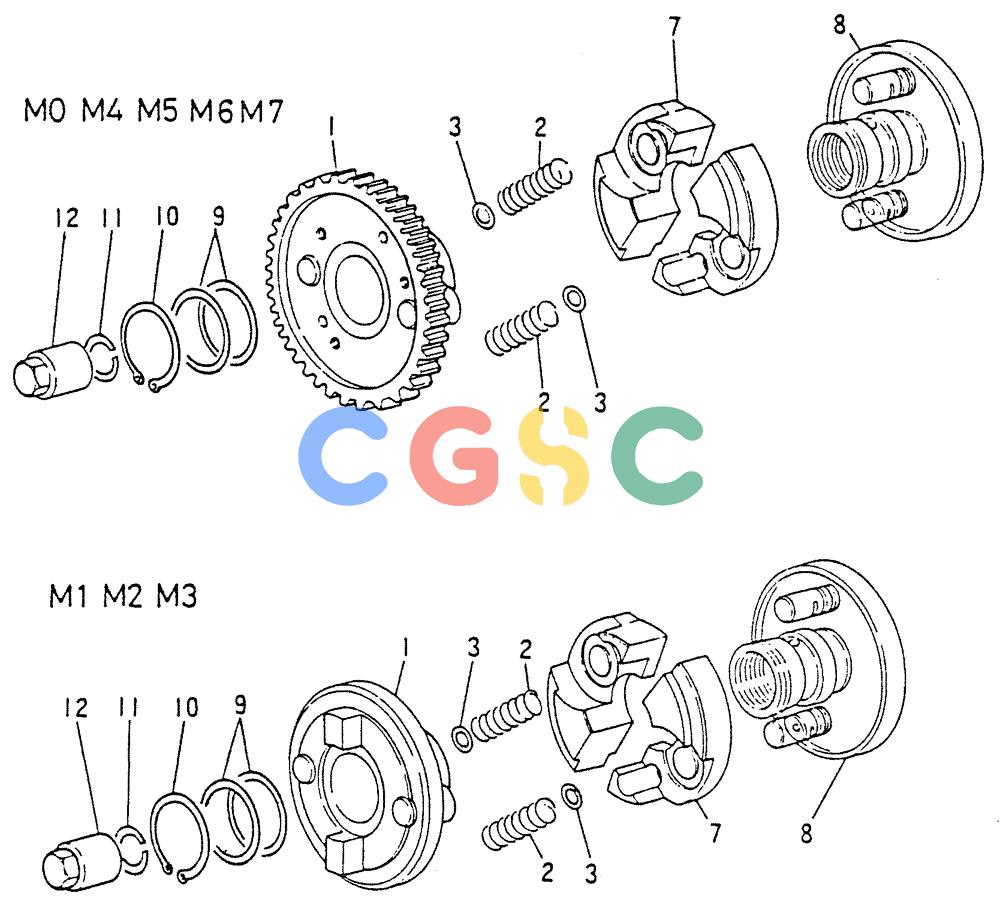

神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINES - K907D & K907LC EXCAVATORS (1/86-12/06) (03-011) - AUTOMATIC TIMER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
312 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-12. | VAME036909 | [1] | AUTOMATIC TIMER ASSY SBZ TYPE,FOR M0 ONLY | |
| 1-12. | VAME036936 | [1] | SBZ TYPE,FOR M1 ONLY | |
| 1-12. | VAME032978 | [1] | SBZ TYPE,FOR M2 ONLY | |
| 1-12. | VAME032899 | [1] | AUTOMATIC T SBZ TYPE,FOR M3 ONLY | AUTOMATIC T SBZ TYPE,FOR M3 ONLY |
| 1-12. | VAME032976 | [1] | SBZ TYPE,FOR M4 ONLY | |
| 1-12. | VAME032828 | [1] | SBZ TYPE ,FOR M5 ONLY | |
| 1-12. | VAME032816 | [1] | SBZ TYPE,FOR M6 ONLY | |
| 1-12. | VAME716987 | [1] | SBZ TYPE,FOR M7 ONLY | |
| 1. | VAME705076 | [1] | GEAR,FOR M0,M4,M5,M6,M7 ONLY | |
| 1. | VAME717614 | [1] | FLANGE,FOR M1,M2,M3 ONLY | |
| 2. | VAME705077 | [1] | SPRING,TIMER.FOR M0,M1 ONLY | |
| 2. | VAME716624 | [2] | SPRING,TIMER,FOR M2,M4 ONLY | |
| 2. | VAME716560 | [2] | SPRING,TIMER,FOR M3 ONLY | |
| 2. | VAME716561 | [1] | OR,FOR M3 ONLY | |
| 2. | VAME716562 | [1] | OR,FOR M3 ONLY | |
| 2. | VAME716671 | [2] | SPRING,TIMER,FOR M5 ONLY | |
| 2. | VAME717693 | [2] | SPRING,TIMER,FOR M5 ONLY | |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING,TIMER,FOR M5 ONLY |
| 3. | VAME705363 | [1] | SHIM T = 0.1 | |
| 3. | VAME705364 | [1] | SHIM T = 0.2 | |
| 3. | VAME705365 | [1] | SHIM T = 0.3 | |
| 3. | VAME705366 | [1] | SHIM T = 0.5 | |
| 3. | VAME705367 | [1] | SHIM T = 0.6 | |
| 3. | VAME705368 | [1] | SHIM T = 1.0 | |
| 7. | VAME717619 | [2] | FLYWEIGHT,FOR M0,M1 ONLY | |
| 7. | VAME716625 | [2] | FLYWEIGHT,FOR M2,M4 ONLY | |
| 7. | VAME716563 | [2] | FLYWEIGHT,FOR M3 ONLY | |
| 7. | VAME717694 | [2] | FLYWEIGHT,FOR M5,M6,M7 ONLY | |
| 8. | VAME705096 | [1] | HOLDER,FLYWEIGHT,FOR M0,M5,M6 ONLY | |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER,FLYWEIGHT,FOR M1 ONLY |
| 8. | VAME716626 | [1] | HOLDER,FLYWEIGHT,FOR M2,M4 ONLY | |
| 8. | VAME716564 | [1] | HOLDER,FLYWEIGHT,FOR M3 ONLY | |
| 9. | VAME705369 | [1] | SHIM T=0.6 | |
| 9. | VAME705370 | [1] | SHIM T = 0.7 | |
| 9. | VAME705371 | [1] | SHIM T = 0.8 | |
| 9. | VAME705372 | [1] | SHIM T = 0.9 | |
| 9. | VAME705373 | [1] | SHIM T = 1.0 | |
| 9. | VAME705374 | [1] | SHIM T = 1.1 | |
| 10. | VAME705375 | [1] | RING,SNAP | |
| 11. | VAME705376 | [1] | WASHER,SPG | |
| 12. | VAME705078 | [1] | NUT | |
