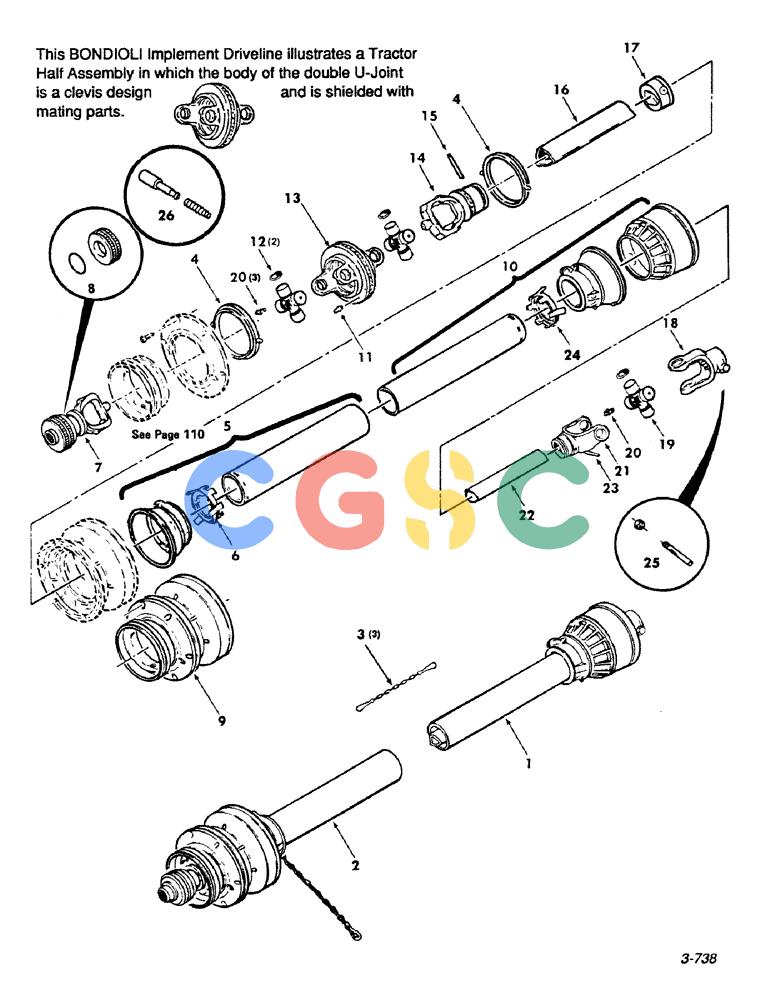

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (018) - IMPLEMENT DRIVELINE, 540 PTO, BONDIOLI, REFER TO PAGE 16 FOR DRIVELINE IDENTIFICATION Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
580 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700709855
|
[1] |
PTO
|
CAS
Implement Half Assembly
|
| 2. |
700709854
|
[1] |
PTO
|
CAS
Tractor Half Assembly Superseded by part number: 87526444
|
| 3. |
700707183
|
[3] |
CHAIN (AG)
|
CAS
Chain - Safety Superseded by part number: 87586692
|
| 4. |
700709047
|
[1] |
SHIELD
|
CAS
Ring - Bearing (Set of Two) Superseded by part number: 84036379
|
| 5. |
700709856
|
[1] |
SHIELD
|
HFI
Assembly (Less CV)
|
| 6. |
700709189
|
[1] |
SNAP RING
|
CAS
Bearing - Shield, Outer Superseded by part number: 9806312
|
| 7. |
700709040
|
[1] |
FORK
|
CAS
Yoke Assembly - Tractor Superseded by part number: 87461439
|
| 8. |
700707181
|
[1] |
COLLAR
|
CAS
- and Snap Ring Superseded by part number: 9805371
|
| 9. |
700709053
|
[1] |
CONE
|
CAS
Shield - CV Superseded by part number: 84004291
|
| 10. |
700709858
|
[1] |
SHIELD
|
CAS
- Assembly - Implement
|
| 11. |
700707187
|
[1] |
NIPPLE, LUBE
|
CAS
Zerk
|
| 12. |
700709041
|
[2] |
CROSS
|
CAS
Journal Repair Kit Superseded by part number: 84004283
|
| 13. |
700709042
|
[1] |
BODY
|
CAS
- CV Superseded by part number: 03266058
|
| 14. |
700709851
|
[1] |
FORK
|
CAS
Yoke
|
| 15. |
763847
|
[1] |
PIN
|
CAS
- Spring
|
| 16. |
700709852
|
[1] |
TUBE
|
CAS
- Drive, Outer
|
| 17. |
700707175
|
[1] |
NUT
|
CAS
Collar - Grease
|
| 18. |
700709853
|
[1] |
FORK
|
CAS
Yoke - Implement
|
| 19. |
700707171
|
[1] |
CROSS
|
CAS
Journal Repair Kit Superseded by part number: 84004289
|
| 20. |
700707193
|
[3] |
NIPPLE, LUBE
|
CAS
Zerk Superseded by part number: 150024
|
| 21. |
700707172
|
[1] |
TUBE
|
CAS
Yoke - Tube, Inner Superseded by part number: 84004288
|
| 22. |
700707173
|
[1] |
TUBE
|
CAS
- Drive, Inner
|
| 23. |
700707194
|
[1] |
PIN
|
CAS
- Spring Superseded by part number: 84036368
|
| 24. |
700707188
|
[1] |
INNER SHIELD
|
CAS
Bearing - Shield, Inner Superseded by part number: 84036377
|
| 25. |
700709860
|
[1] |
PIN
|
CAS
- Special, Yoke Superseded by part number: 700714385
|
| 26. |
700708790
|
[1] |
KIT
|
IH
Push Pin and Spring Superseded by part number: 782083
|
