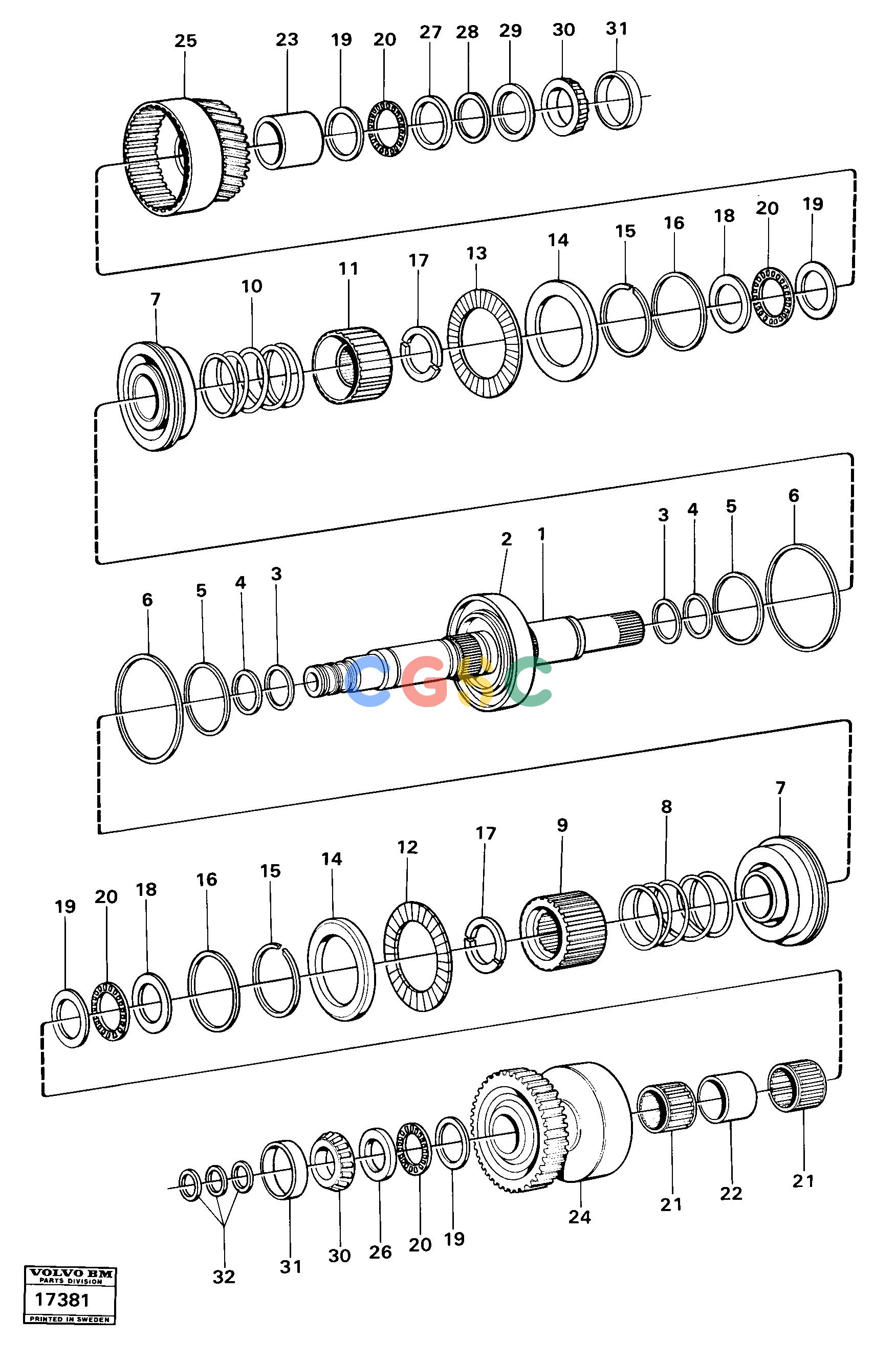

沃尔沃零件查询4500 Clutches 1:st and 2:nd speeds Tillv Nr 2601-4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4871048
|
[0002] |
Piston ring
|
|
| 5. |
VOE4720798
|
[0002] |
Piston ring
|
|
| 6. |
VOE4720800
|
[0002] |
Piston ring
|
|
| 7. |
VOE4720801
|
[0002] |
Piston
|
|
| 8. |
VOE4871532
|
[0001] |
Spring
|
|
| |
VOE4873030
|
[0001] |
Hydraulic clutch
|
|
| 9. |
VOE4871692
|
[0001] |
Clutch Hub
|
|
| |
|
|
None
|
PROD NO 30819 HT 130
|
| 10. |
VOE4871533
|
[0001] |
Spring
|
|
| 11. |
VOE4871104
|
[0001] |
Clutch hub
|
|
| 12. |
VOE4873015
|
[0019] |
Friction disc
|
|
| 13. |
VOE4720763
|
[0019] |
Steel disc
|
|
| 14. |
VOE11037145
|
[0002] |
Pressure plate
|
|
| 15. |
VOE4786526
|
[0002] |
Lock ring
|
|
| 16. |
VOE4786536
|
[0002] |
Lock ring
|
|
| 17. |
VOE4871337
|
[0002] |
Retainer
|
|
| 18. |
VOE4880972
|
[0002] |
Thrust washer
|
|
| 1. |
VOE11036109
|
[0001] |
Clutch shaft
|
|
| 19. |
VOE4871338
|
[0004] |
Thrust washer
|
|
| 20. |
VOE4785772
|
[0004] |
Needle bearing
|
|
| 21. |
VOE4785782
|
[0002] |
Needle holder
|
|
| 22. |
VOE4718468
|
[0001] |
Spacer sleeve
|
|
| 23. |
VOE11144006
|
[0001] |
Needle bearing
|
|
| 24. |
VOE4720773
|
[0001] |
Gear
|
|
| 25. |
VOE4720774
|
[0001] |
Gear
|
|
| 26. |
VOE4718008
|
[0001] |
Washer
|
|
| 27. |
VOE15175558
|
[0001] |
Thrust washer
|
|
| 28. |
VOE13947902
|
[0001] |
Lock ring
|
|
| 2. |
VOE11036107
|
[0001] |
Partition wall
|
|
| 29. |
VOE4718931
|
[0001] |
Retainer
|
|
| 30. |
VOE183824
|
[0002] |
Roller bearing
|
|
| 31. |
VOE183824
|
[0002] |
Roller bearing
|
|
| 32. |
VOE4720797
|
[0003] |
Piston ring
|
|
| |
VOE6630850
|
[0001] |
Overhaul kit
|
|
| 3. |
VOE4786535
|
[0002] |
Lock ring
|
|
