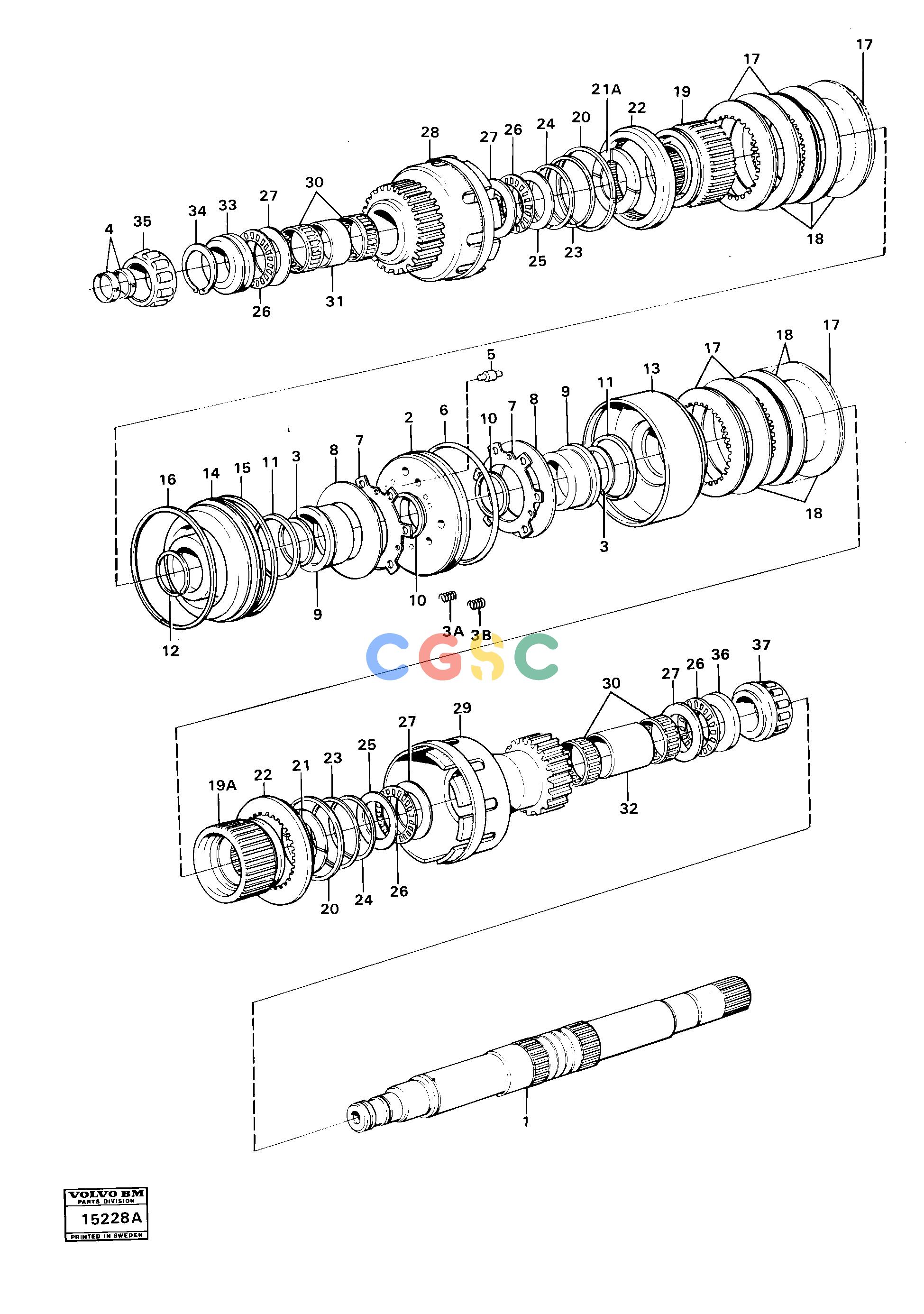

沃尔沃零件查询4500 Clutches 3:rd and 4:th speeds45004719928-4871300NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
713 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4720156
|
[0001] |
Clutch shaft
|
|
| 32. |
VOE4718149
|
[1] |
Spacer ring
|
|
| |
VOE4871035
|
|
Spacer sleeve
|
|
| 33. |
VOE17433093
|
|
Thrust washer
|
|
| 34. |
VOE914472
|
[1] |
Snap ring
|
|
| 35. |
VOE184434
|
[1] |
Cone
|
|
| |
VOE183356
|
[1] |
Cup
|
|
| 36. |
VOE4718008
|
[1] |
Washer
|
|
| 37. |
VOE183824
|
[1] |
Roller bearing
|
|
| |
VOE6630545
|
[1] |
Clutch kit
|
|
| |
VOE4871833
|
|
Clutch shaft
|
|
| |
VOE4871038
|
|
Clutch Shaft
|
|
| 2. |
VOE795662
|
[0001] |
Partition wall
|
|
| |
VOE4786523
|
|
Partition wall
|
|
| |
VOE4719928
|
[0001] |
Shaft
|
ERS AV 4871300
|
| 3. |
VOE795303
|
[0001] |
Lock ring
|
|
| 3A. |
VOE4786538
|
|
Compression spring
|
|
| 3B. |
VOE4786539
|
|
Compression spring
|
|
| 4. |
VOE4871049
|
[0002] |
Piston ring
|
|
| 5. |
|
[0003] |
Tappet
|
|
| |
VOE4786529
|
|
Tappet
|
|
| 6. |
VOE4871935
|
[0001] |
O-ring
|
|
| 7. |
VOE795665
|
[0002] |
Reinforcing disc
|
|
| |
VOE4786515
|
|
Reinforcing disc
|
|
| 8. |
VOE795664
|
[0002] |
Disc
|
|
| |
VOE4871300
|
|
Shaft
|
ERS AV 4871650
|
| 9. |
VOE795666
|
[0002] |
Piston
|
|
| |
VOE4786943
|
|
Piston
|
|
| 10. |
VOE795303
|
[0002] |
Lock ring
|
|
| 11. |
VOE795305
|
[0002] |
Piston ring
|
|
| 12. |
VOE795307
|
[0002] |
Piston ring
|
|
| 13. |
VOE4786520
|
[0001] |
Clutch body
|
|
| 14. |
VOE4786516
|
[0001] |
Piston
|
|
| 15. |
VOE795310
|
[0001] |
Sealing ring
|
|
| 16. |
VOE795311
|
[0001] |
Lock ring
|
|
| 17. |
VOE4873042
|
[0016] |
Friction disc
|
|
| |
VOE4871650
|
|
Shaft
|
SER NO - 2600 HT 120
|
| 18. |
VOE795322
|
[0014] |
Disc
|
|
| 19. |
VOE4786514
|
[0001] |
Clutch hub
|
|
| 19A. |
VOE4786514
|
[0001] |
Clutch hub
|
|
| |
VOE4786530
|
|
Clutch hub
|
|
| 20. |
VOE4786536
|
[0002] |
Lock ring
|
|
| 21. |
VOE11703614
|
[0004] |
Retainer
|
|
| 21A. |
VOE11703614
|
[0004] |
Retainer
|
|
| |
VOE795323
|
|
Retainer
|
|
| 22. |
VOE4786554
|
[0002] |
Pressure plate
|
|
| 23. |
VOE4786526
|
[0002] |
Lock ring
|
|
| |
VOE4871680
|
|
Hydraulic clutch
|
SER NO 2601 HT 130
|
| 24. |
VOE795318
|
[0002] |
Lock ring
|
|
| 25. |
VOE795319
|
[0002] |
Washer
|
|
| 26. |
VOE795433
|
[0004] |
Needle bearing
|
|
| 27. |
VOE4871341
|
[4] |
Thrust washer
|
|
| 28. |
VOE11036058
|
[1] |
Gear
|
|
| |
VOE11036072
|
|
Gear
|
|
| 29. |
VOE11036057
|
[1] |
Gear
|
|
| |
VOE11036060
|
|
Gear
|
|
| 30. |
VOE784467
|
[2] |
Needle bearing
|
|
| 31. |
VOE4718148
|
[1] |
Spacer ring
|
|
