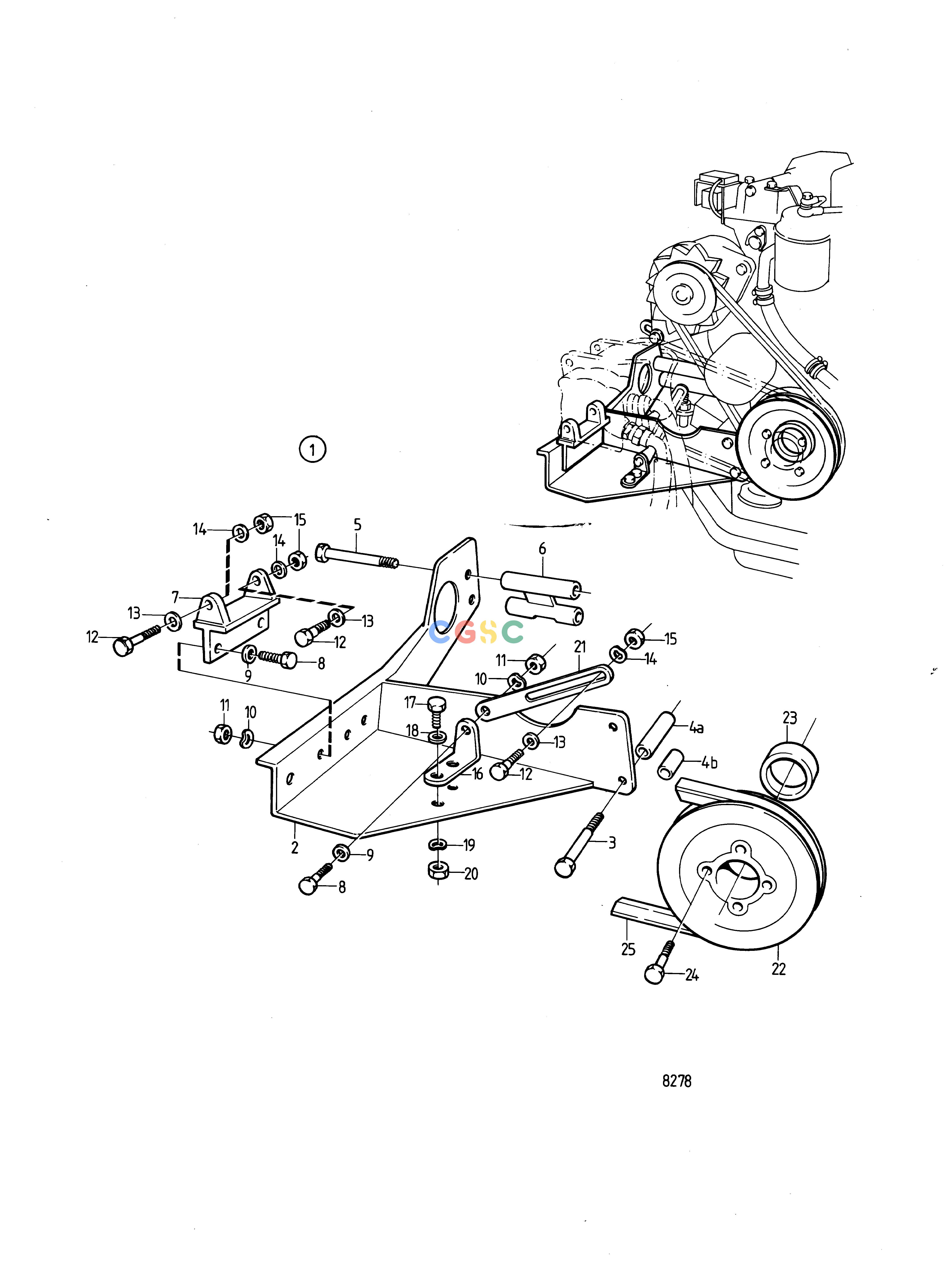

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentDrive Unit for Cooler CompressorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
765 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858049
|
[1] |
Bracket kit
|
|
| 2. |
840926
|
[1] |
Bracket
|
|
| 3. |
955308
|
[2] |
Hexagon screw
|
|
| 4A. |
821542
|
[2] |
Spacer sleeve
|
|
| 4B. |
820508
|
[2] |
Spacer sleeve
|
|
| 5. |
970962
|
[2] |
Hexagon screw
|
(955332)
|
| 6. |
840927
|
[1] |
Spacer
|
|
| 7. |
858028
|
[1] |
Bracket
|
|
| 8. |
963217
|
[3] |
Hexagon screw
|
|
| 9. |
955894
|
[3] |
Washer
|
|
| 10. |
941907
|
[3] |
Spring washer
|
|
| 11. |
955782
|
[3] |
Hexagon nut
|
|
| 12. |
955319
|
[3] |
Hexagon screw
|
|
| 13. |
961161
|
[3] |
Washer
|
|
| 14. |
941908
|
[3] |
Spring washer
|
|
| 15. |
955783
|
[3] |
Hexagon nut
|
|
| 16. |
858034
|
[1] |
Bracket
|
|
| 17. |
955272
|
[2] |
Hexagon screw
|
|
| 18. |
955892
|
[2] |
Washer
|
|
| 19. |
949607
|
[2] |
Spring washer
|
|
| 20. |
955781
|
[2] |
Hexagon nut
|
|
| 21. |
858033
|
[1] |
Tensioner
|
|
| 22. |
840794
|
[1] |
Pulley
|
|
| 23. |
858048
|
[1] |
Bracket
|
|
| 24. |
955300
|
[4] |
Hexagon screw
|
|
| 25. |
858060
|
[1] |
Drive belt
|
|
