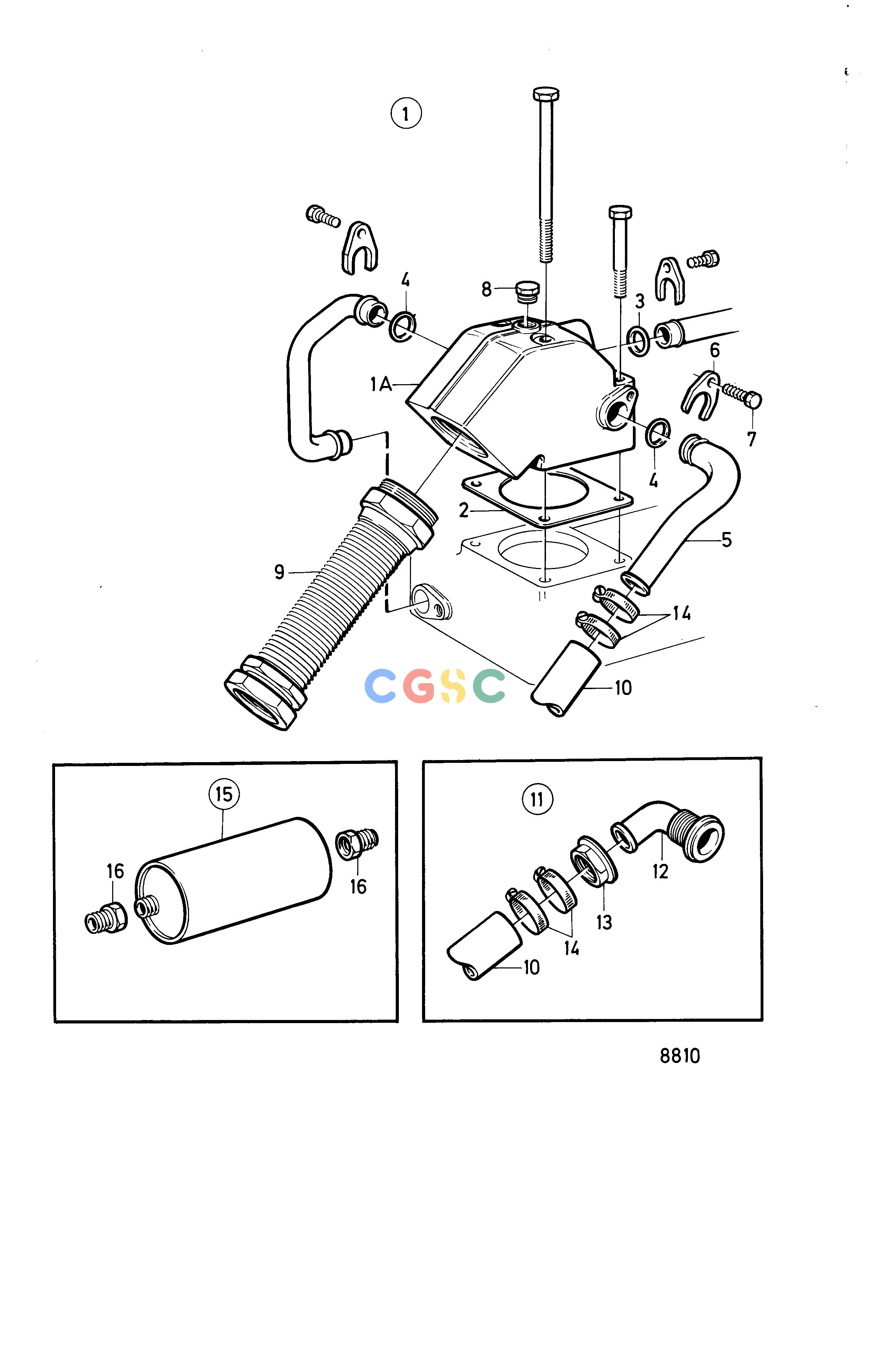

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentExhaust Line, DryEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
474 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858474
|
[1] |
Exhaust pipe elbow
|
|
| 1A. |
858413
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
840902
|
[1] |
Gasket
|
|
| 3. |
418445
|
[1] |
Sealing ring
|
|
| 4. |
418445
|
[2] |
Sealing ring
|
|
| 5. |
840732
|
[1] |
Hose connection
|
|
| 6. |
840740
|
[1] |
Clamp
|
|
| 7. |
955269
|
[1] |
Hexagon screw
|
|
| 8. |
981749
|
[1] |
Plug
|
|
| 9. |
833841
|
[1] |
Compensator
|
|
| 10. |
952969
|
[1] |
Hose
|
|
| 11. |
833940
|
[1] |
Hull fitting
|
|
| 12. |
|
|
|
|
| 13. |
807595
|
[1] |
Nut
|
|
| 14. |
961666
|
[4] |
Hose clamp
|
|
| 15. |
840764
|
[1] |
Silencer
|
|
| 16. |
840765
|
[2] |
Reduction sleeve
|
|
