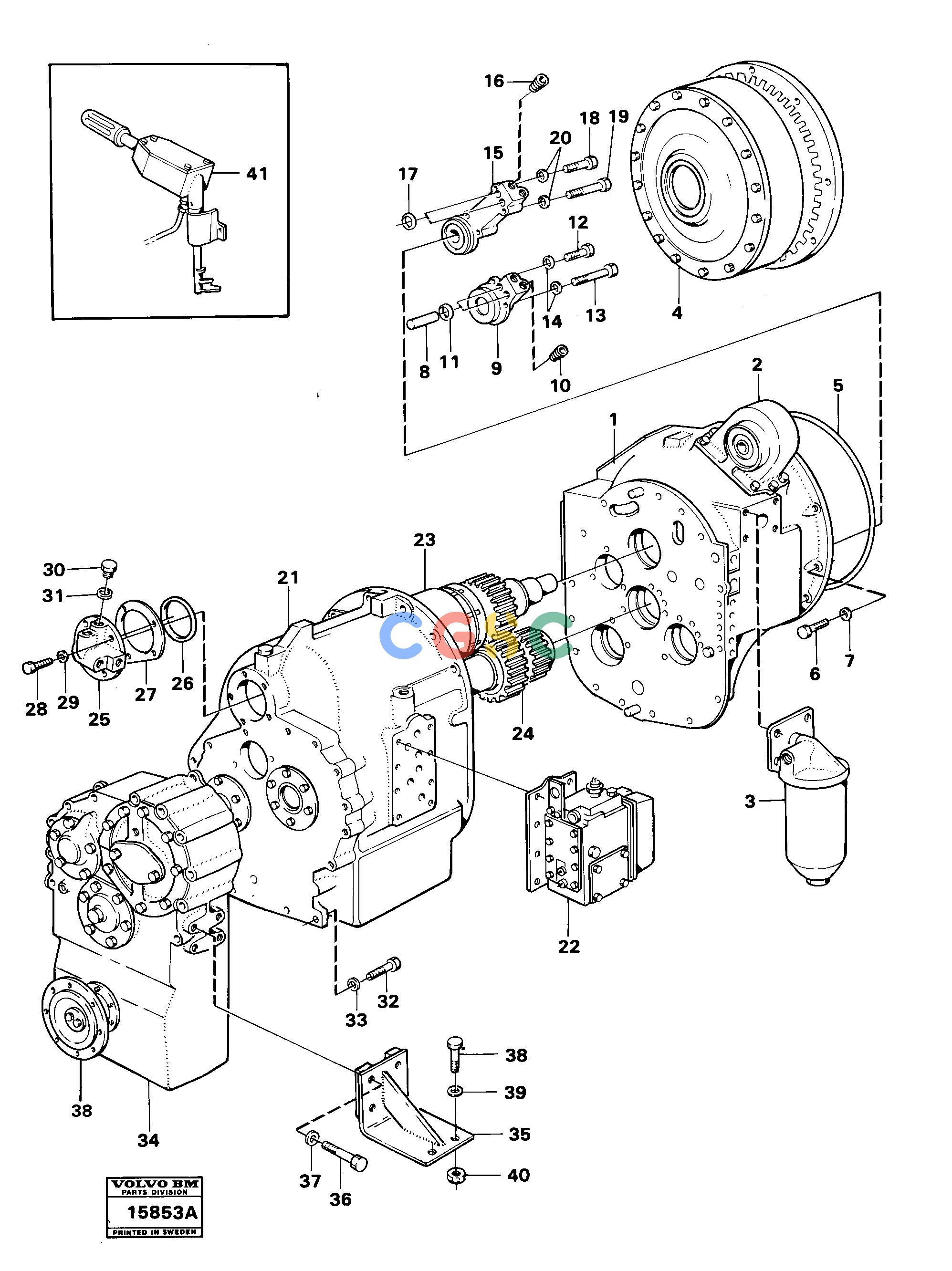

沃尔沃零件查询4500 Power transmission with fitting parts Tillv Nr-26004500 NoneNone30814Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
735 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
|
[0001] |
Torque converter
|
|
| 5. |
VOE926101
|
[0001] |
O-ring
|
|
| 6. |
VOE955563
|
[0012] |
Hexagon screw
|
|
| 7. |
VOE940280
|
[0012] |
Spring washer
|
|
| 8. |
VOE131301
|
[0002] |
Pin
|
|
| |
VOE30814
|
[0001] |
Transmission
|
HT 120
|
| 9. |
VOE4718026
|
[0001] |
Oil distributor
|
|
| 10. |
VOE952075
|
[0002] |
Plug
|
|
| 11. |
VOE13949188
|
[0002] |
O-ring
|
|
| 12. |
VOE955297
|
[0002] |
Hexagon screw
|
|
| 13. |
VOE955302
|
[0001] |
Hexagon screw
|
|
| 14. |
VOE13941907
|
[0003] |
Washer
|
|
| 15. |
VOE4718460
|
[0001] |
Oil distributor
|
|
| 16. |
VOE952075
|
[0002] |
Plug
|
|
| 17. |
VOE13949188
|
[0002] |
O-ring
|
|
| 18. |
VOE940132
|
[0002] |
Hexagon screw
|
|
| 1. |
|
[0001] |
Housing
|
|
| 19. |
VOE955302
|
[0002] |
Hexagon screw
|
|
| 20. |
VOE13941907
|
[0004] |
Washer
|
|
| 21. |
|
[0001] |
Housing
|
|
| 22. |
|
[0001] |
Valve
|
|
| 23. |
|
|
Clutchs
|
|
| 24. |
|
|
Gears and shafts
|
|
| 25. |
VOE4716998
|
[0001] |
Oil distributor
|
|
| 26. |
VOE925094
|
[0001] |
O-ring
|
|
| 27. |
VOE4718009
|
[REQ] |
Shim
|
THICK=1,0
|
| |
VOE4718010
|
[REQ] |
Shim
|
THICK =0,35
|
| 2. |
|
[0001] |
Pump drive
|
|
| |
VOE4718011
|
[REQ] |
Shim
|
THICK=0,1
|
| 28. |
VOE955297
|
[0005] |
Hexagon screw
|
|
| 29. |
VOE13941907
|
[0005] |
Washer
|
|
| 30. |
VOE944505
|
[0002] |
Plug
|
|
| 31. |
VOE957178
|
[0002] |
Gasket
|
|
| 32. |
VOE13970973
|
[0004] |
Hexagon screw
|
L=45
|
| |
VOE13970974
|
[0001] |
Hexagon screw
|
L= 50
|
| 33. |
VOE940280
|
[0005] |
Spring washer
|
|
| 34. |
|
[0001] |
Drop box
|
SEE GROUP 42
|
| 35. |
VOE4851249
|
[0002] |
Anchorage
|
|
| 3. |
|
[0001] |
Oil filter
|
|
| 36. |
VOE963317
|
[0008] |
Hexagon screw
|
|
| 37. |
VOE13955900
|
[0008] |
Washer
|
|
| 38. |
VOE60110000
|
[0004] |
Hexagon screw
|
|
| 39. |
VOE11055609
|
[0004] |
Plain washer
|
|
| 40. |
VOE963111
|
[0004] |
Lock nut
|
|
| 41. |
|
[0001] |
Gear shift control
|
|
| |
VOE6630972
|
[0001] |
Gasket kit
|
|
