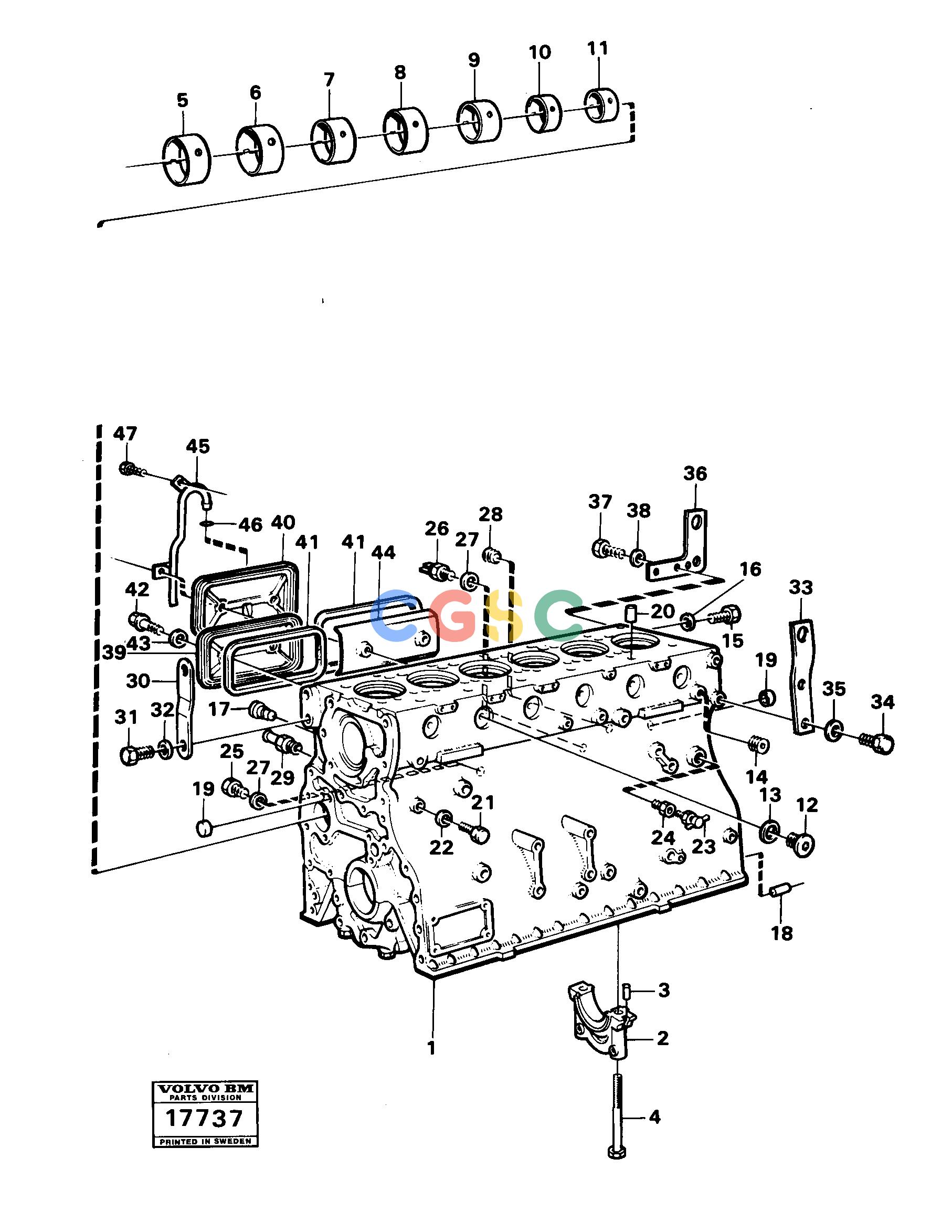

沃尔沃零件查询4600B Cylinder block4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE786724
|
[0001] |
Bushing
|
|
| 6. |
VOE422077
|
[0001] |
Bushing
|
|
| 7. |
VOE422078
|
[0001] |
Bushing
|
|
| 8. |
VOE11000014
|
[0001] |
Bushing
|
|
| 9. |
VOE422080
|
[0001] |
Bushing
|
|
| 1. |
VOE1545210
|
[0001] |
Cylinder block
|
|
| 10. |
VOE422081
|
[0001] |
Bushing
|
|
| 11. |
VOE422082
|
[0001] |
Bushing
|
|
| 12. |
VOE467367
|
[0006] |
Plug
|
|
| 13. |
VOE1556907
|
[0006] |
Gasket
|
|
| 14. |
VOE952075
|
[0001] |
Plug
|
|
| 15. |
VOE422550
|
[0001] |
Fitting
|
|
| 16. |
VOE468463
|
[0001] |
Gasket
|
|
| 17. |
VOE422369
|
[0007] |
Plug
|
|
| 18. |
VOE191171
|
[0002] |
Pin
|
|
| 19. |
VOE13955083
|
[0003] |
Cap plug
|
|
| 2. |
|
[0007] |
Clamp
|
|
| 20. |
VOE14025455
|
[0012] |
Cylinder Pin
|
|
| 21. |
VOE180761
|
[0001] |
Plug
|
|
| 22. |
VOE13947622
|
[0001] |
Plane gasket
|
|
| 23. |
VOE13947893
|
[0001] |
Tap
|
|
| 24. |
VOE479954
|
[0001] |
Nipple
|
|
| 25. |
VOE7016318
|
[0002] |
Plug
|
|
| 26. |
VOE1606877
|
[0001] |
Switch
|
|
| 27. |
VOE13947281
|
[0002] |
Gasket
|
|
| 28. |
VOE952075
|
[0001] |
Plug
|
|
| 29. |
VOE479978
|
[0002] |
Nipple
|
|
| 3. |
VOE422426
|
[0001] |
Pin
|
|
| 30. |
|
[0001] |
Iron
|
|
| 31. |
VOE955561
|
[0002] |
Hexagon screw
|
|
| 32. |
VOE940280
|
[0002] |
Spring washer
|
|
| 33. |
|
[0001] |
Iron
|
|
| 34. |
VOE955561
|
[0002] |
Hexagon screw
|
|
| 35. |
VOE940280
|
[0002] |
Spring washer
|
|
| 36. |
|
[0001] |
Iron
|
|
| 37. |
VOE955561
|
[0002] |
Hexagon screw
|
|
| 38. |
VOE940280
|
[0002] |
Spring washer
|
|
| 39. |
VOE423120
|
[0002] |
Hatch
|
|
| 4. |
VOE422067
|
[0014] |
Screw
|
|
| 40. |
VOE423121
|
[0001] |
Hatch
|
|
| 41. |
VOE469823
|
[0003] |
Gasket
|
|
| 42. |
VOE422541
|
[0006] |
Screw
|
|
| 43. |
VOE469846
|
[0006] |
Sealing ring
|
|
| 44. |
VOE422542
|
[0001] |
Splash plate
|
|
| 45. |
VOE467090
|
[0001] |
Breather pipe
|
|
| 46. |
VOE421158
|
[0001] |
Sealing ring
|
|
| 47. |
VOE942402
|
[0002] |
Flange screw
|
|
