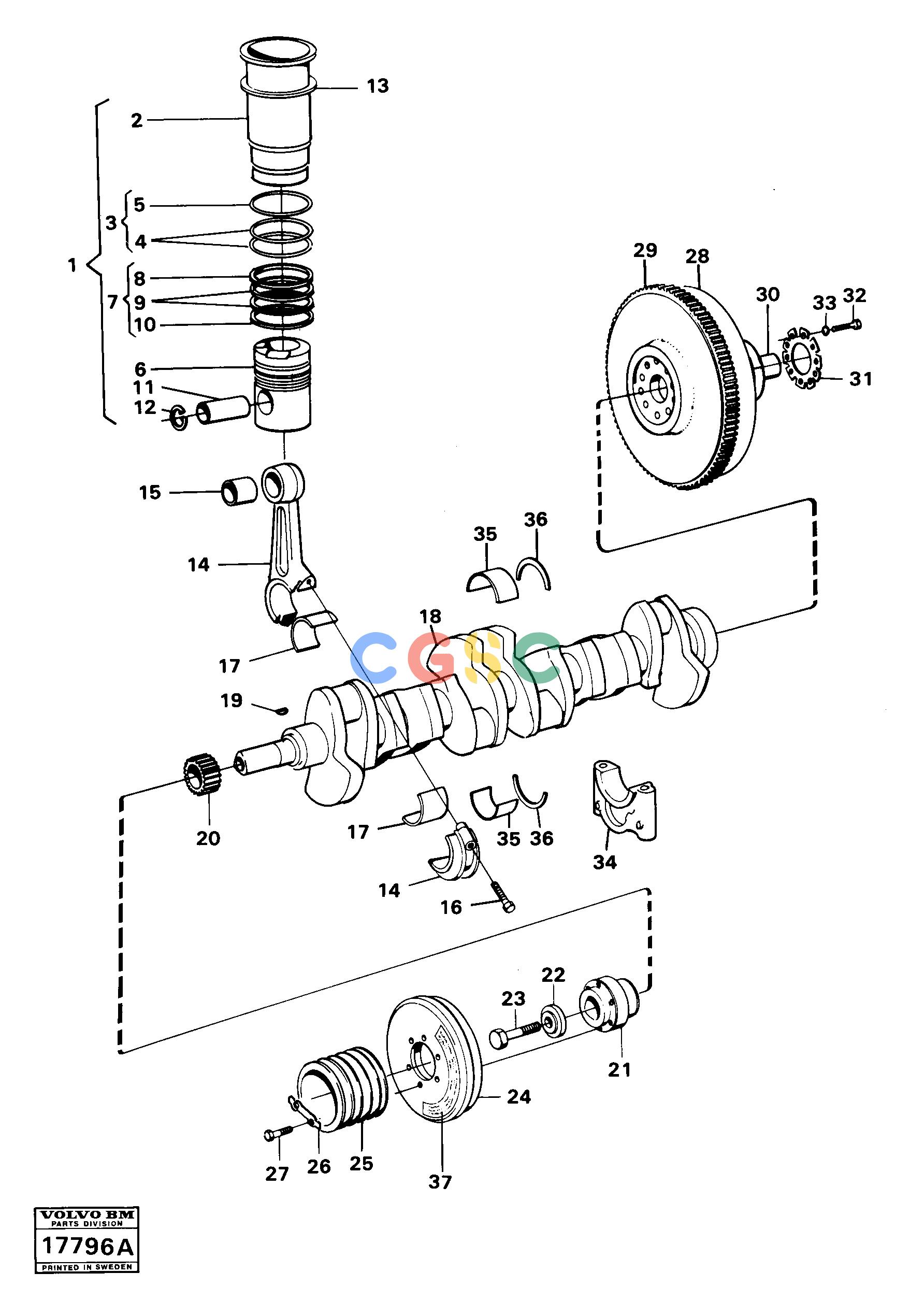

沃尔沃零件查询4600B Crankshaft and related parts4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
428 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0006] |
Seal ring
|
|
| |
VOE276761
|
[0001] |
Thrust washer kit
|
0,3 ÖD
|
| 37. |
VOE467834
|
[0001] |
Sign
|
|
| 6. |
|
[0006] |
Piston
|
|
| 7. |
VOE275313
|
[0006] |
Piston ring kit
|
|
| 8. |
|
[0006] |
Compression ring
|
|
| 9. |
|
[0012] |
Compression ring
|
|
| 1. |
VOE275071
|
[0006] |
Cylinder liner kit
|
|
| 10. |
|
[0006] |
Oil ring
|
|
| 11. |
VOE8194539
|
[0006] |
Gudgeon pin
|
STD
|
| 12. |
VOE417466
|
[0012] |
Lock ring
|
|
| 13. |
VOE422619
|
[REQ] |
Shim
|
THICK=0,20
|
| |
VOE422620
|
[REQ] |
Shim
|
THICK=0,30
|
| |
VOE422621
|
[REQ] |
Shim
|
THICK=0,50
|
| 14. |
VOE1545299
|
[0006] |
Connecting rod
|
|
| 15. |
VOE1545302
|
[0006] |
Bushing
|
|
| 16. |
VOE1545479
|
[0012] |
Screw
|
|
| 17. |
VOE270124
|
[0006] |
Big End Brg Kit
|
STD D
|
| 2. |
|
[0006] |
Cylinder liner
|
|
| |
VOE270125
|
[0006] |
Big End Brg Kit
|
0,25 UD
|
| |
VOE270126
|
[0006] |
Big End Brg Kit
|
0,50 UD
|
| |
VOE270127
|
[0006] |
Big End Brg Kit
|
0,75 UD
|
| |
VOE270128
|
[0006] |
Big End Brg Kit
|
1,00 UD
|
| 18. |
VOE8194490
|
[1] |
Crankshaft
|
|
| |
VOE13978130
|
[6] |
Plug
|
|
| 19. |
VOE422253
|
[0001] |
Key
|
|
| 20. |
VOE423080
|
[0001] |
Gear
|
|
| 21. |
VOE478506
|
[0001] |
Hub
|
|
| 22. |
VOE422124
|
[0001] |
Washer
|
|
| 23. |
VOE941494
|
[0001] |
Screw
|
|
| 3. |
VOE275734
|
[0006] |
Sealing Kit
|
|
| 24. |
VOE1545668
|
[0001] |
Vibration damper
|
|
| 25. |
VOE4776509
|
[0001] |
Pulley
|
|
| 26. |
VOE13941909
|
[0003] |
Washer
|
|
| 27. |
VOE955550
|
[0006] |
Hexagon screw
|
|
| 28. |
VOE4777080
|
[0001] |
Flywheel
|
|
| 29. |
VOE420794
|
[0001] |
Gear ring
|
|
| 30. |
VOE4776023
|
[0001] |
Flange
|
|
| 31. |
VOE4776071
|
[0001] |
Lock washer
|
|
| 32. |
VOE941570
|
[0010] |
Screw
|
|
| 33. |
VOE467773
|
[0010] |
Washer
|
|
| 4. |
|
[0012] |
Seal ring
|
|
| 34. |
|
|
Clamp
|
|
| 35. |
VOE270438
|
[0007] |
Main bearing kit
|
STD D
|
| |
VOE270439
|
[0007] |
Main bearing kit
|
0,010 UD
|
| |
VOE270440
|
[0007] |
Main bearing kit
|
0,020 UD
|
| |
VOE270441
|
[0007] |
Main bearing kit
|
0,030 UD
|
| |
VOE270442
|
[0007] |
Main bearing kit
|
0,040 UD
|
| |
VOE270443
|
[0007] |
Main bearing kit
|
0,050 UD
|
| 36. |
VOE276758
|
[0001] |
Thrust washer kit
|
STD D
|
| |
VOE276759
|
[0001] |
Thrust washer kit
|
0,1 ÖD
|
| |
VOE276760
|
[0001] |
Thrust washer kit
|
0,2 ÖD
|
