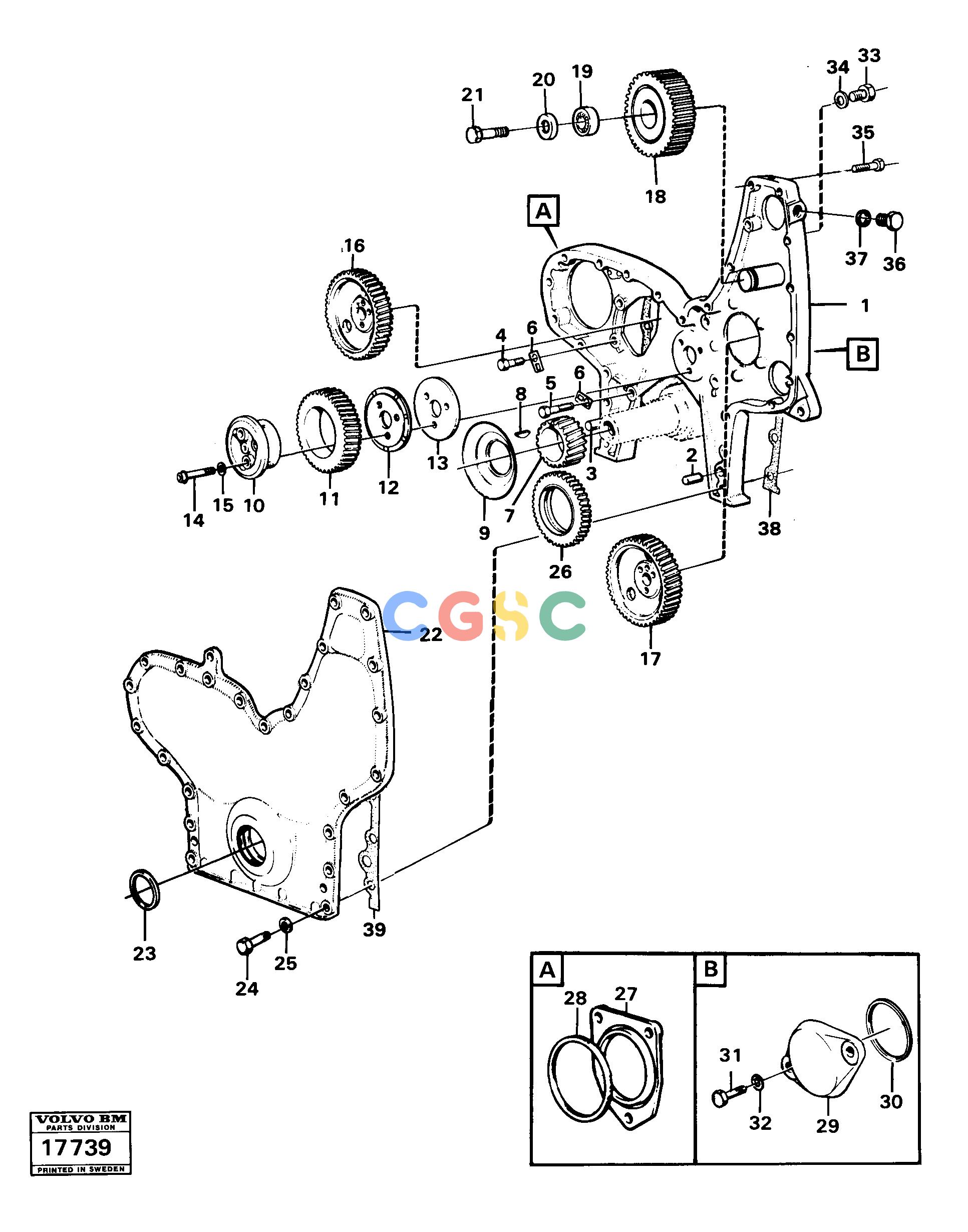

沃尔沃零件查询4600B Timing gear casing and gears4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
636 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE941939
|
[0004] |
Screw
|
L=29
|
| 5. |
VOE955537
|
[0001] |
Hexagon screw
|
L=51
|
| 6. |
VOE13941572
|
[0005] |
Lock washer
|
|
| 7. |
|
[0001] |
Crankshaft gear
|
|
| 8. |
|
[0001] |
Key
|
|
| 1. |
VOE470646
|
[0001] |
Timing gear casing
|
|
| 9. |
VOE423177
|
[0001] |
Oil deflector
|
|
| 10. |
VOE422766
|
[0001] |
Pin
|
|
| 11. |
VOE467461
|
[0001] |
Idler gear
|
|
| 12. |
VOE467528
|
[0001] |
Bearing shield
|
|
| 13. |
VOE478951
|
[0001] |
Thrust washer
|
|
| 14. |
VOE468738
|
[0003] |
Screw
|
L=81
|
| 15. |
VOE942180
|
[0003] |
Disc spring
|
|
| 16. |
VOE423079
|
[0001] |
Gear
|
|
| 17. |
VOE423079
|
[0001] |
Gear
|
|
| 18. |
VOE470231
|
[0001] |
Gear
|
|
| |
|
[0001] |
Bearing spindle
|
|
| 19. |
VOE470231
|
[0001] |
Gear
|
|
| 20. |
VOE930428
|
[0001] |
Spacer ring
|
|
| 21. |
VOE955540
|
[0001] |
Hexagon screw
|
|
| 22. |
VOE11031091
|
[0001] |
Cover
|
|
| 23. |
VOE424983
|
[0001] |
Sealing ring
|
|
| |
|
[0001] |
Felt Ring
|
|
| 24. |
VOE955542
|
[0008] |
Hexagon screw
|
L=38
|
| |
VOE13940162
|
[0010] |
Screw
|
L=83
|
| |
VOE955544
|
[0001] |
Hexagon screw
|
L=102
|
| |
VOE955540
|
[0002] |
Hexagon screw
|
L=70
|
| 25. |
VOE13942336
|
[REQ] |
Spring washer
|
|
| 2. |
VOE13941510
|
[0001] |
Pin
|
|
| 26. |
|
[0001] |
Gear
|
SEE GROUP 22
|
| 27. |
VOE420178
|
[0001] |
Cover
|
|
| |
VOE953346
|
[0003] |
Stud
|
|
| |
VOE941911
|
[0003] |
Spring washer
|
|
| |
VOE13955828
|
[0003] |
Nut
|
|
| 28. |
VOE13975610
|
[0001] |
O-ring
|
(413619, 975610)
|
| 29. |
|
[0001] |
Cover
|
|
| 30. |
VOE468094
|
[0001] |
Sealing ring
|
|
| 31. |
VOE955535
|
[0002] |
Hexagon screw
|
|
| 32. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 3. |
VOE13941511
|
[0001] |
Pin
|
|
| 33. |
VOE7192114
|
[0001] |
Plug
|
|
| 34. |
VOE13947627
|
[0001] |
Plane gasket
|
|
| 35. |
VOE955536
|
[0002] |
Hexagon screw
|
|
| 36. |
VOE943681
|
[0001] |
Plug
|
|
| 37. |
VOE925059
|
[0001] |
O-ring
|
|
| 38. |
VOE468557
|
[0001] |
Gasket
|
|
| 39. |
VOE468116
|
[0001] |
Gasket
|
|
