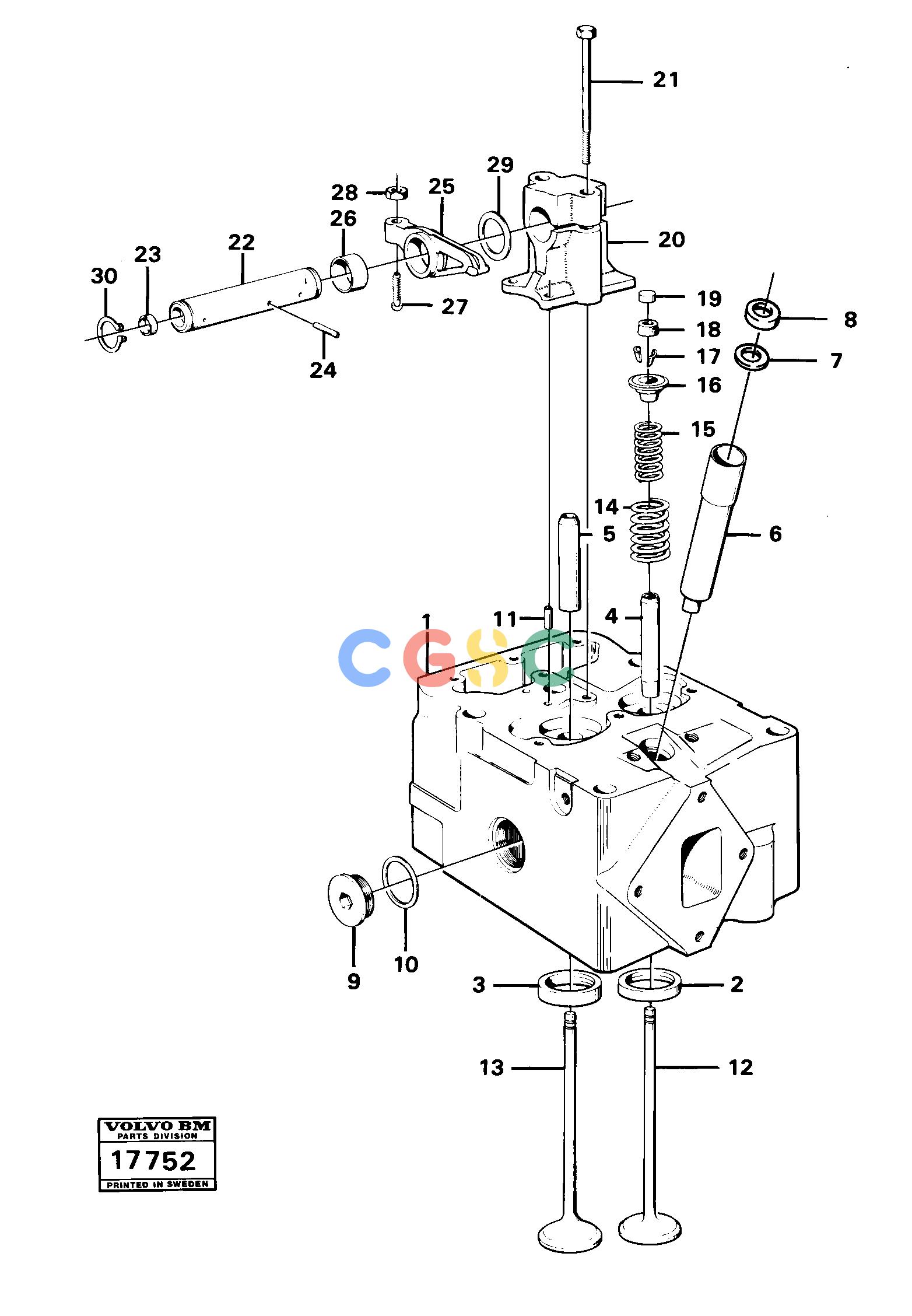

沃尔沃零件查询4600B Cylinder head4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1022 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE467591
|
[6] |
Valve seat
|
0,20 ÖD
|
| 4. |
VOE422320
|
[6] |
Valve guide
|
|
| 5. |
VOE11129092
|
[6] |
Valve guide
|
|
| 6. |
VOE1545023
|
[6] |
Sleeve
|
|
| 7. |
VOE466420
|
[6] |
Ring
|
|
| 1. |
VOE1545199
|
[6] |
Cylinder
|
|
| 8. |
VOE466405
|
[6] |
Sealing ring
|
|
| |
VOE422956
|
|
Cylinder head
|
|
| 9. |
VOE467365
|
[12] |
Plug
|
|
| 10. |
VOE469327
|
[12] |
Gasket
|
|
| 11. |
VOE14025455
|
[12] |
Cylinder Pin
|
|
| 12. |
VOE479204
|
[6] |
Inlet valve
|
|
| 13. |
VOE467855
|
[6] |
Exhaust valve
|
|
| 14. |
VOE467334
|
[12] |
Valve spring
|
|
| 15. |
VOE467335
|
[12] |
Valve spring
|
|
| 16. |
VOE467506
|
[12] |
Washer
|
|
| 17. |
VOE468305
|
[24] |
Valve sleeve
|
|
| 2. |
VOE467474
|
[6] |
Valve seat
|
STD D
|
| 18. |
VOE417135
|
[12] |
Protecting ring
|
|
| 19. |
VOE478074
|
[12] |
Valve cap
|
|
| 20. |
VOE422018
|
[6] |
Bearing Bracket
|
|
| 21. |
VOE7422428
|
[12] |
Screw
|
|
| 22. |
VOE422019
|
[6] |
Rocker arm shaft
|
|
| 23. |
VOE946778
|
[12] |
Cap plug
|
|
| 24. |
VOE950499
|
[6] |
Pin
|
|
| 25. |
VOE422063
|
[12] |
Rocker arm
|
|
| 26. |
VOE422066
|
[12] |
Bushing
|
|
| 27. |
VOE422993
|
[12] |
Bolt
|
|
| |
VOE467590
|
[6] |
Valve seat
|
0,20 ÖD
|
| 28. |
VOE940175
|
[12] |
Nut
|
|
| 29. |
VOE941488
|
[12] |
Washer
|
|
| 30. |
VOE914459
|
[12] |
Snap ring
|
|
| 3. |
VOE467475
|
[6] |
Valve seat
|
STD D
|
