沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentExtra Instrument PanelEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
655 次

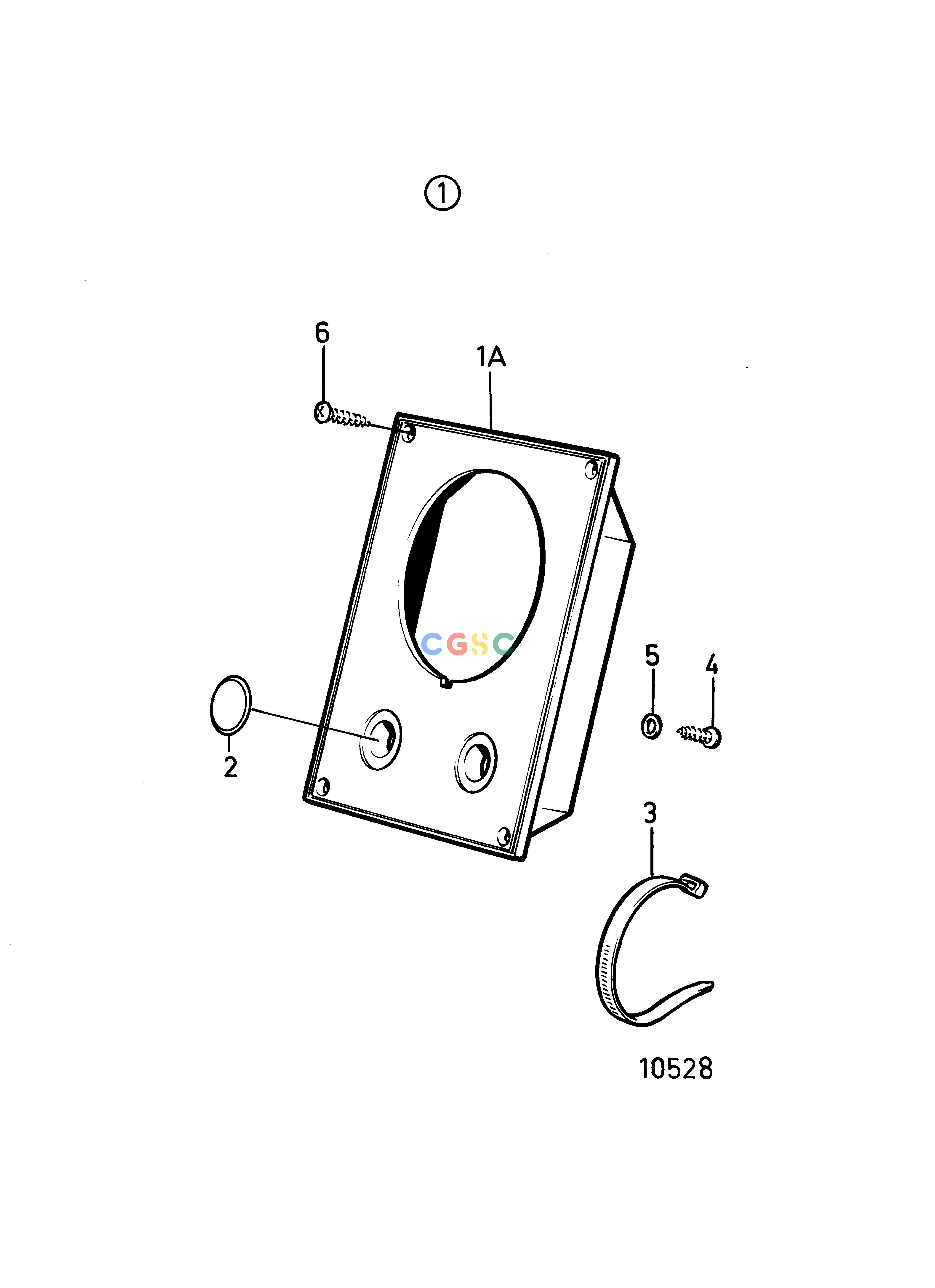

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840466
|
[1] |
Instrument panel
|
Gold coloured decor stripe.
|
| 1. |
858873
|
[1] |
Instrument panel
|
White coloured decor stripe
|
| 1A. |
858649
|
[1] |
Instrument panel
|
|
| 2. |
828607
|
[2] |
Cover plate
|
|
| 3. |
949666
|
[1] |
Cable tie
|
|
| 4. |
949947
|
[1] |
Cross recessed screw
|
|
| 5. |
941904
|
[1] |
Spring washer
|
|
| 6. |
828647
|
[4] |
Screw
|
|
