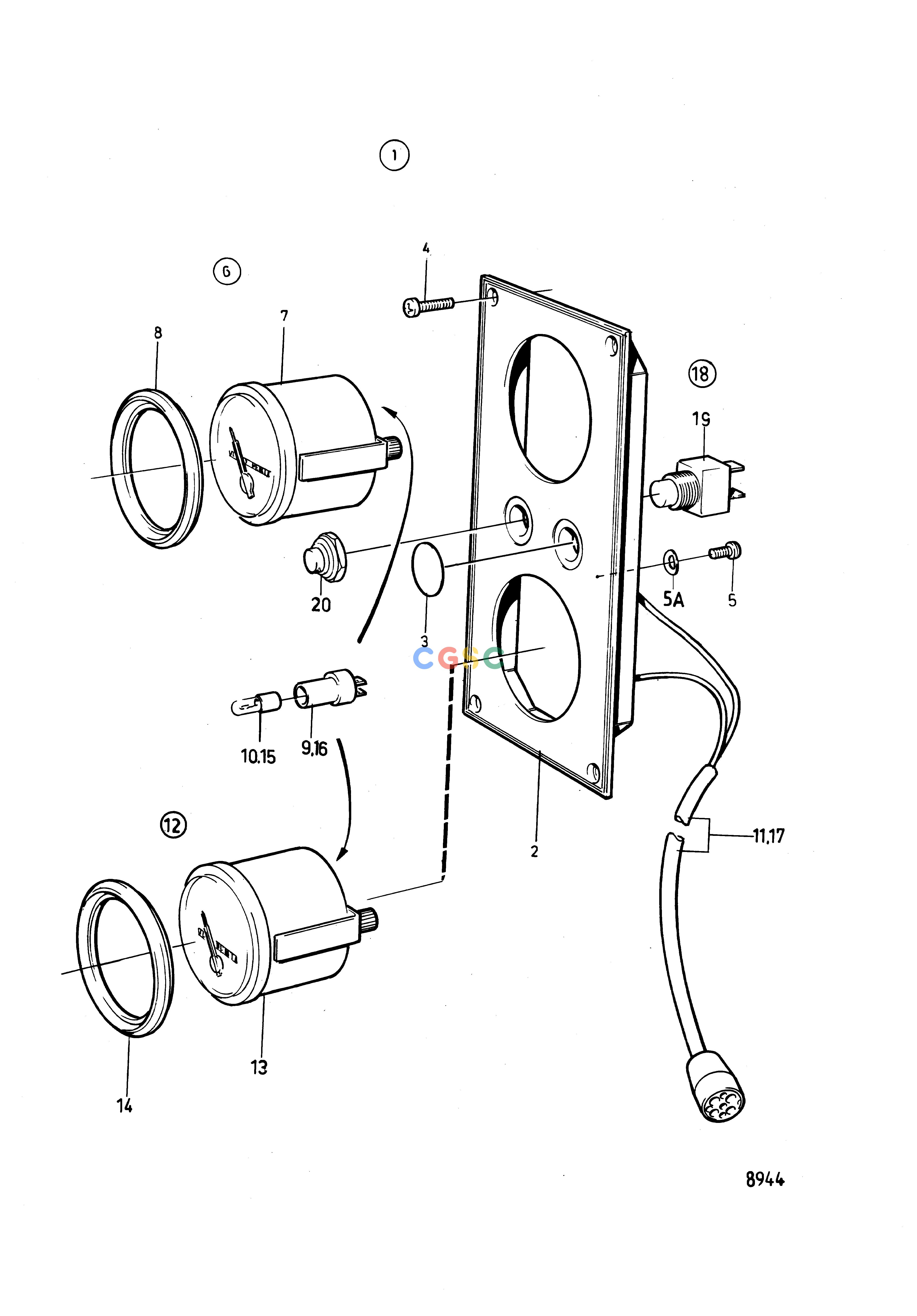

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentExtra Panel, Hour Meter Kit, Voltmeter KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
282 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846786
|
[1] |
Instrument panel
|
Gold coloured decor stripe.
|
| 1. |
858874
|
[1] |
Instrument panel
|
White coloured decor stripe.
|
| 2. |
858650
|
[1] |
Instrument panel
|
|
| 3. |
828607
|
[2] |
Cover plate
|
|
| 4. |
828647
|
[4] |
Screw
|
|
| 5. |
949947
|
[1] |
Cross recessed screw
|
|
| 5A. |
941904
|
[1] |
Spring washer
|
|
| 6. |
1140464
|
[1] |
Hour recorder
|
(858877)
|
| 7. |
872479
|
[1] |
Hour recorder
|
|
| 8. |
858643
|
[1] |
Front ring
|
|
| 9. |
808175
|
[1] |
Bulb socket
|
|
| 10. |
19923
|
[1] |
Bulb
|
12V
|
| 10. |
182059
|
[1] |
Bulb
|
24V
|
| 11. |
|
|
|
See group 3
|
| 12. |
858878
|
[1] |
Voltmeter kit
|
White coloured decor stripe., (828713)
|
| 13. |
873199
|
[1] |
Voltmeter
|
|
| 14. |
858643
|
[1] |
Front ring
|
|
| 15. |
19923
|
[1] |
Bulb
|
12V
|
| 16. |
808175
|
[1] |
Bulb socket
|
|
| 17. |
|
|
|
See group 3
|
| 18. |
828718
|
[1] |
Toggle switch
|
Closing during pressure and spring-loaded.
|
| 18. |
828719
|
[1] |
Toggle switch
|
Closing-breaking.
|
| 19. |
828584
|
[1] |
Toggle switch
|
For 828718
|
| 19. |
828585
|
[1] |
Toggle switch
|
For 828719
|
| 20. |
828586
|
[1] |
Nut
|
|
