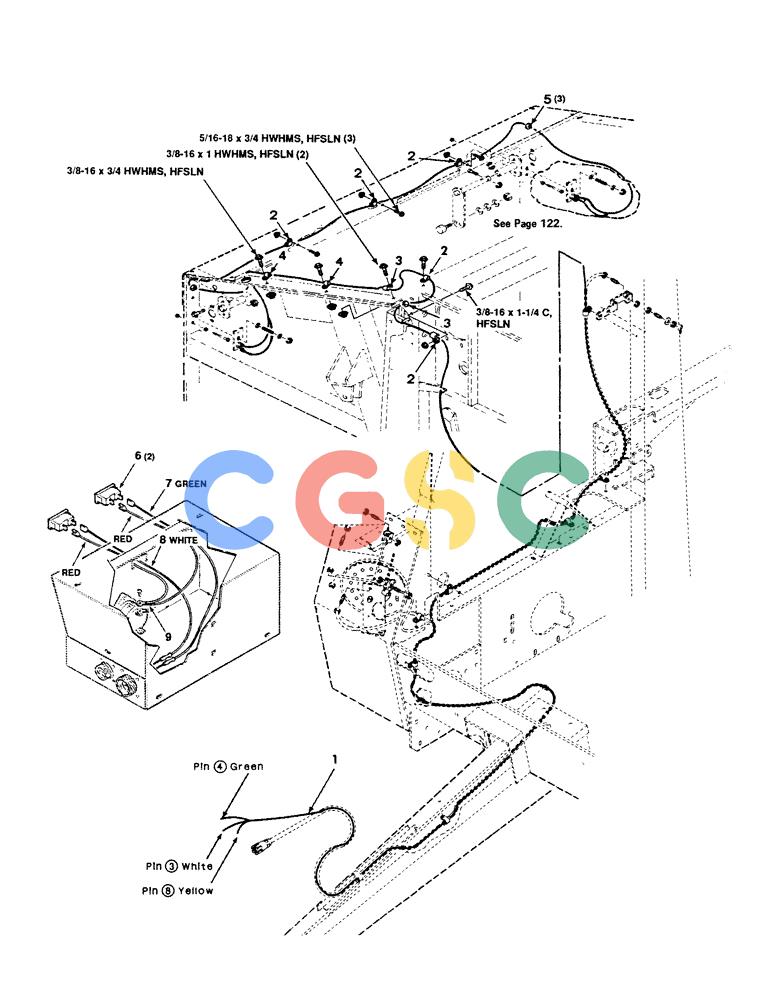

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (120) - BALE SHAPE MONITOR, DRIVING LIGHT, KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
852 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50452
|
[1] |
Bale Shape Monitor (Driving Light) Kit Complete
|
|
| 1. |
700707361
|
[1] |
HARNESS
|
CAS
- Wire
|
| 2. |
700708090
|
[5] |
CLAMP
|
L
- Line Superseded by part number: 86637978
|
| 3. |
700708340
|
[1] |
GROMMET
|
CAS
|
| 4. |
751628
|
[3] |
CLAMP
|
CAS
- Line Superseded by part number: 675162
|
| 5. |
7827983
|
[3] |
GROMMET
|
CAS
|
| 6. |
700707459
|
[2] |
INDICATOR
|
IH
Lamp - Monitor
|
| 7. |
700707755
|
[1] |
ELECTRICAL WIRE
|
HFI
Wire - Electric, Green
|
| 8. |
700707756
|
[1] |
ELECTRICAL WIRE
|
HFI
Wire - Electric, White
|
| 9. |
700707750
|
[1] |
ASSEMBLY
|
HFI
Wire - Electric, Red
|
| . . |
702035
|
[1] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd
|
CAS
3/8-16 x 1-1/4 C
|
| . . |
7883325
|
[3] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 x 3/4 HWHMS Superseded by part number: 121-115
|
| . . |
7883374
|
[1] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 255918
|
| . . |
7883382
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 120M
|
CAS
3/8-16 x 1 HWHMS Superseded by part number: 87034804
|
