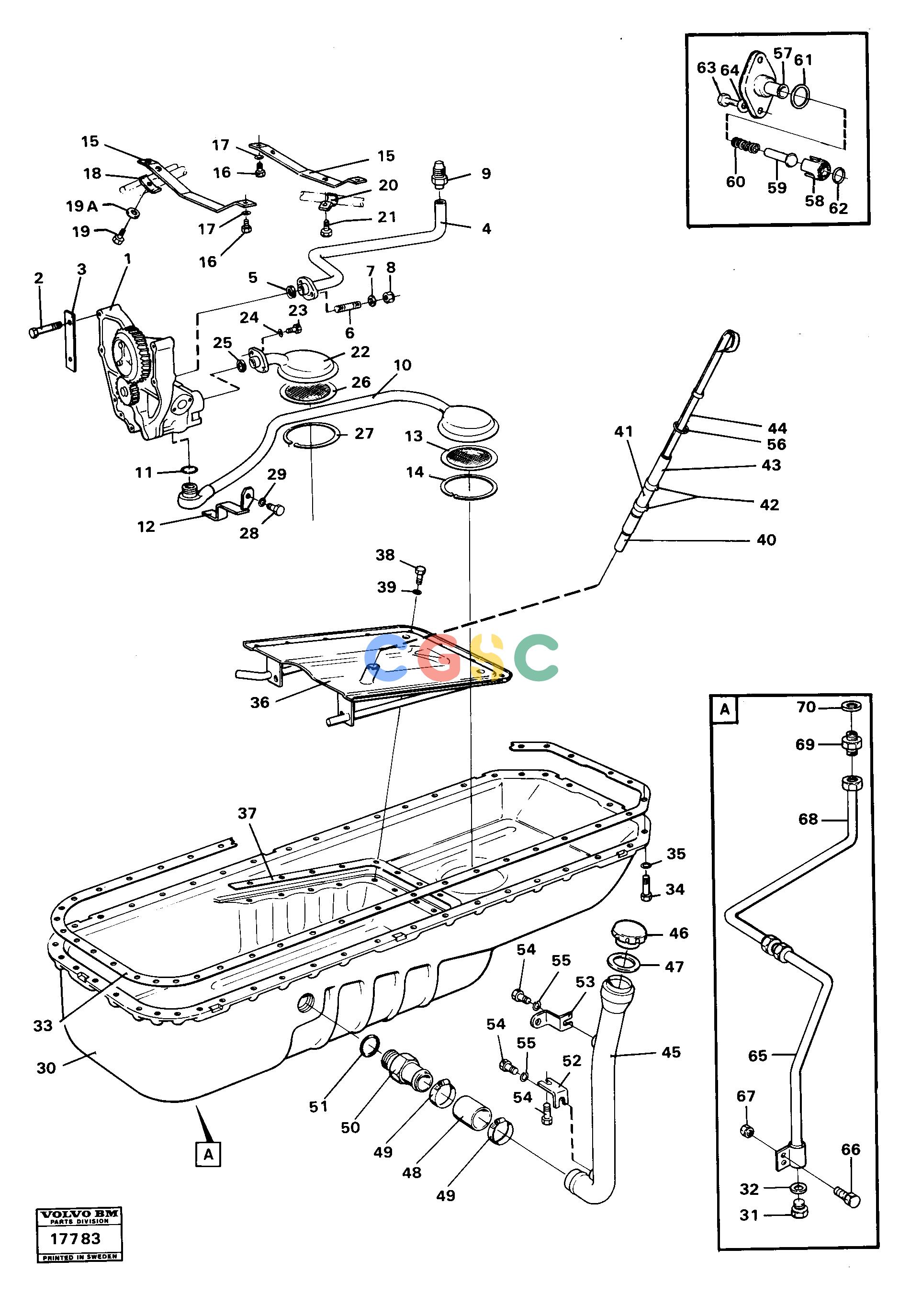

沃尔沃零件查询4600B Lubricating oil system4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
559 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13949656
|
[0001] |
O-ring
|
|
| 47. |
VOE1275379
|
[1] |
Gasket
|
|
| 48. |
VOE942711
|
[REQ] |
Hose
|
L=45
|
| 49. |
VOE943478
|
[2] |
Hose clamp
|
|
| 50. |
VOE4776353
|
[1] |
Nipple
|
|
| 51. |
VOE925064
|
[0001] |
O-ring
|
|
| 52. |
VOE4776924
|
[0001] |
Bracket
|
|
| 53. |
VOE822890
|
[0001] |
Anchorage
|
|
| 54. |
VOE955525
|
[0003] |
Hexagon screw
|
|
| 55. |
VOE13941907
|
[0002] |
Washer
|
|
| 56. |
VOE955982
|
[0001] |
O-ring
|
|
| 6. |
VOE942596
|
[0002] |
Stud
|
|
| |
VOE469235
|
[0001] |
Valve
|
|
| 57. |
|
[0001] |
Housing
|
|
| 58. |
|
[0001] |
Seat
|
|
| 59. |
|
[0001] |
Valve
|
|
| 60. |
|
[0001] |
Spring
|
|
| 61. |
VOE949658
|
[0001] |
O-ring
|
|
| 62. |
VOE469846
|
[0001] |
Sealing ring
|
|
| 63. |
VOE940100
|
[0002] |
Hexagon screw
|
|
| 64. |
VOE7192287
|
[0002] |
Washer
|
|
| 65. |
VOE4951269
|
[0001] |
Drain tube
|
|
| 66. |
VOE60111867
|
[0001] |
Hexagon screw
|
L=25
|
| 7. |
VOE13941907
|
[0002] |
Washer
|
|
| |
VOE940142
|
[0002] |
Hexagon screw
|
L=30
|
| |
VOE955892
|
[0001] |
Plain washer
|
D1=6,4
|
| |
VOE13960141
|
[0002] |
Washer
|
D1=8,4
|
| 67. |
VOE946035
|
[0001] |
Lock nut
|
M6
|
| |
VOE946036
|
[0002] |
Lock nut
|
M8
|
| 68. |
VOE932413
|
[0001] |
Hose assembly
|
|
| 69. |
VOE926272
|
[0001] |
Nipple
|
|
| 70. |
VOE949329
|
[0001] |
Gasket
|
|
| 8. |
VOE955826
|
[0002] |
Hexagon nut
|
|
| 9. |
VOE466907
|
[0001] |
Nipple
|
|
| 1. |
|
[0001] |
Oil pump
|
|
| 10. |
VOE4776342
|
[0001] |
Suction pipe
|
|
| 11. |
VOE925059
|
[0001] |
O-ring
|
|
| 12. |
VOE4776475
|
[0001] |
Bracket
|
|
| 13. |
VOE403483
|
[0001] |
Wire gauze
|
|
| 14. |
VOE118123
|
[0001] |
Snap ring
|
|
| 15. |
VOE4776859
|
[0002] |
Support
|
|
| 16. |
VOE955524
|
[0004] |
Hexagon screw
|
|
| 17. |
VOE13941907
|
[0004] |
Washer
|
|
| 18. |
VOE4776352
|
[0001] |
Clamp
|
|
| 19. |
VOE13940159
|
[0001] |
Screw
|
|
| 2. |
VOE955538
|
[0004] |
Hexagon screw
|
|
| 19A. |
VOE13955894
|
[0001] |
Washer
|
|
| 20. |
VOE945605
|
[0001] |
Clamp
|
|
| 21. |
VOE13940159
|
[0001] |
Screw
|
|
| 22. |
VOE11031098
|
[0001] |
Oil strainer
|
|
| 23. |
VOE192548
|
[0001] |
Screw
|
|
| 24. |
VOE13941907
|
[0002] |
Washer
|
|
| |
VOE945467
|
[0002] |
Lock nut
|
|
| 25. |
VOE13949657
|
[0001] |
O-ring
|
|
| 26. |
VOE403483
|
[0001] |
Wire gauze
|
|
| 27. |
VOE118123
|
[0001] |
Snap ring
|
|
| 3. |
VOE190529
|
[0002] |
Tab washer
|
|
| 28. |
VOE13955523
|
[0001] |
Screw
|
|
| 29. |
VOE13941907
|
[0001] |
Washer
|
|
| 30. |
VOE4777106
|
[0001] |
Oil pan
|
|
| 31. |
VOE13949175
|
[0001] |
Magnetic plug
|
|
| 32. |
VOE949329
|
[0001] |
Gasket
|
|
| 33. |
VOE1545696
|
[0001] |
Gasket
|
|
| 34. |
VOE13940159
|
[0038] |
Screw
|
L=32
|
| |
VOE940186
|
[0002] |
Hexagon screw
|
L=38
|
| 35. |
VOE13941907
|
[0041] |
Washer
|
|
| 36. |
VOE11031094
|
[0001] |
Baffle plate
|
|
| 4. |
VOE4776573
|
[0001] |
Oil pipe
|
|
| 37. |
VOE11031009
|
[1] |
Gasket
|
|
| 38. |
VOE13955523
|
[12] |
Screw
|
|
| 39. |
VOE13941907
|
[12] |
Washer
|
|
| 40. |
VOE4776407
|
[1] |
Tube
|
|
| 41. |
VOE946652
|
[REQ] |
Hose
|
|
| 42. |
VOE13943472
|
[2] |
Hose clamp
|
|
| 43. |
VOE4776671
|
[1] |
Oil pipe
|
|
| 44. |
VOE823018
|
[1] |
Dipstick
|
|
| 45. |
VOE822885
|
[1] |
Filler pipe
|
|
| 46. |
VOE421753
|
[1] |
Filler cap
|
(7420292, 420292)
|
