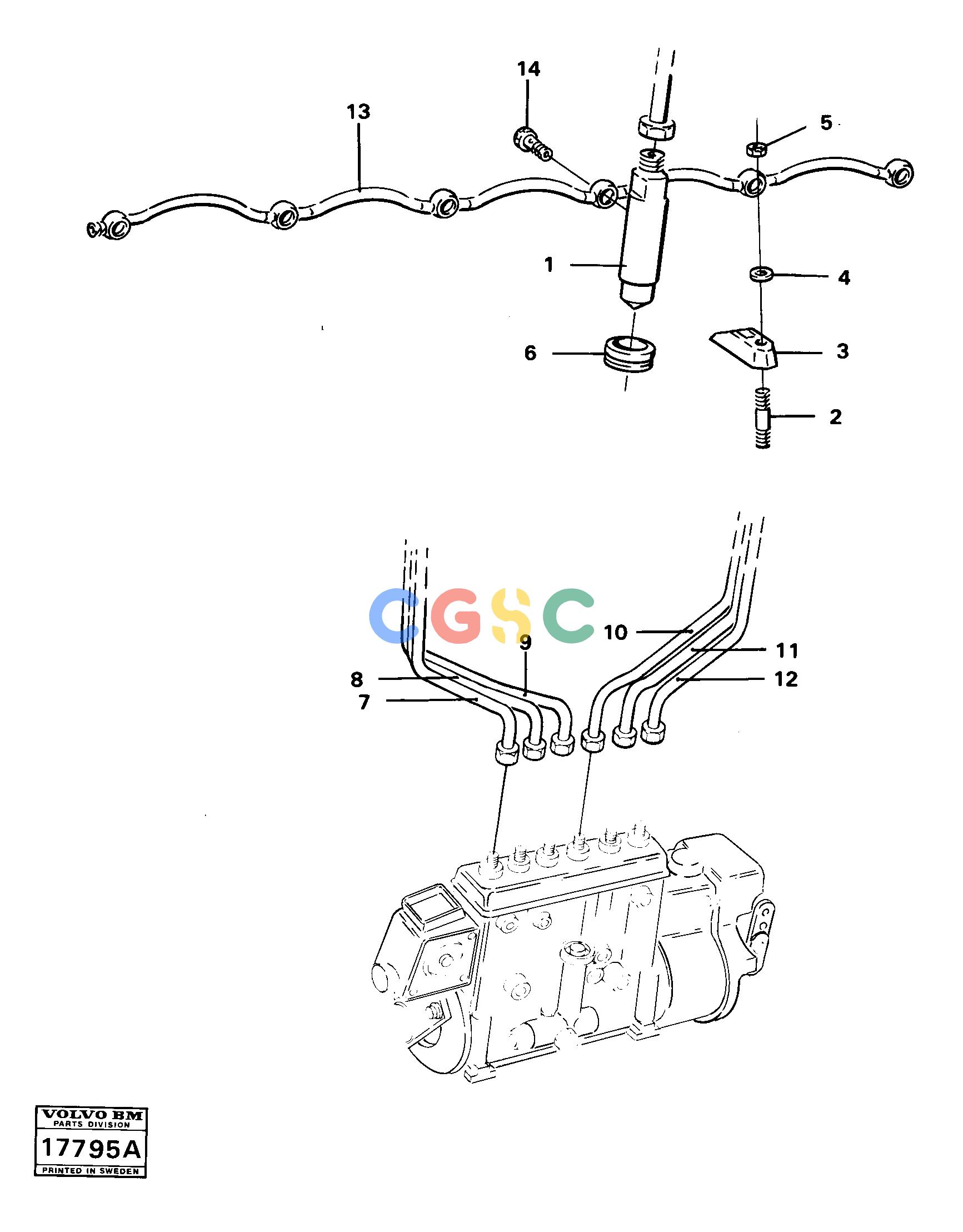

沃尔沃零件查询4600B Fuel system injectors4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
433 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13971086
|
[0006] |
Lock nut
|
|
| 6. |
VOE469455
|
[0006] |
Sealing ring
|
|
| 7. |
VOE1545091
|
[0001] |
Delivery pipe
|
|
| 8. |
VOE1545092
|
[0001] |
Delivery pipe
|
|
| 9. |
VOE1545093
|
[0001] |
Delivery pipe
|
|
| 1. |
|
[0006] |
Injector
|
|
| 10. |
VOE1545094
|
[0001] |
Delivery pipe
|
|
| 11. |
VOE479935
|
[0001] |
Delivery pipe
|
|
| 12. |
VOE479936
|
[0001] |
Delivery pipe
|
|
| 13. |
VOE1545081
|
[0001] |
Leak-off pipe
|
|
| 14. |
|
[0006] |
Hollow screw
|
|
| |
VOE7121563
|
[0005] |
Clamp
|
|
| |
VOE950045
|
[0005] |
Cross recessed screw
|
|
| 2. |
VOE1545022
|
[0006] |
Stud
|
|
| 3. |
VOE469797
|
[0006] |
Nozzle retainer
|
|
| 4. |
VOE13942336
|
[0006] |
Spring washer
|
|
