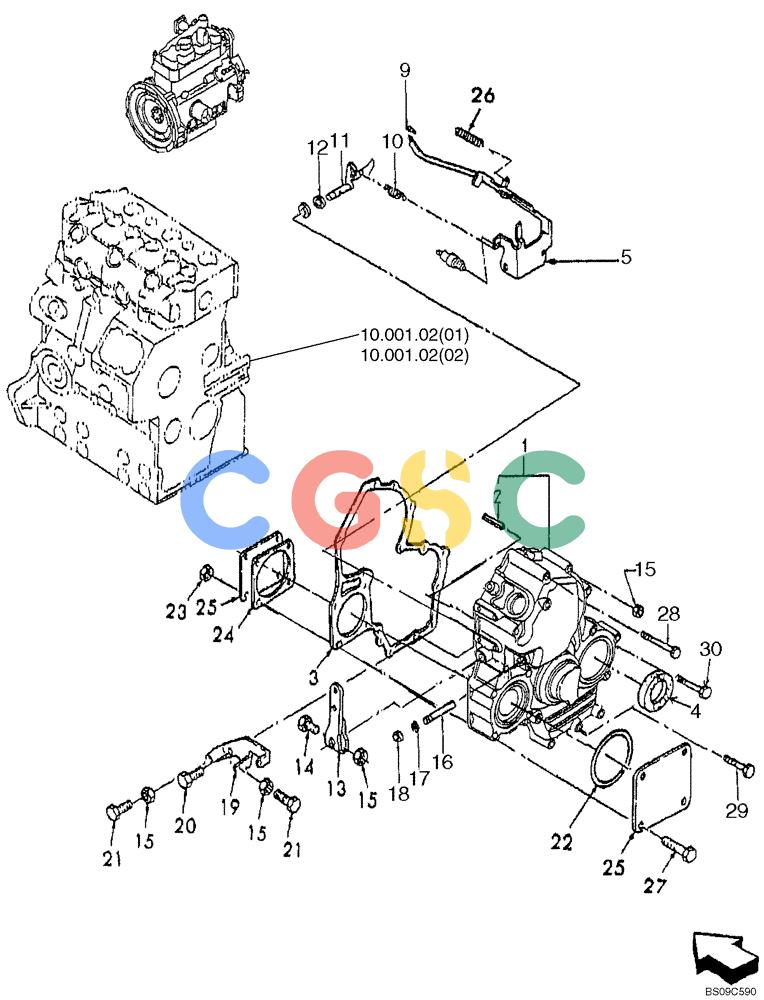

纽荷兰零件查询(ISM N844) - ISM ENGINE (10.106.03) - TIMING GEAR CASE, GOVERNOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
189 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | SBA165106840 | [1] | GEAR | WICTiming Gear, Incl. Ref 2 |
| 2. | SBA030300414 | [1] | PIN | NHSpring |
| 3. | SBA165996550 | [1] | GASKET | NH |
| 4. | SBA198636160 | [1] | SEAL,M35 x 55 x 11 | NHOil |
| 5. | SBA125046510 | [1] | LEVER | NHGovernor |
| 5. | SBA125046520 | [1] | LEVER | WICGovernor; L170 |
| 9. | SBA031100004 | [1] | SPRING | NHSnap |
| 10. | SBA198217380 | [1] | SPRING | SBAMain |
| 11. | SBA125156170 | [1] | ARM | NH |
| 12. | SBA052109110 | [1] | O-RING | NH |
| 13. | SBA125416300 | [1] | LEVER | SBASpeed |
| 14. | 43117 | [1] | SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8 | NH Superseded by part number: 87317695 |
| 15. | 9804276 | [4] | FLANGE NUT,M6 x 1.0, Cl 8 | NH |
| 16. | SBA125116141 | [1] | ROD | NH |
| 17. | SBA052109108 | [1] | O-RING | NH |
| 18. | SBA036800005 | [1] | SNAP RING | NH |
| 19. | SBA125976120 | [1] | BRACKET | SBA |
| 20. | SBA011310614 | [2] | BOLT | NHCL 8.8, M6 x 1 x 14 |
| 21. | SBA010109264 | [2] | BOLT | NH |
| 22. | SBA052300600 | [1] | O-RING,G60 | NH |
| 23. | 9804277 | [4] | FLANGE NUT,M8 x 1.25, Cl 8 | NH |
| 24. | SBA165996610 | [1] | GASKET | WIC |
| 25. | SBA165206010 | [2] | COVER | SBA |
| 26. | SBA198217560 | [1] | SPRING | DUBStart |
| 27. | SBA011510865 | [4] | BOLT | DUB |
| 28. | SBA011310680 | [2] | BOLT | NH |
| 29. | SBA011310645 | [7] | CAPTIVE WASHER SCREW,Hex, M6 x 45, Cl 8.8 | NH |
| 30. | SBA011310660 | [3] | BOLT | NH |
