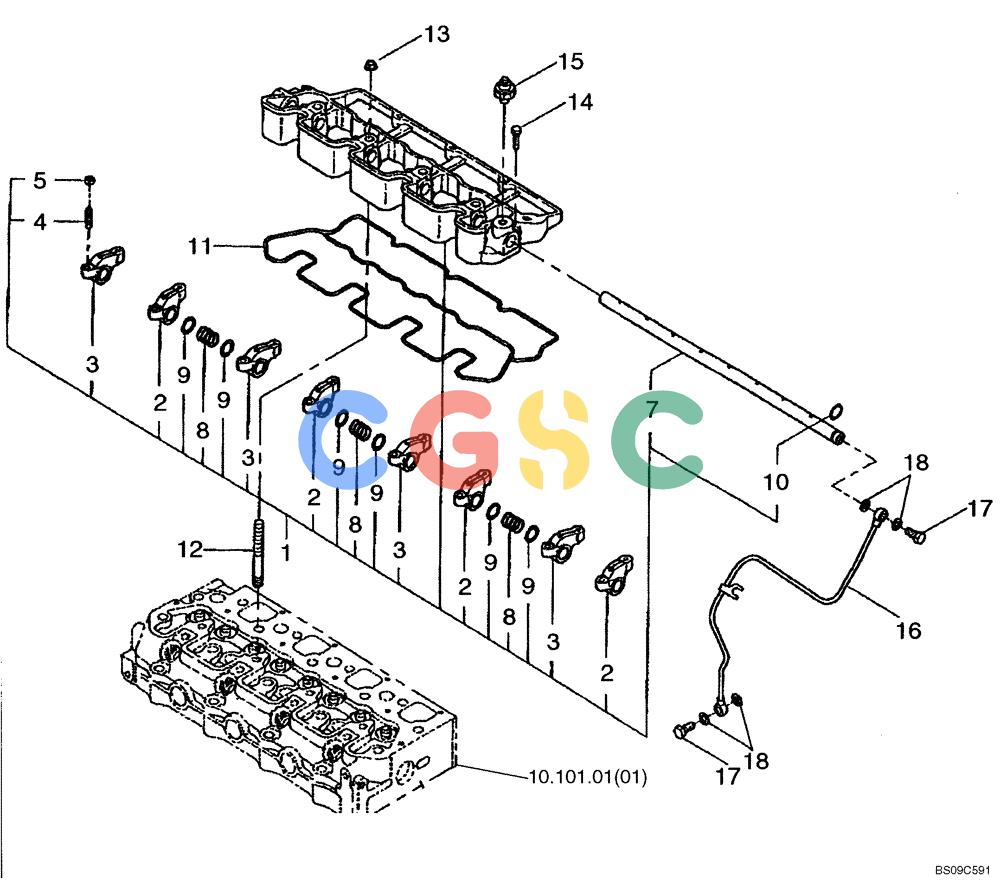

纽荷兰零件查询(ISM N844) - ISM ENGINE (10.106.05[01]) - ROCKER ARMS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | SBA120036830 | [1] | ROCKER ARM | WICL160 |
| 2. | SBA120356131 | [4] | ROCKER ARM | NHIntake, Complete |
| 3. | SBA120356141 | [4] | ROCKER ARM | NHExhaust, Complete |
| 4. | SBA199486220 | [8] | ADJUSTMENT SCREW | NH |
| 5. | SBA020109076 | [8] | NUT | NH |
| 7. | SBA120316201 | [1] | SHAFT | NHRocker Arm |
| 8. | SBA198217170 | [3] | SPRING | NH |
| 9. | SBA199280300 | [6] | SHIM,0.5mm Thk | NH |
| 10. | SBA052109076 | [1] | O-RING,2.4mm Thk x 10.8mm ID | NH |
| 11. | SBA120996130 | [1] | GASKET | DUB |
| 12. | SBA012109044 | [4] | STUD | NH |
| 13. | 9804278 | [4] | FLANGE NUT,M10 x 1.5, Cl 8 | NH |
| 14. | SBA011310635 | [2] | CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8 | NH |
| 15. | SBA185246060 | [1] | SENDER UNIT | NHOil Pressure Switch Superseded by part number: SBA185246330 |
| 16. | SBA140606720 | [1] | TUBE | NHTC40D |
| 17. | SBA198486780 | [2] | BANJO BOLT | NH |
| 18. | SBA140996260 | [4] | SEAL | NH |
