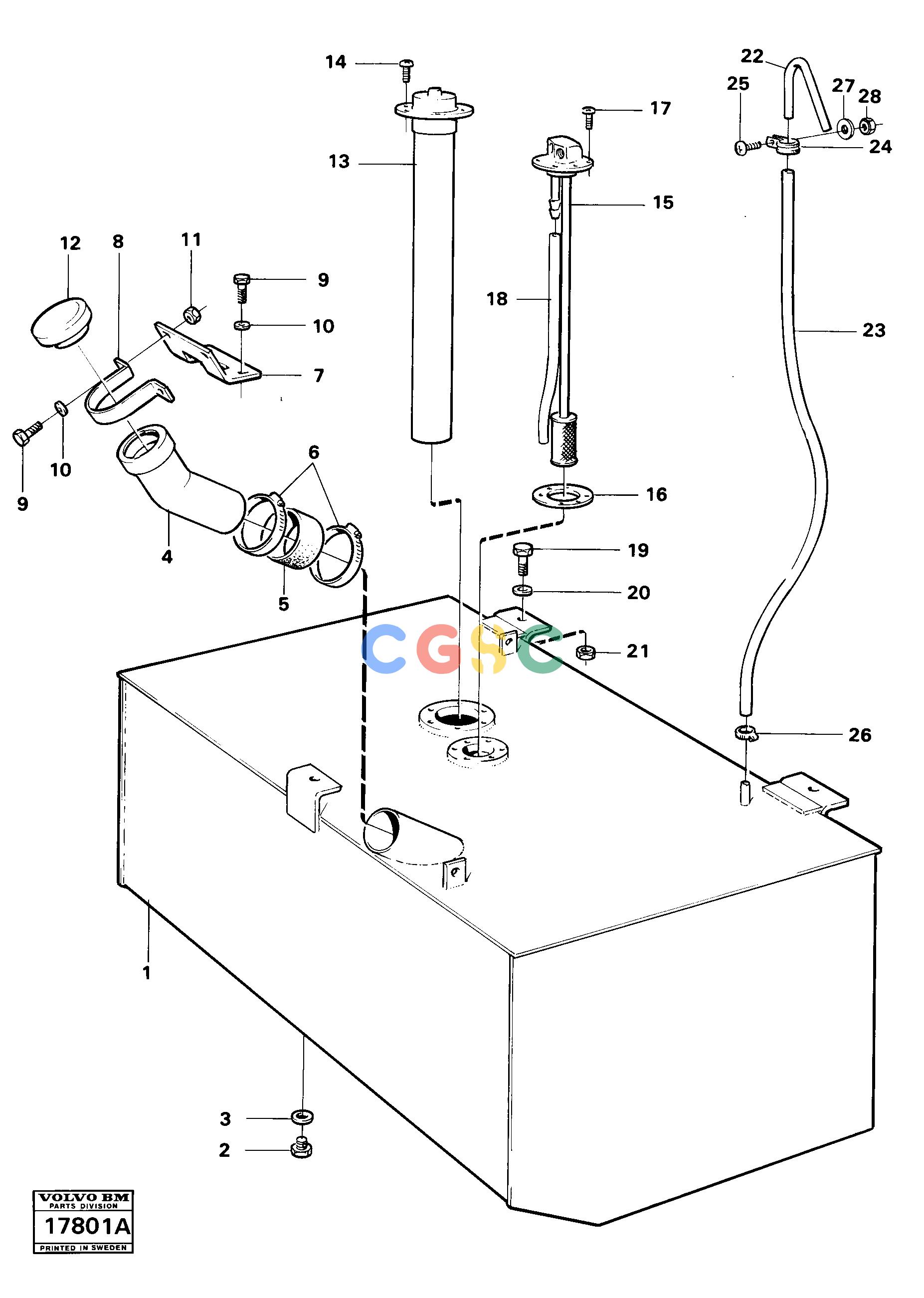

沃尔沃零件查询4600B Fuel tank4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
944 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4880993
|
[0001] |
Sleeve
|
|
| 6. |
VOE943484
|
[0002] |
Hose clamp
|
D1=138 SER NO - 2293
|
| |
VOE943483
|
[0002] |
Hose clamp
|
D1=112 SER NO 2294 -
|
| 7. |
VOE4951587
|
[0001] |
Bracket
|
STD
|
| |
VOE4951686
|
[0001] |
Bracket
|
|
| 8. |
|
[0001] |
Clamp
|
|
| 9. |
VOE13955295
|
[0004] |
Screw
|
|
| 1. |
VOE4935488
|
[0001] |
Fuel tank
|
|
| 10. |
VOE13960141
|
[0004] |
Washer
|
|
| 11. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 12. |
VOE1189577
|
[0001] |
Filler cap
|
LÅSBART / LOCKABLE
|
| |
VOE1698164
|
[0001] |
Gasket
|
|
| |
VOE11991396
|
[0002] |
Key
|
|
| 13. |
VOE4787245
|
[0001] |
Tank unit
|
|
| 14. |
VOE956092
|
[0006] |
Cross recessed screw
|
|
| |
VOE957170
|
[0006] |
Gasket
|
DI=6,5: SER NO 2294 -
|
| 15. |
VOE4935493
|
[0001] |
Strainer
|
|
| 16. |
VOE7089865
|
[0001] |
Gasket
|
|
| 17. |
VOE956184
|
[0005] |
Cross recessed sunk screw
|
|
| 18. |
VOE941279
|
[REQ] |
Hose
|
L = 470
|
| 19. |
VOE13955366
|
[0003] |
Screw
|
|
| 2. |
VOE914392
|
[0003] |
Plug
|
|
| 20. |
VOE13955900
|
[0006] |
Washer
|
|
| 21. |
VOE963110
|
[0003] |
Lock nut
|
|
| 22. |
|
[0001] |
Pipe
|
|
| 23. |
VOE941507
|
[REQ] |
Hose
|
L = 1250
|
| 24. |
VOE13949747
|
[0001] |
Clamp
|
|
| 25. |
VOE13955295
|
[0001] |
Screw
|
|
| 26. |
VOE943470
|
[0001] |
Hose clamp
|
|
| 27. |
VOE13955894
|
[0001] |
Washer
|
|
| 28. |
VOE946036
|
[0001] |
Lock nut
|
|
| 3. |
VOE957184
|
[0003] |
Gasket
|
|
| 4. |
VOE4935489
|
[0001] |
Filler pipe
|
|
| |
VOE4951588
|
[0001] |
Filler pipe
|
|
