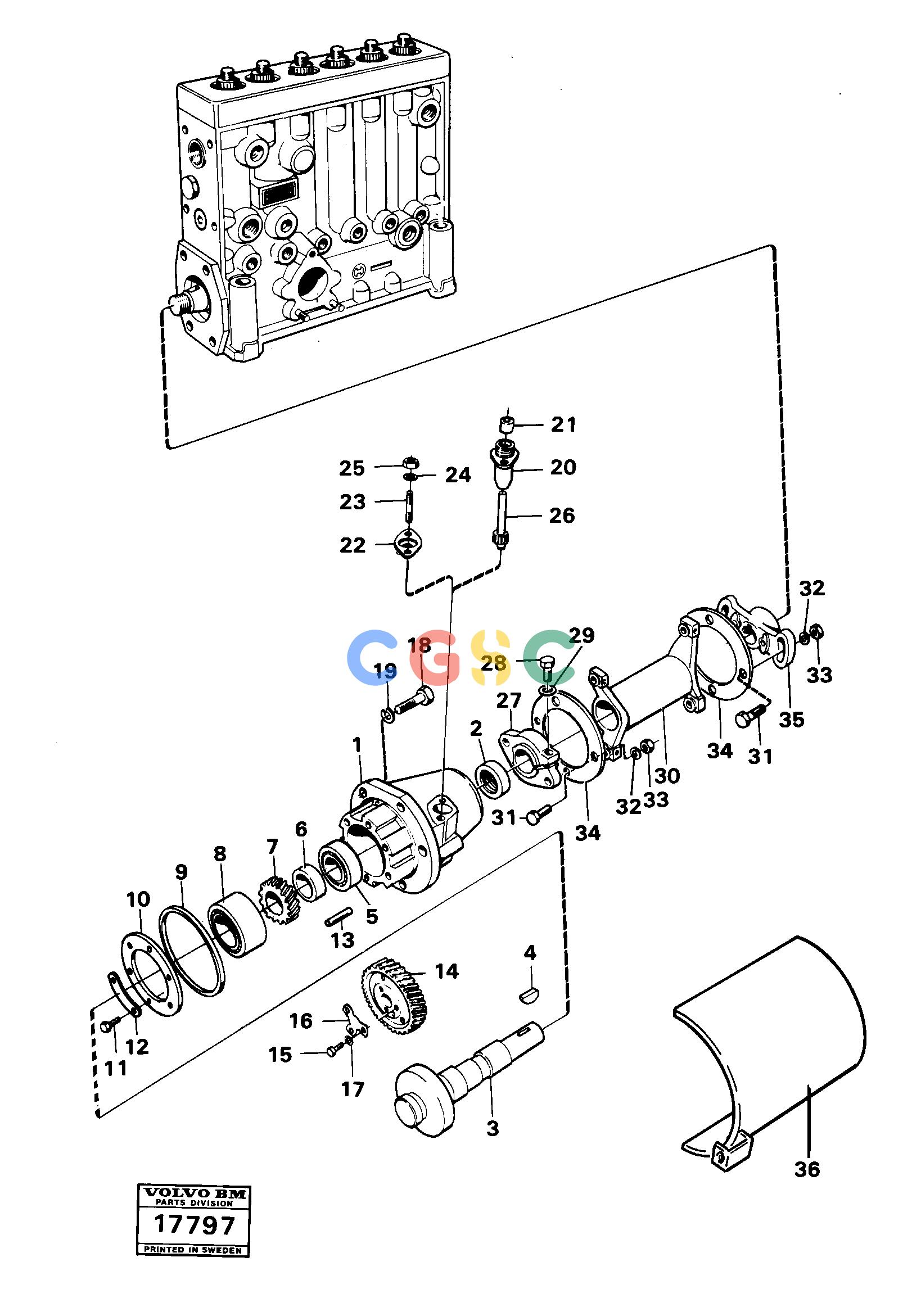

沃尔沃零件查询4600B Pump drive4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
722 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE7011013
|
[0001] |
Bearing
|
|
| 6. |
VOE469363
|
[0001] |
Stop ring
|
|
| 7. |
VOE469364
|
[0001] |
Drive Gear
|
|
| 8. |
VOE11000284
|
[0001] |
Ball bearing
|
|
| 9. |
VOE423123
|
[0001] |
Sealing ring
|
|
| 1. |
VOE421074
|
[0001] |
Bearing housing
|
MO - 209897
|
| 10. |
VOE423074
|
[0001] |
Washer
|
|
| 11. |
VOE940100
|
[0006] |
Hexagon screw
|
|
| 12. |
VOE421415
|
[0003] |
Lock washer
|
|
| 13. |
VOE950586
|
[0001] |
Pin
|
|
| 14. |
VOE423079
|
[0001] |
Gear
|
|
| |
VOE469210
|
[0001] |
Bearing housing
|
MO 209898 -
|
| 15. |
VOE921646
|
[0003] |
Screw
|
|
| 16. |
VOE467052
|
[0002] |
Lock washer
|
|
| 17. |
VOE467055
|
[0003] |
Washer
|
|
| |
VOE13942336
|
[0006] |
Spring washer
|
|
| 18. |
VOE955525
|
[0004] |
Hexagon screw
|
L=25: MO - 209897
|
| |
VOE955525
|
[0005] |
Hexagon screw
|
L=25: MO 209898 -
|
| |
VOE13955527
|
[0001] |
Screw
|
L=57: MO - 209897
|
| |
VOE13955675
|
[0003] |
Screw
|
L=25:
|
| 2. |
VOE424580
|
[0001] |
Seal
|
|
| 19. |
VOE13941907
|
[0005] |
Washer
|
|
| 20. |
VOE823474
|
[0001] |
Bearing housing
|
|
| 21. |
VOE7191776
|
[0002] |
Bushing
|
|
| 22. |
VOE422130
|
[0001] |
Gasket
|
MO - 209897,
|
| 23. |
VOE953224
|
[0002] |
Stud
|
MO - 209897
|
| 24. |
VOE13941906
|
[0002] |
Washer
|
MO - 209897:
|
| 25. |
VOE955825
|
[0002] |
Hexagon nut
|
MO - 209897
|
| 26. |
VOE422125
|
[0001] |
Axle shaft
|
|
| 27. |
VOE422184
|
[0001] |
Companion flange
|
|
| 28. |
VOE13940160
|
[0001] |
Screw
|
|
| 3. |
VOE422073
|
[0001] |
Shaft
|
|
| 29. |
VOE955896
|
[0001] |
Plain washer
|
|
| 30. |
VOE471367
|
[0001] |
Intmd Section
|
|
| 31. |
VOE422469
|
[0002] |
Screw
|
L=23
|
| |
VOE13955675
|
[0002] |
Screw
|
L=25
|
| |
VOE955676
|
[0004] |
Hexagon screw
|
L=32
|
| 32. |
VOE13940097
|
[0002] |
Washer
|
D=18
|
| |
VOE417514
|
[0008] |
Washer
|
D=22
|
| 33. |
VOE422187
|
[0008] |
Nut
|
|
| 34. |
VOE479459
|
[0006] |
Companion disc
|
|
| 35. |
VOE422461
|
[0001] |
Companion flange
|
|
| 4. |
VOE422329
|
[0001] |
Key
|
|
| 36. |
VOE4777163
|
[0001] |
Protection
|
|
