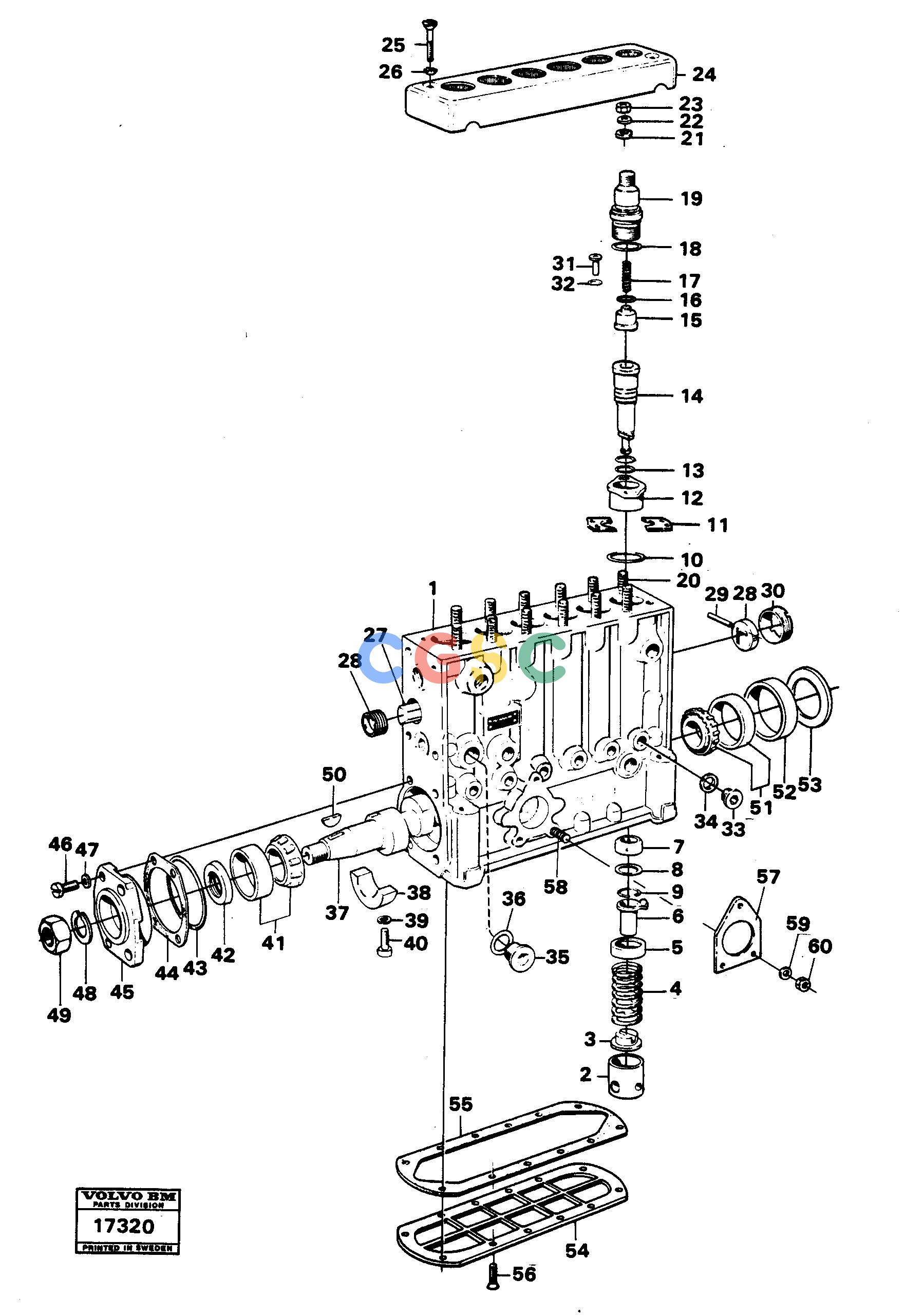

沃尔沃零件查询4600B Injection pump4600B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE244731
|
[0006] |
Compression spring
|
|
| 34. |
VOE13947281
|
[0006] |
Gasket
|
|
| 35. |
|
[0001] |
Plug
|
|
| 36. |
VOE13949327
|
[0001] |
O-ring
|
|
| 37. |
VOE845454
|
[0001] |
Camshaft
|
|
| 38. |
VOE244406
|
[0001] |
Center Bearing
|
|
| 39. |
VOE13941906
|
[0002] |
Washer
|
|
| 40. |
VOE240427
|
[0002] |
Screw
|
|
| 41. |
VOE240023
|
[0001] |
Roller bearing
|
|
| 42. |
VOE240022
|
[0001] |
Sealing ring
|
|
| 43. |
VOE243299
|
[0001] |
Gasket
|
|
| 5. |
VOE239984
|
[0006] |
Spring disc
|
|
| 44. |
VOE240024
|
[REQ] |
Shim
|
THICK=0,10
|
| |
VOE240025
|
[REQ] |
Shim
|
THICK=0,12
|
| |
VOE240026
|
[REQ] |
Shim
|
THICK=0,14
|
| |
VOE240027
|
[REQ] |
Shim
|
THICK=0,16
|
| |
VOE7240028
|
[REQ] |
Shim
|
THICK=0,18
|
| |
VOE240029
|
[REQ] |
Shim
|
THICK=0,20
|
| |
VOE240030
|
[REQ] |
Shim
|
THICK=0,50
|
| 45. |
VOE240021
|
[0001] |
Bearing cover
|
|
| 46. |
VOE956094
|
[0004] |
Cross recessed screw
|
|
| 47. |
VOE13941906
|
[0004] |
Washer
|
|
| 6. |
VOE240782
|
[0006] |
Sleeve
|
|
| 48. |
VOE941913
|
[0001] |
Spring washer
|
|
| 49. |
VOE955806
|
[0001] |
Hexagon nut
|
|
| 50. |
VOE7035168
|
[0001] |
Key
|
|
| 51. |
VOE240023
|
[0001] |
Roller bearing
|
|
| 52. |
VOE240032
|
[0001] |
Ring
|
|
| 53. |
VOE240033
|
[REQ] |
Shim
|
THICK=1,2
|
| |
VOE240034
|
[REQ] |
Shim
|
THICK=1,5
|
| |
VOE240035
|
[REQ] |
Shim
|
THICK=1,8
|
| |
VOE240036
|
[REQ] |
Shim
|
THICK=2,0
|
| 54. |
VOE11994489
|
[0001] |
Cover
|
|
| 7. |
VOE239991
|
[0006] |
Ring
|
|
| 55. |
VOE11998363
|
[0001] |
Gasket
|
|
| 56. |
VOE956205
|
[0012] |
Cross recessed sunk screw
|
|
| 57. |
VOE863370
|
[0001] |
Gasket
|
|
| 58. |
VOE130673
|
[0003] |
Stud
|
|
| 59. |
VOE13941906
|
[0003] |
Washer
|
|
| 60. |
VOE13955781
|
[0003] |
Nut
|
|
| 8. |
VOE241677
|
[0006] |
Washer
|
|
| |
VOE244695
|
[0001] |
Injection Pump
|
|
| 9. |
VOE1697953
|
[0006] |
Lock ring
|
|
| 10. |
VOE846937
|
[0006] |
O-ring
|
|
| 11. |
VOE844990
|
[REQ] |
Shim
|
THICK=0,40
|
| |
VOE844991
|
[REQ] |
Shim
|
THICK=0,50
|
| |
VOE844992
|
[REQ] |
Shim
|
THICK=0,70
|
| |
VOE844993
|
[REQ] |
Shim
|
THICK=0,80
|
| |
VOE844994
|
[REQ] |
Shim
|
THICK=1,00
|
| |
VOE844995
|
[REQ] |
Shim
|
THICK=1,10
|
| |
VOE244633
|
[REQ] |
Shim
|
THICK=1,20
|
| |
VOE244634
|
[REQ] |
Shim
|
THICK=1,30
|
| 1. |
|
[0001] |
Housing
|
|
| |
VOE244635
|
[REQ] |
Shim
|
THICK=1,40
|
| |
VOE244381
|
[REQ] |
Shim
|
THICK=1,50
|
| |
VOE244382
|
[REQ] |
Shim
|
THICK=1,60
|
| |
VOE244383
|
[REQ] |
Shim
|
THICK=1,70
|
| |
VOE244384
|
[REQ] |
Shim
|
THICK=1,80
|
| |
VOE244385
|
[REQ] |
Shim
|
THICK=1,90
|
| |
VOE244386
|
[REQ] |
Shim
|
THICK=2,00
|
| 12. |
VOE244733
|
[0006] |
Flange
|
|
| 13. |
VOE240422
|
[0006] |
Sealing ring
|
|
| 14. |
VOE244730
|
[0006] |
Pump element
|
|
| 2. |
VOE244404
|
[0006] |
Tappet
|
|
| 15. |
VOE1698128
|
[0006] |
Delivery valve
|
|
| 16. |
VOE239993
|
[0006] |
Gasket
|
|
| 17. |
VOE240969
|
[0006] |
Spring
|
|
| 18. |
VOE240001
|
[0006] |
O-ring
|
|
| 19. |
VOE11703763
|
[0006] |
Delivery valve retainer
|
|
| 20. |
VOE244380
|
[0012] |
Stud
|
|
| 21. |
VOE243743
|
[0012] |
Washer
|
|
| 22. |
VOE941908
|
[0012] |
Spring washer
|
|
| 23. |
VOE13971074
|
[0012] |
Hexagon nut
|
|
| 24. |
VOE240011
|
[0001] |
Cover
|
|
| 3. |
VOE244685
|
[0006] |
Spring disc
|
|
| 25. |
VOE956209
|
[0002] |
Cross recessed sunk screw
|
|
| 26. |
VOE7018891
|
[0002] |
Lock washer
|
|
| 27. |
VOE241746
|
[0001] |
Control rod
|
|
| 28. |
VOE240014
|
[0001] |
Guide sleeve
|
|
| 29. |
VOE244008
|
[0001] |
Lock pin
|
|
| 30. |
|
[0001] |
Bushing
|
|
| 31. |
VOE240971
|
[0006] |
Plug
|
|
| 32. |
VOE240972
|
[REQ] |
Shim
|
THICK=0,2
|
| |
VOE240973
|
[REQ] |
Shim
|
THICK=0,5
|
| 33. |
VOE960628
|
[0006] |
Plug
|
|
