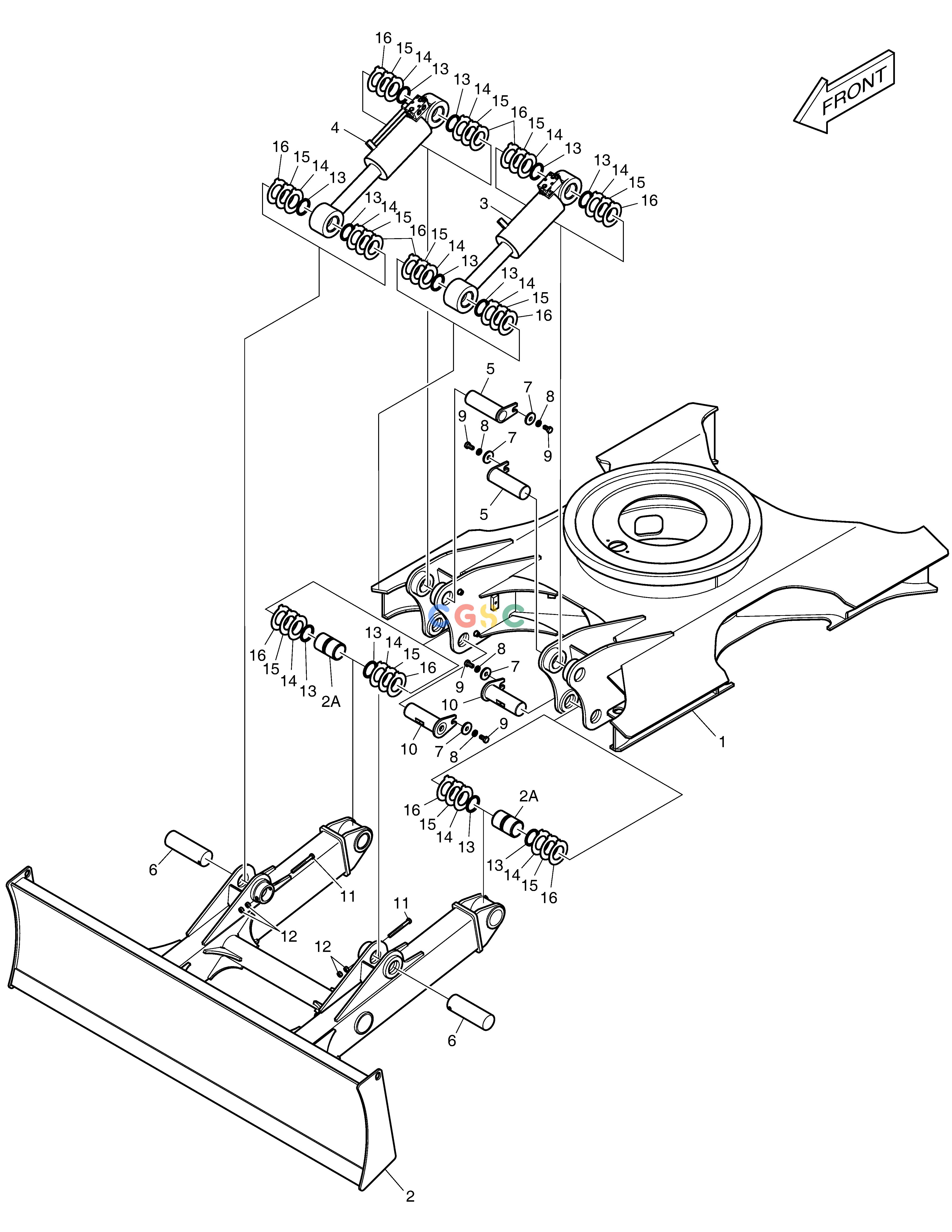

斗山零件查询BLADE - NARROW DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
727 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
9608-1022
|
[-] |
|
|
| 1. |
9604-1140
|
[1] |
|
|
| 10. |
K1007931A
|
[2] |
PIN
|
|
| 11. |
S0567066
|
[2] |
BOLT
|
|
| 12. |
S4012933
|
[4] |
NUT
|
|
| 13. |
2180-9055
|
[12] |
SEAL;DUST
|
|
| 14. |
DS7752078
|
[12] |
SHIM
|
|
| 15. |
DS7752013
|
[12] |
SHIM
|
|
| 16. |
DS7752012
|
[12] |
SHIM
|
|
| 2. |
9608-1021
|
[1] |
|
|
| 2A. |
K1006525
|
[2] |
BUSHING
|
|
| 3. |
K1008331B
|
[1] |
CYLINDER;DOZER(R.H)
|
|
| 4. |
K1008330B
|
[1] |
CYLINDER;DOZER(L.H)
|
|
| 5. |
K1006515B
|
[2] |
PIN
|
|
| 6. |
9123-1085
|
[2] |
PIN
|
|
| 7. |
4114-4078A
|
[4] |
WASHER
|
|
| 8. |
S5102703
|
[4] |
WASHER
|
|
| 9. |
S0515066
|
[4] |
BOLT
|
|
