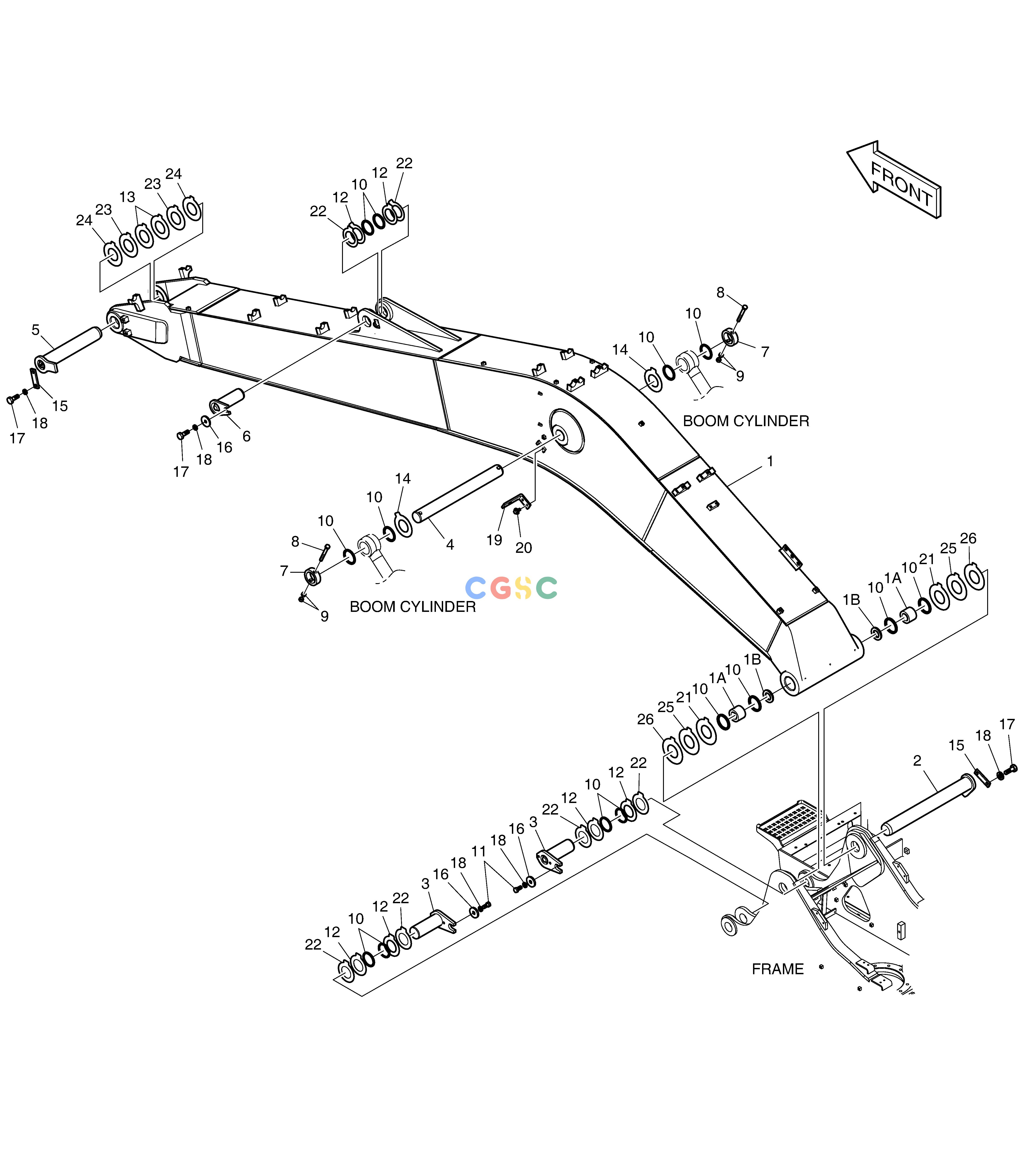

斗山零件查询BOOM - 5.6m DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
9701-1104
|
[-] |
BOOM ASS'Y
|
|
| 1. |
701-00077
|
[1] |
BOOM SUB ASS'Y-5.6m
|
|
| 10. |
2180-1106BD4
|
[14] |
SEAL;DUST
|
|
| 11. |
S0521266
|
[2] |
BOLT
|
|
| 12. |
DS7752004
|
[6] |
SHIM
|
|
| 13. |
DS7752008
|
[2] |
SHIM
|
|
| 14. |
DS7752003
|
[2] |
SHIM
|
|
| 15. |
621-03710A
|
[2] |
PLATE,STOPPER
|
|
| 16. |
2116-1060D6
|
[3] |
STOPPER
|
|
| 17. |
S0521366
|
[5] |
BOLT
|
|
| 18. |
S5102903
|
[7] |
WASHER
|
|
| 19. |
2195-2394B
|
[2] |
BRACKET
|
|
| 1A. |
2110-1327A
|
[2] |
BUSHING
|
|
| 1B. |
2180-1106BD4
|
[2] |
SEAL;DUST
|
|
| 2. |
123-00671B
|
[1] |
PIN
|
|
| 20. |
DS0025019
|
[4] |
BOLT
|
|
| 21. |
DS7752011
|
[2] |
SHIM
|
|
| 22. |
DS7752005
|
[6] |
SHIM
|
|
| 23. |
DS7752009
|
[2] |
SHIM
|
|
| 24. |
DS7752090
|
[2] |
SHIM
|
|
| 25. |
DS7752089
|
[2] |
SHIM
|
|
| 26. |
DS7752023
|
[2] |
SHIM
|
|
| 3. |
K1038739
|
[2] |
PIN
|
|
| 4. |
K1004508A
|
[1] |
PIN
|
|
| 5. |
K1038740
|
[1] |
PIN
|
|
| 6. |
K1038741
|
[1] |
PIN
|
|
| 7. |
2116-1532A
|
[2] |
STOPPER
|
|
| 8. |
S0566966
|
[2] |
BOLT
|
|
| 9. |
S4012933
|
[4] |
NUT
|
|
