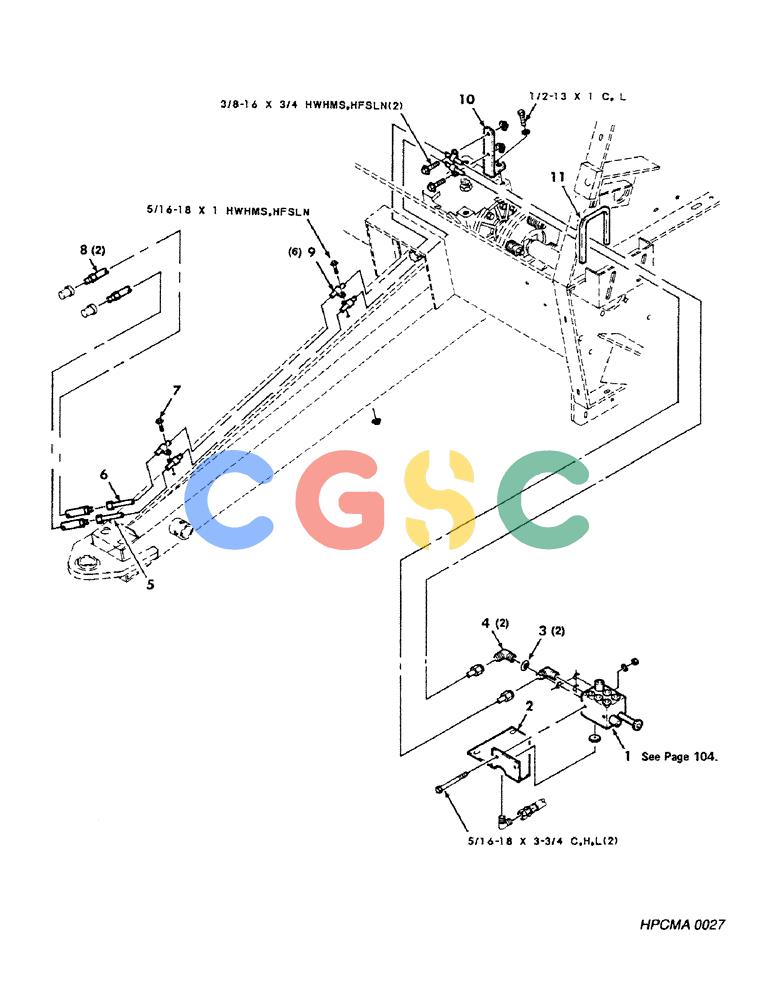

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (084) - HYDRAULIC, PRIMARY TO VALVE, ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
881 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700707256
|
[1] |
VALVE
|
CAS
- Tensioner, Bale
|
| 2. |
700117087
|
[2] |
SUPPORT
|
HFI
- Valve
|
| 3. |
7037781
|
[2] |
O-RING
|
CAS
Superseded by part number: 237-6008, 237-6008, 279706
|
| 4. |
700701358
|
[2] |
ELBOW
|
CAS
90 Degree Elbow (Includes O-Ring)
|
| 5. |
700707259
|
[1] |
LINE
|
CAS
- Hydraulic
|
| 6. |
700707260
|
[1] |
LINE
|
CAS
- Hydraulic
|
| 7. |
7702012
|
[1] |
SELF-TAP SCREW,3/8" - 16 x 1"
|
CAS
3/8-16 x 1 HWHTCTS
|
| 8. |
7072135
|
[2] |
HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2
|
IH
Hose - Hydraulic
|
| 9. |
751487
|
[6] |
CLAMP
|
CAS
- Line Superseded by part number: 86632595
|
| 10. |
700116032
|
[1] |
STRAP
|
HFI
- Support
|
| 11. |
700117736
|
[1] |
ADHESIVE STRIP
|
CAS
Trim - Rubber Superseded by part number: 700117735
|
| . . |
873018
|
[2] |
BOLT,5/16" - 18 x 3 3/4", Gr 5
|
HFI
5/16-18 x 3-3/4 C
|
| . . |
703959
|
[1] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
|
CAS
1/2-13 x 1 C
|
| . . |
7883382
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 120M
|
CAS
5/16-18 x 1 HWHMS Superseded by part number: 87034804
|
| . . |
7883374
|
[2] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 255918
|
