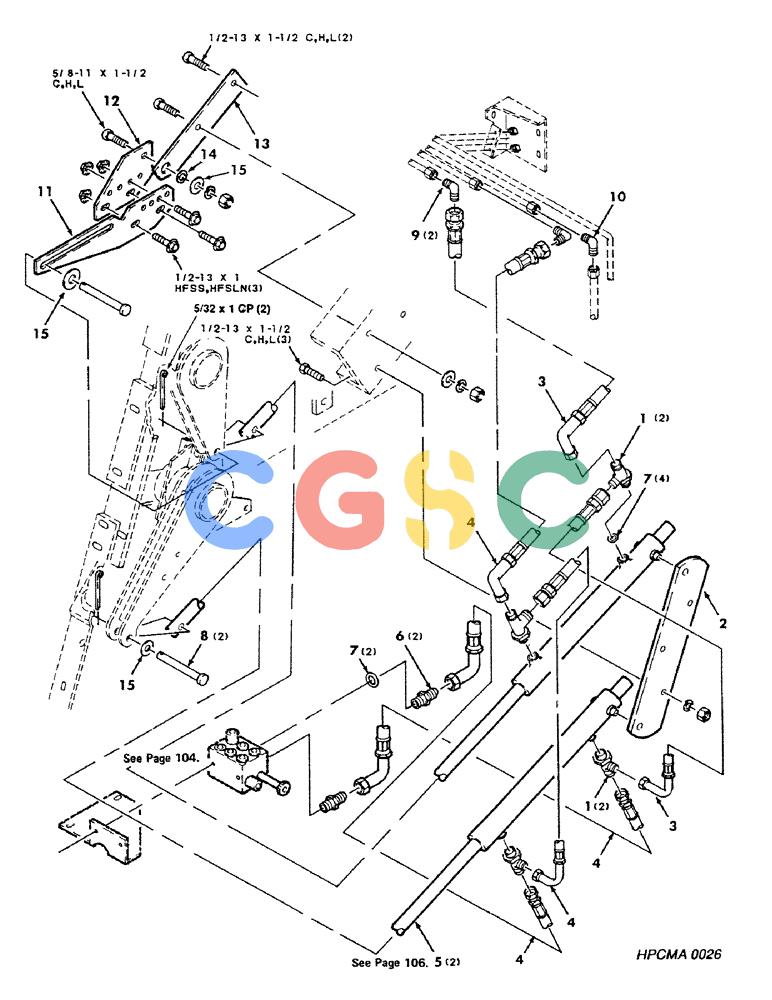

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (086) - HYDRAULIC, TENSION CONTROL, LEFT, ASSEMBLY, SERIAL NUMBER CFH0015001 THROUGH 0015274 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
393 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8046658
|
[4] |
TEE
|
CAS
with O-Ring Superseded by part number: 86513020
|
| 2. |
700116031
|
[1] |
PLATE
|
HFI
- Tie
|
| 3. |
700707286
|
[2] |
HOSE
|
CAS
- Hydraulic
|
| 4. |
700707279
|
[4] |
HOSE
|
HFI
- Hydraulic
|
| 5. |
700707784
|
[2] |
CYLINDER
|
CAS
- Hydraulic
|
| 6. |
846634
|
[2] |
COUPLING, BREAK AWAY
|
CAS
Connector - Flared (Includes O-Ring) Superseded by part number: 76350
|
| 7. |
738468
|
[6] |
O-RING
|
IH
|
| 8. |
700708068
|
[2] |
CLEVIS PIN,15.77mm OD x 68.66mm L
|
IH
5/8 x 2-1/2
|
| 9. |
791038
|
[2] |
ELBOW
|
CAS
- 90 Degree Superseded by part number: 241074
|
| 10. |
7046626
|
[1] |
ELBOW
|
CAS
Superseded by part number: 216791
|
| 11. |
700118819
|
[1] |
PLATE
|
HFI
|
| 12. |
700118820
|
[1] |
PLATE
|
HFI
|
| 13. |
700118821
|
[1] |
PLATE
|
HFI
|
| 14. |
700118822
|
[1] |
SPACER
|
CAS
|
| 15. |
87365
|
[3] |
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
|
NH
5/8 Narrow Plain Washer
|
| . . |
701235
|
[3] |
BOLT,1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 x 1-1/2 C
|
| . . |
7701758
|
[1] |
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5
|
CAS
5/8-11 x 1-1/2 C Superseded by part number: 88062
|
| . . |
7701592
|
[3] |
FLANGE BOLT,Hex Serr, 1/2" - 13 x 1"
|
CAS
1/2-13 x 1 HFSS Superseded by part number: 30944
|
