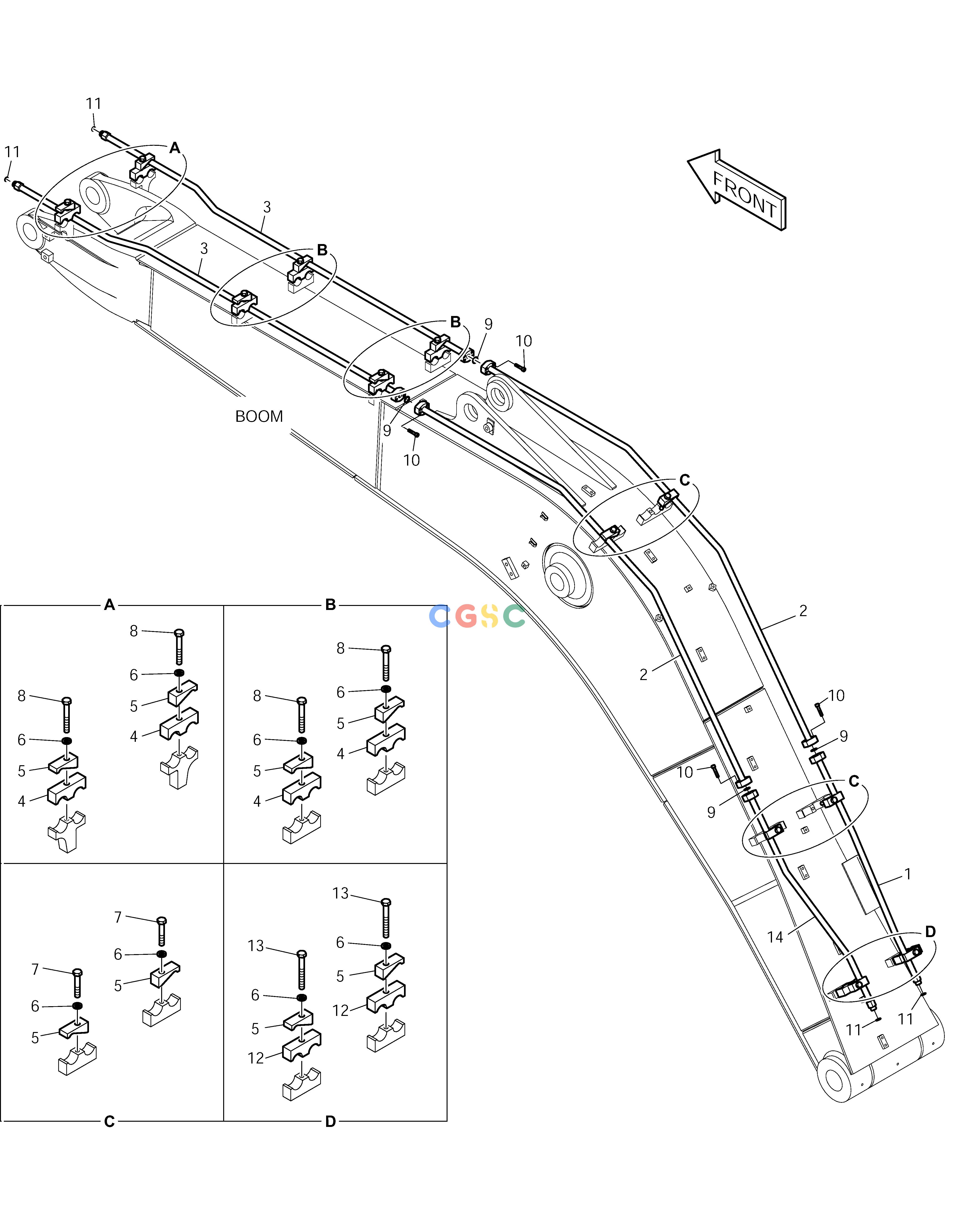

斗山零件查询BOOM PIPING - BOOM 4.6m(ROTATING) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
821 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01365
|
[-] |
BOOM PIPING(ROTATION)
|
|
| 1. |
140-01533C
|
[1] |
PIPE
|
|
| 10. |
S2209466
|
[16] |
BOLT
|
|
| 11. |
S8030081
|
[4] |
O-RING
|
|
| 12. |
K1000845A
|
[2] |
CLAMP;PIPE
|
|
| 13. |
S0561766
|
[2] |
BOLT
|
|
| 14. |
K1000844
|
[1] |
PIPE
|
|
| 2. |
140-01616
|
[2] |
PIPE
|
|
| 3. |
140-01535
|
[2] |
PIPE
|
|
| 4. |
K1004348
|
[8] |
CLAMP;PIPE
|
|
| 5. |
K1004349
|
[14] |
CLAMP
|
|
| 6. |
S5102703
|
[10] |
WASHER
|
|
| 7. |
S0561366
|
[4] |
BOLT
|
|
| 8. |
S0561566
|
[4] |
BOLT
|
|
| 9. |
2180-1026D30
|
[4] |
O-RING
|
|
