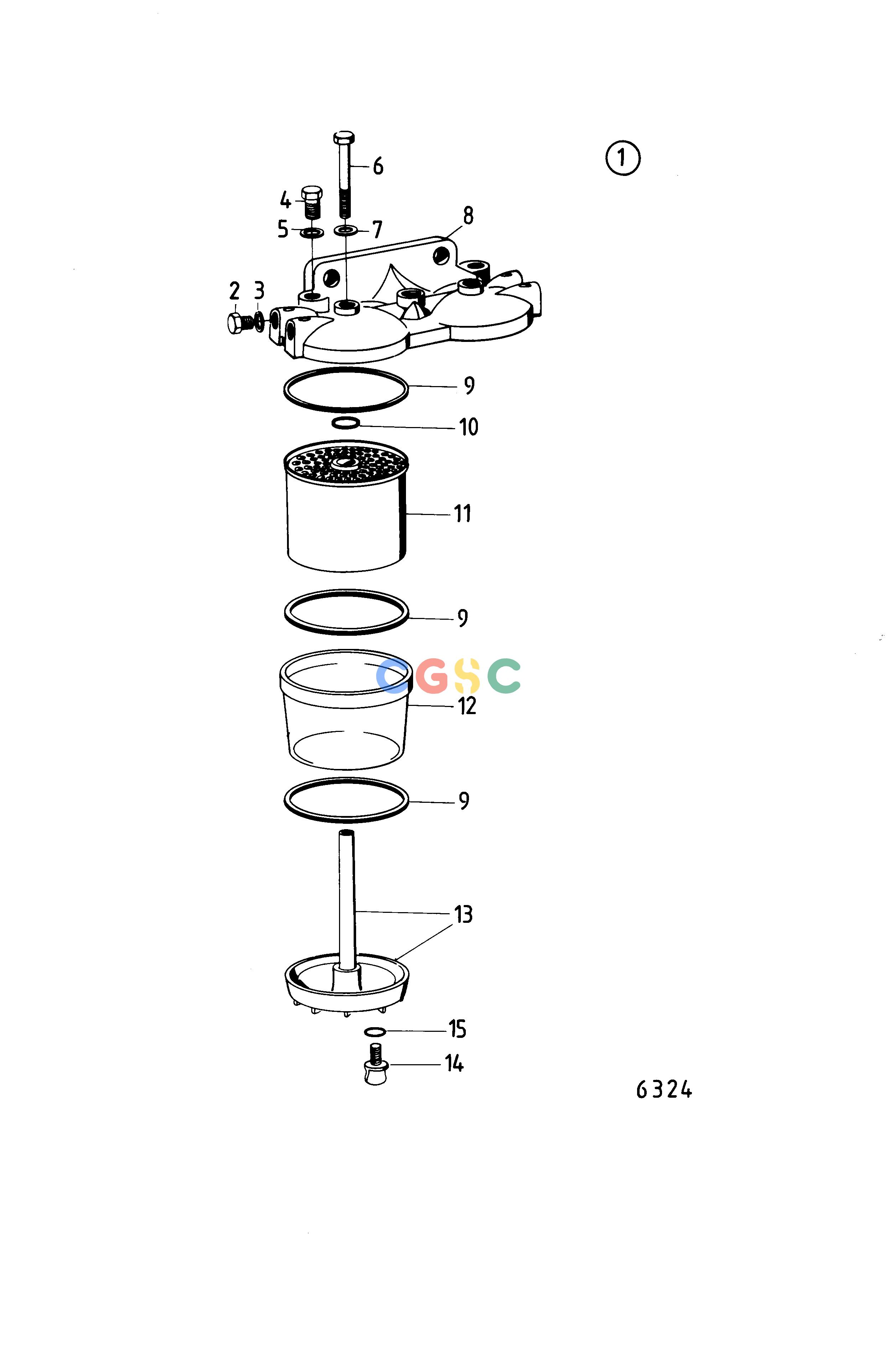

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TMiscellaneous EquipmentFuel FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
872 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
821092
|
[1] |
Fuel filter
|
|
| 2. |
242359
|
[1] |
Plug
|
|
| 3. |
242360
|
[1] |
Washer
|
|
| 4. |
180723
|
[2] |
Plug
|
|
| 5. |
957173
|
[2] |
Gasket
|
|
| 6. |
192545
|
[2] |
Hexagon screw
|
|
| 7. |
242605
|
[4] |
Washer
|
|
| 8. |
|
|
|
|
| 9. |
1695000
|
[4] |
Sealing ring
|
D=78mm
|
| 9. |
1695001
|
[2] |
Sealing ring
|
D=80mm
|
| 10. |
236629
|
[2] |
Rubber ring
|
|
| 11. |
3581078
|
[2] |
Filter insert
|
|
| 12. |
818407
|
[2] |
Reservoir
|
|
| 13. |
242594
|
[2] |
Plate
|
|
| 14. |
862293
|
[2] |
Drain plug
|
(826648) (242595)
|
| 15. |
6643249
|
[2] |
Gasket
|
|
