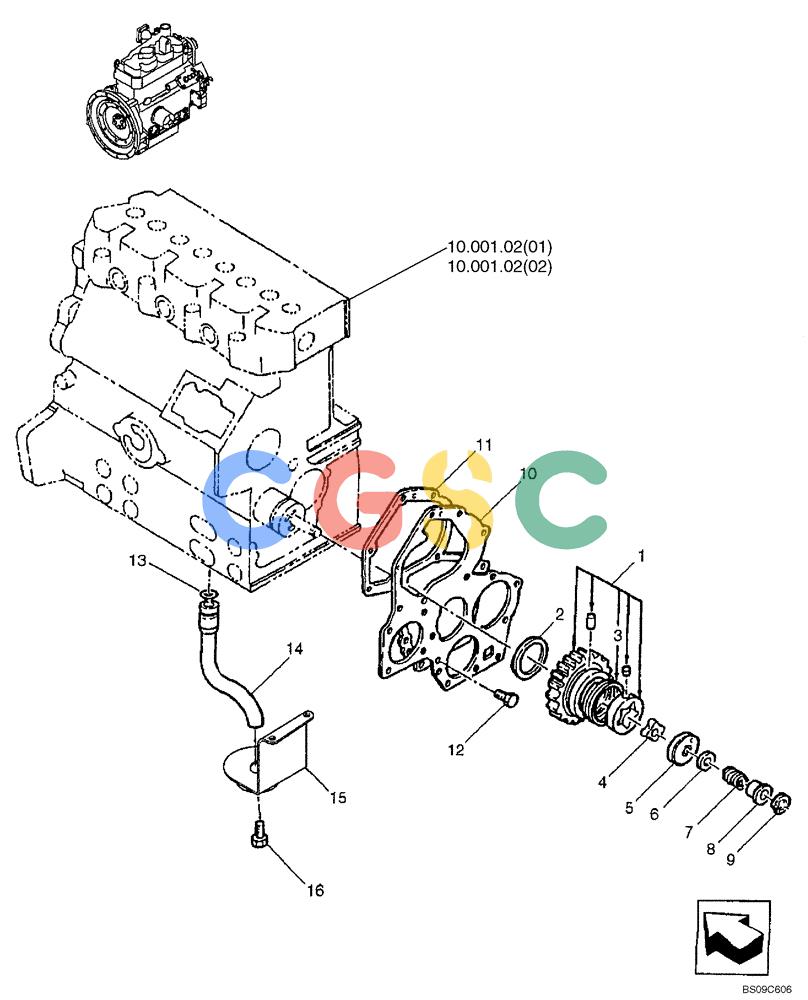

纽荷兰零件查询(ISM N844) - ISM ENGINE (10.304.01) - OIL PUMP & SUCTION FILTER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
344 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | SBA165026230 | [1] | IDLER GEAR | DUBIncl. Ref. 3 |
| 1. | SBA165026230R | [1] | REMAN-ENG OIL PUMP | DUB |
| 1. | SBA165026230C | [1] | CORE PUMP, ENGINE OIL | DUBReturn Number |
| 2. | SBA199266270 | [1] | WASHER, THRUST | DUB |
| 3. | SBA198216821 | [1] | SPRING | NH Superseded by part number: SBA198217760 |
| 4. | SBA140166250 | [1] | GEROTOR | DUB |
| 5. | SBA140116220 | [1] | COVER | DUBOil Pump |
| 6. | SBA199286150 | [1] | SHIM,0.1mm Thk | NH |
| 6. | SBA199286160 | [1] | SHIM,0.15mm Thk | NH |
| 6. | SBA199286170 | [1] | SHIM,0.2mm Thk | NH |
| 6. | SBA199286180 | [1] | SHIM,0.5mm Thk | NH |
| 7. | SBA198216720 | [1] | SPRING | NH |
| 8. | SBA199236540 | [1] | COLLAR | NH |
| 9. | SBA036800010 | [1] | SNAP RING | NH Superseded by part number: 9635806 |
| 10. | SBA165166650 | [1] | PLATE | WICPLATE, Front |
| 11. | SBA165996540 | [1] | GASKET | NH |
| 12. | SBA011310612 | [2] | CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8 | NH Superseded by part number: SBA010700610 |
| 13. | SBA052109076 | [1] | O-RING,2.4mm Thk x 10.8mm ID | NH |
| 14. | SBA140986820 | [1] | TUBE | SBAOil Pickup Superseded by part number: SBA140987090 |
| 15. | SBA140406490 | [1] | FILTER SCREEN | SBASuction |
