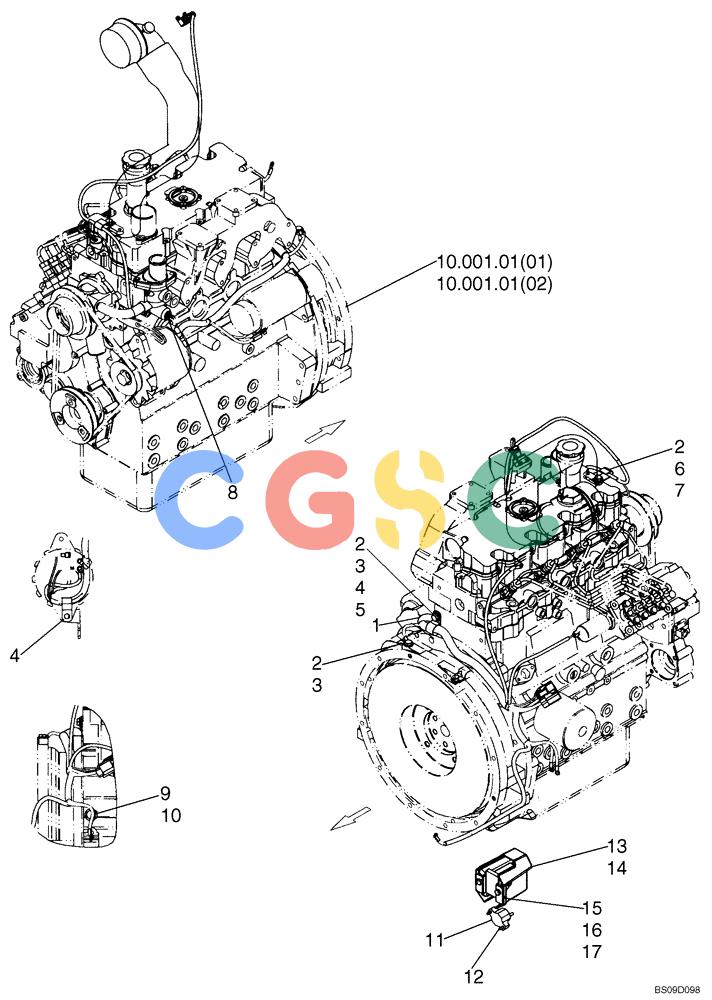

纽荷兰零件查询(ISM N844) - ISM ENGINE (55.100.01[01]) - ELECTRIC - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
935 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87462056 | [1] | HARNESS | WICISM Engine Superseded by part number: 87482504 |
| 2. | 322358 | [3] | BELLEVILLE WASHER,M8 x 18mm OD x 1.4mm Thk | NH |
| 3. | 120103 | [2] | BOLT,M8 x 1.25 x 16mm, Cl 8.8 | NH Superseded by part number: 16043224 |
| 4. | 87029955 | [2] | CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type | WICClamp; Insulated 22.2 mm, 3/8 in. Bolt ZND |
| 5. | 80701 | [1] | WASHER,0.31" ID x 0.73" OD x 0.07" Thk | NH |
| 6. | 134579 | [1] | WIRE CLAMP,J | NH |
| 7. | 120104 | [1] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8 | NH |
| 8. | 87307746 | [1] | TEMPERATURE SENDER | BASHyd Oil And Engine Coolant Temp Sensor Superseded by part number: 9712608 |
| 9. | 43138 | [1] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8 | NH |
| 10. | 86639325 | [1] | WASHER,10.8mm ID x 24.5mm OD x 3mm Thk | FAR |
| 11. | 9843910 | [1] | CIRCUIT BREAKER | GI Superseded by part number: 87049195 |
| 12. | 86500940 | [2] | SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4" | NH |
| 13. | 9612631 | [1] | COVER | NH |
| 14. | 9612633 | [1] | SHIELD | NH |
| 15. | 9601073 | [1] | RELAY,12V, 80A | NH |
| 16. | 88146 | [2] | BOLT,Hex, 1/4" - 20 x 1", Gr 5 | PA Superseded by part number: 86505867 |
| 17. | 523282 | [4] | SERRATED NUT,Flg, USR, 1/4"-20 | WIN |
