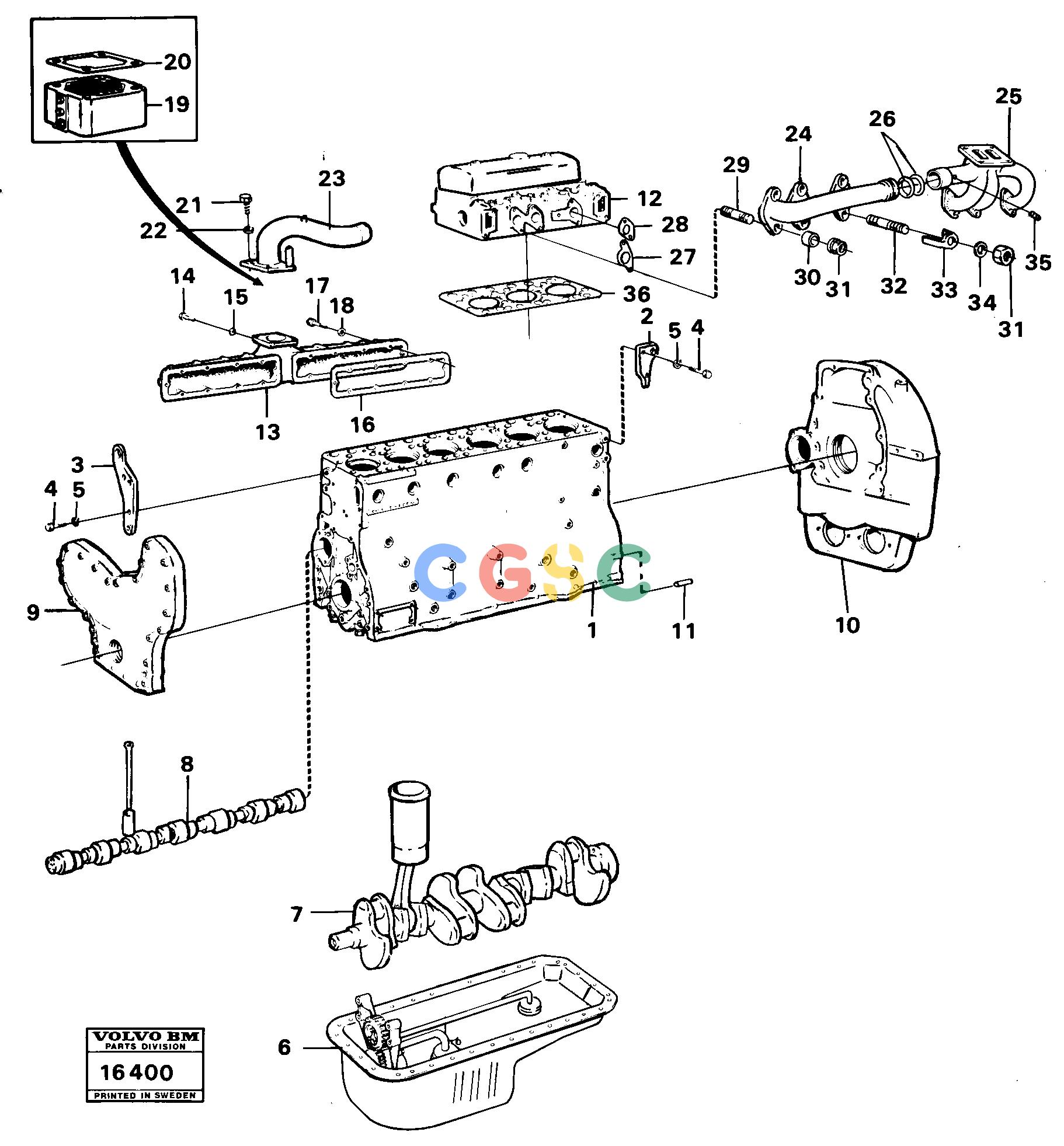

沃尔沃零件查询5350 Engine with fitting parts5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
755 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE940280
|
[0006] |
Spring washer
|
|
| 6. |
|
[0001] |
Lubricating system
|
|
| 7. |
|
[0001] |
Crankshaft
|
|
| 8. |
|
[0001] |
Camshaft
|
|
| 9. |
|
[0001] |
Timing gear casing
|
|
| 1. |
|
[0001] |
Cylinder block
|
|
| 10. |
|
[0001] |
Casing
|
SEE GROUP 41
|
| 11. |
VOE191171
|
[0002] |
Pin
|
|
| 12. |
|
[0002] |
Cylinder head
|
|
| 13. |
VOE466515
|
[0001] |
Inlet manifold
|
|
| 14. |
VOE940113
|
[0001] |
Hexagon screw
|
|
| 15. |
VOE957171
|
[0001] |
Gasket
|
|
| 16. |
VOE7421071
|
[0002] |
Gasket
|
|
| 17. |
VOE940161
|
[0006] |
Hexagon screw
|
L=45
|
| |
VOE13955527
|
[0004] |
Screw
|
L=57
|
| |
VOE955528
|
[0004] |
Hexagon screw
|
L=70
|
| 2. |
|
[0002] |
Iron
|
|
| |
VOE955530
|
[0004] |
Hexagon screw
|
L=73
|
| 18. |
VOE13955894
|
[0018] |
Washer
|
|
| 19. |
|
[0001] |
Starter element
|
|
| 20. |
VOE471682
|
[0002] |
Gasket
|
|
| 21. |
VOE955532
|
[0002] |
Hexagon screw
|
L=95
|
| |
VOE947828
|
[0002] |
Hexagon screw
|
L=165
|
| 22. |
VOE13941907
|
[0004] |
Washer
|
|
| 23. |
VOE466464
|
[0001] |
Tube
|
|
| 24. |
VOE7421165
|
[0001] |
Exhaust Pipe
|
|
| 25. |
VOE466458
|
[0001] |
Exhaust pipe
|
|
| 3. |
|
[0001] |
Iron
|
|
| 26. |
VOE411545
|
[0002] |
Sealing ring
|
|
| 27. |
VOE421534
|
[0002] |
Gasket
|
|
| 28. |
VOE421534
|
[0002] |
Gasket
|
|
| 29. |
VOE953490
|
[0012] |
Stud
|
|
| 30. |
VOE422217
|
[0012] |
Spacer sleeve
|
|
| 31. |
VOE942299
|
[0014] |
Flange nut
|
|
| 32. |
VOE953494
|
[0002] |
Stud
|
|
| 33. |
VOE421335
|
[0001] |
Clamping connector
|
|
| 34. |
VOE13940097
|
[0002] |
Washer
|
|
| 35. |
VOE952075
|
[0001] |
Plug
|
|
| 4. |
VOE955560
|
[0006] |
Hexagon screw
|
|
| 36. |
|
[0002] |
Set of gaskets
|
|
| |
VOE6630501
|
[0001] |
Gasket kit
|
|
| |
VOE7275450
|
[0001] |
Gasket Kit
|
|
