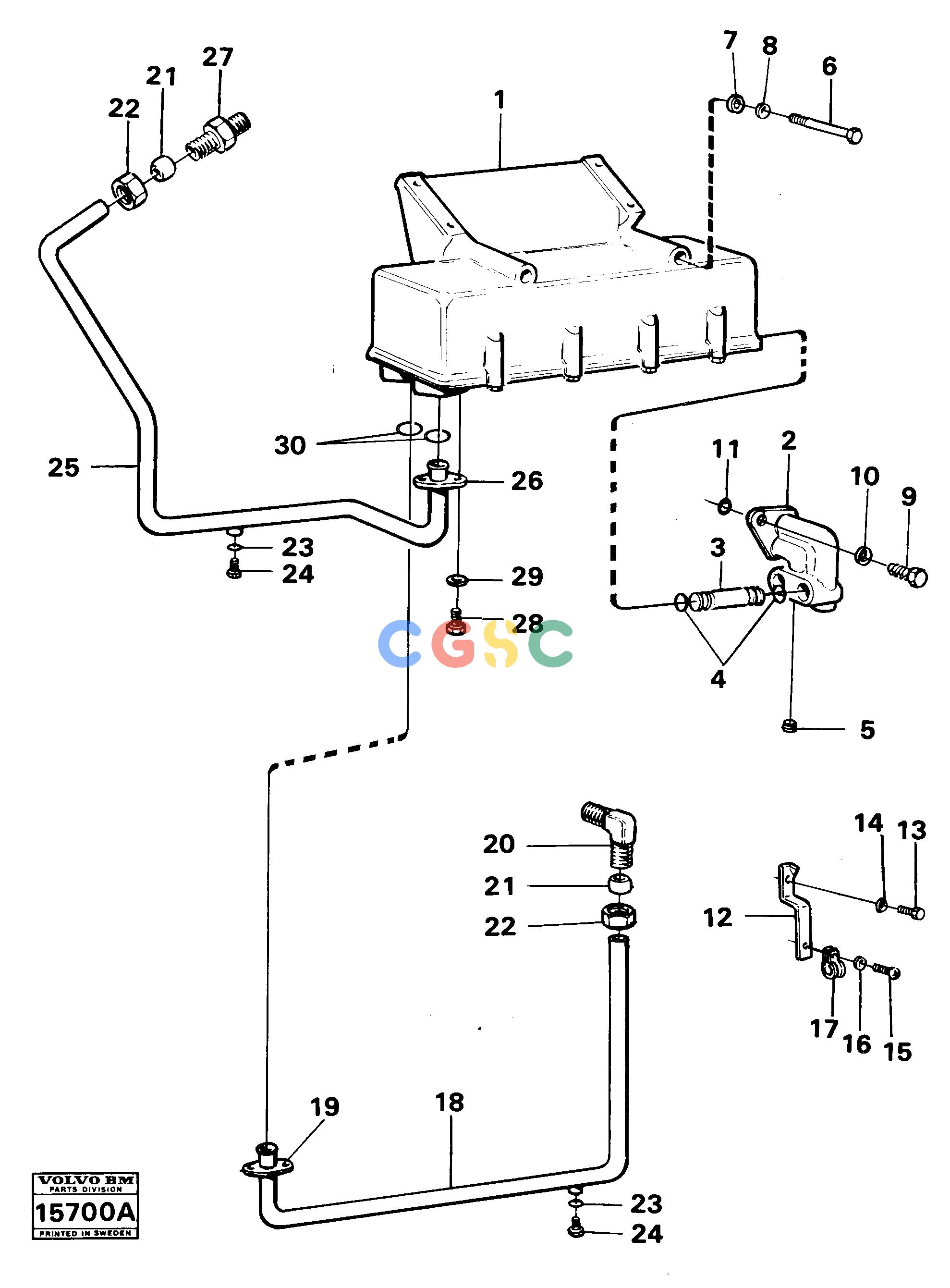

沃尔沃零件查询5350 Oil cooler with fitting parts5350 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
384 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE952076
|
[2] |
Plug
|
|
| 6. |
VOE959811
|
[2] |
Hexagon screw
|
|
| 7. |
VOE955898
|
[2] |
Washer
|
|
| 8. |
VOE13942336
|
[2] |
Spring washer
|
|
| 9. |
VOE13940115
|
[2] |
Screw
|
|
| 1. |
VOE466644
|
[0001] |
Oil cooler
|
|
| 10. |
VOE13942336
|
[2] |
Spring washer
|
|
| 11. |
VOE13949656
|
[2] |
O-ring
|
|
| 12. |
VOE466804
|
[1] |
Bracket
|
|
| 13. |
VOE13940133
|
[1] |
Screw
|
|
| 14. |
VOE13942336
|
[1] |
Spring washer
|
|
| 15. |
VOE950046
|
[1] |
Cross recessed screw
|
|
| 16. |
VOE13941906
|
[0001] |
Washer
|
|
| 17. |
VOE952630
|
[0001] |
Clamp
|
|
| 18. |
VOE471365
|
[0001] |
Pipe
|
|
| 19. |
|
[0001] |
Flange
|
|
| 2. |
VOE466751
|
[1] |
Housing
|
|
| 20. |
VOE947777
|
[0001] |
Elbow nipple
|
|
| 21. |
VOE980786
|
[0002] |
Ferrule
|
|
| 22. |
VOE11306599
|
[0002] |
Fitting nut
|
|
| 23. |
VOE13944988
|
[0002] |
O-ring
|
|
| 24. |
VOE479979
|
[0002] |
Plug
|
|
| 25. |
VOE466603
|
[0001] |
Tube
|
|
| 26. |
|
[0001] |
Flange
|
|
| 27. |
VOE13943192
|
[0001] |
Nipple
|
|
| 28. |
VOE955525
|
[0004] |
Hexagon screw
|
|
| 29. |
VOE13941907
|
[0004] |
Washer
|
|
| 3. |
VOE466752
|
[2] |
Tube
|
|
| 30. |
VOE13944988
|
[0002] |
O-ring
|
|
| 4. |
VOE943177
|
[8] |
O-ring
|
|
