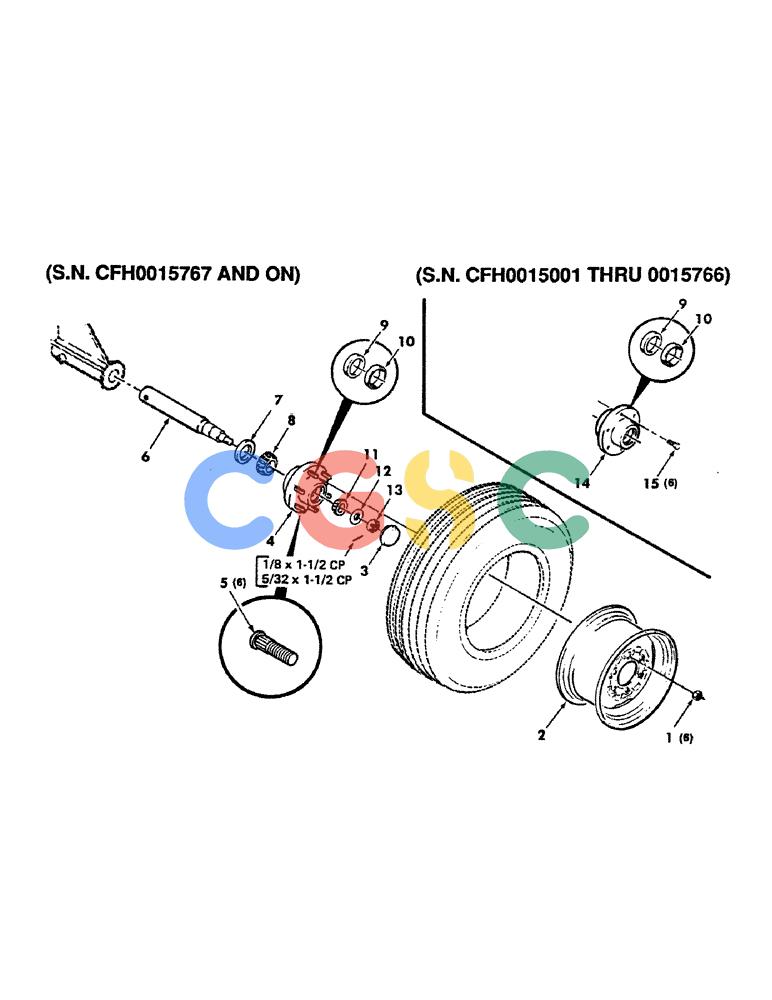

凯斯零件查询(8450) - CASE IH ROUND BALER (1/88-12/93) (024) - WHEEL AND AXLE ASSEMBLY, SERIAL NUMBER CFH0015767 AND ON, SERIAL NUMBER CFH0015001 THROUGH 0015766 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
826313
|
[6] |
NUT
|
CAS
9/16-18 Wheel Nut Superseded by part number: G49041
|
| 2. |
826008
|
[1] |
RIM
|
CAS
Wheel, 15" (Standard) Superseded by part number: A57879
|
| 2. |
26641
|
[1] |
WHEEL
|
HFI
13.5 (High Flotation) Superseded by part number: T39714
|
| 3. |
26930
|
[1] |
CAP
|
IH
- Hub Superseded by part number: 518842R1
|
| 4. |
700709830
|
[1] |
HUB
|
IH
Assembly (Hub will retrofit on all) (Includes Cups and Wheel Bolts) (S.N. CFH0015767 and on)
|
| 5. |
826370
|
[6] |
BOLT,Ribbed Nk, 9/16" - 18 x 2.12"
|
CAS
9/16-18 Ribbed Neck Wheel Bolt (S.N. CFH0015767 and on) Superseded by part number: T57455
|
| 6. |
700114346
|
[1] |
SPINDLE
|
IH
- Axle
|
| 7. |
844050
|
[1] |
SEAL
|
L
- Grease
|
| 8. |
713537
|
[1] |
ROLLER BEARING
|
CAS
Bearing Cone - Inner Superseded by part number: 86512015
|
| 9. |
713545
|
[1] |
CUP
|
CAS
Bearing Cup - Inner Superseded by part number: 663558R1
|
| 10. |
711242
|
[1] |
BEARING CUP
|
CAS
- Outer Superseded by part number: 47923369
|
| 11. |
711507
|
[1] |
ROLLER BEARING,31.77 mm ID x 16.764 mm
|
IH
Bearing Cone - Outer Superseded by part number: 84356153
|
| 12. |
26971
|
[1] |
WASHER
|
CAS
|
| 13. |
7704208
|
[1] |
SLOTTED NUT
|
CAS
3/4-16 Slotted Hex Nut Superseded by part number: 88886
|
| 14. |
826255
|
[2] |
HUB
|
CAS
Assembly (Includes Cups) (S.N. CFH0015001 thru 0015766)
|
| 15. |
T52730
|
[6] |
WHEEL BOLT
|
IH
9/16-18 x 1-1/8 Wheel Bolt (S.N. CFH0015001 thru 0015766) Superseded by part number: 86628557
|
