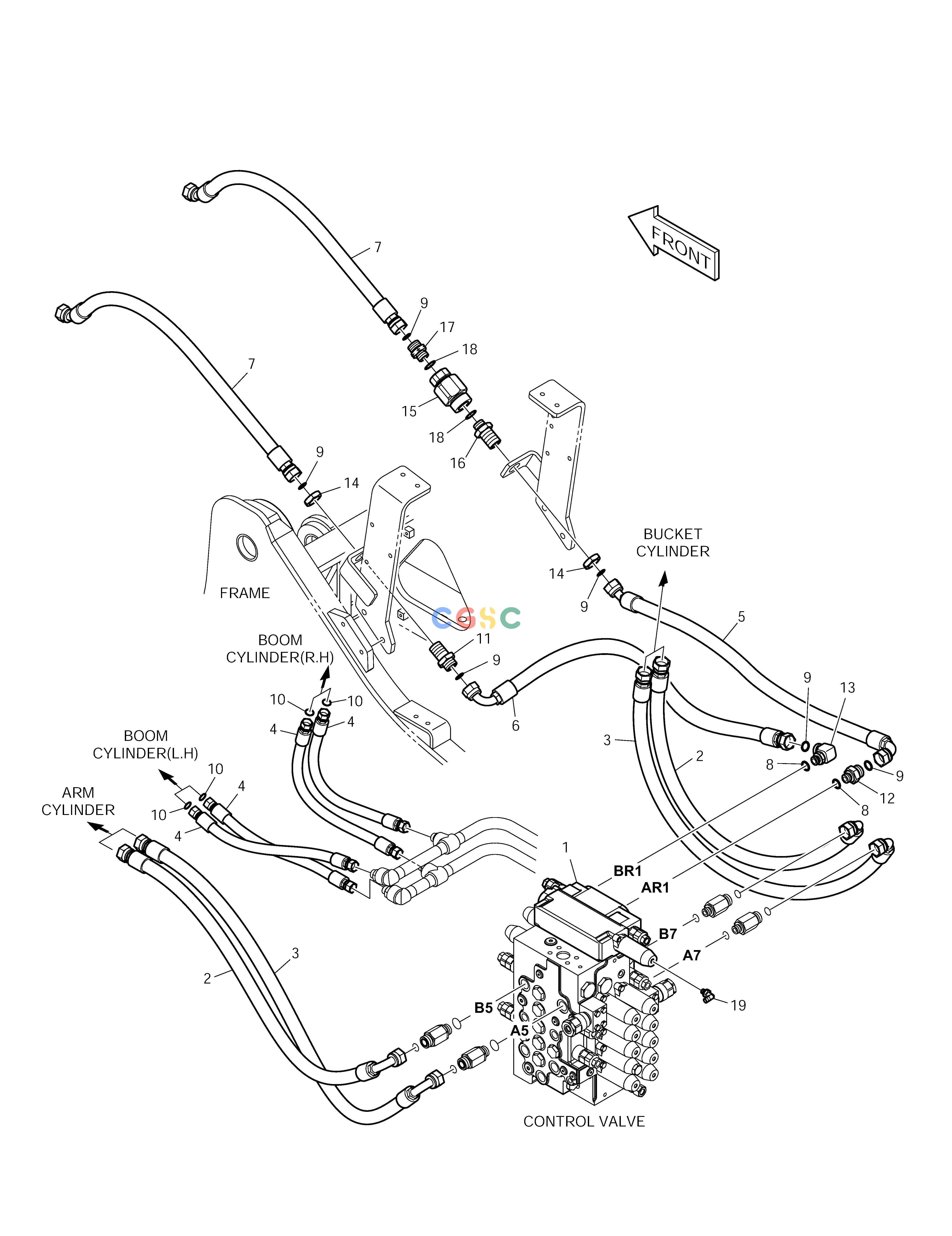

斗山零件查询MAIN PIPING - ARTI BOOM DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
364 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016150B
|
[-] |
MAIN PIPING;ARTI BOOM
|
|
| 1. |
K1013536A
|
[1] |
VALVE;CONTROL;ARTI OR DOZER
|
|
| 10. |
S8030081
|
[4] |
O-RING
|
|
| 11. |
DS2415007
|
[1] |
ADAPTER
|
|
| 12. |
DS2257002
|
[1] |
ADAPTER
|
|
| 13. |
2181-2294D1
|
[1] |
ELBOW
|
|
| 14. |
121-00010D8
|
[2] |
NUT
|
|
| 15. |
2420-9101A
|
[1] |
VALVE;SLOW RETURN
|
|
| 16. |
DS2465018
|
[1] |
ADAPTER
|
|
| 17. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 18. |
S8000241
|
[2] |
O-RING
|
|
| 19. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 2. |
DS2013318
|
[2] |
HOSE
|
|
| 3. |
DS2013197
|
[2] |
HOSE
|
|
| 4. |
DS2011630
|
[4] |
HOSE
|
|
| 5. |
DS2021176
|
[1] |
HOSE
|
|
| 6. |
DS2013792
|
[1] |
HOSE
|
|
| 7. |
DS2012375
|
[2] |
HOSE
|
|
| 8. |
S8000181
|
[2] |
O-RING
|
|
| 9. |
S8030121
|
[6] |
O-RING
|
|
