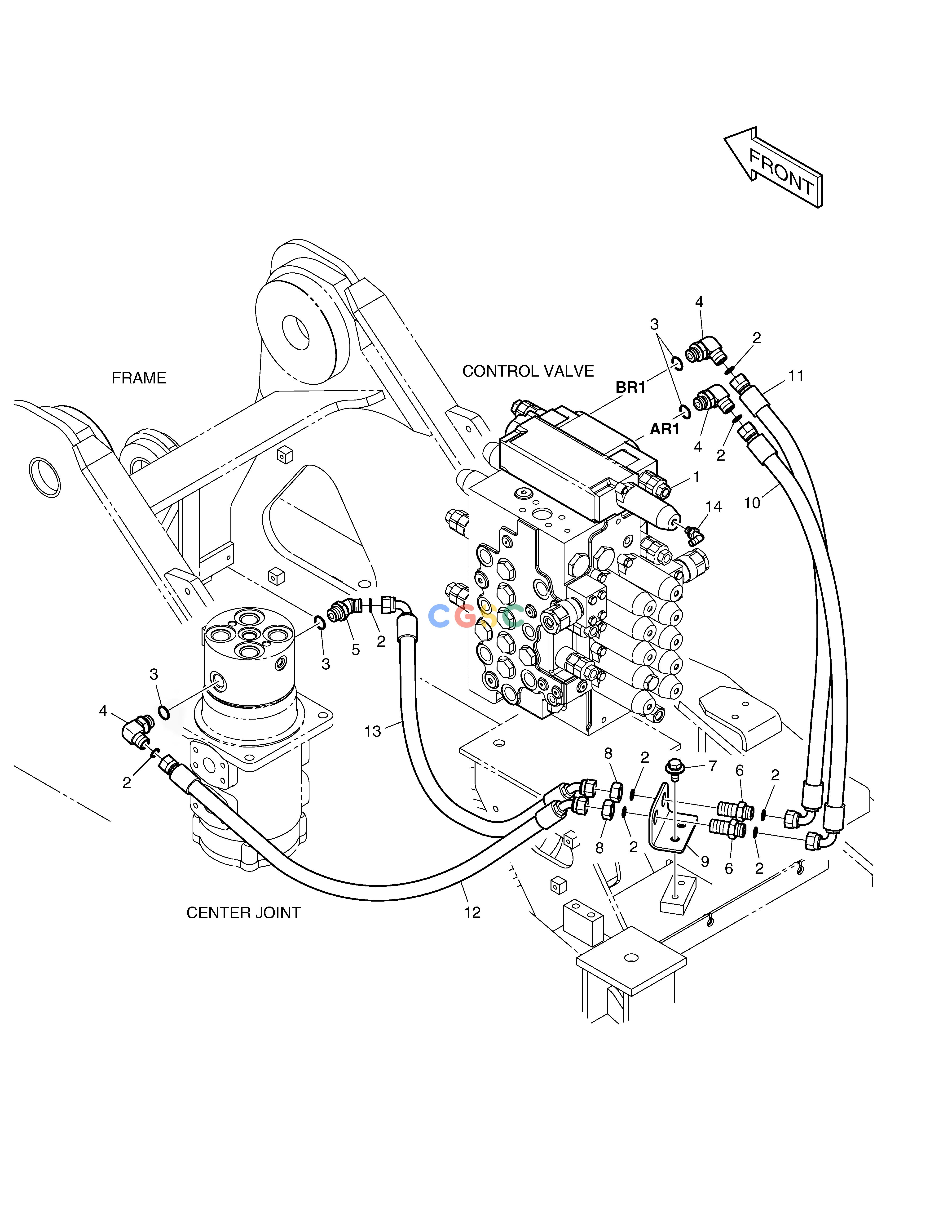

斗山零件查询MAIN PIPING - DOZER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
902 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1024565G
|
[-] |
MAIN PIPING;DOZER
|
|
| 1. |
K1013536A
|
[1] |
VALVE;CONTROL;ARTI OR DOZER
|
|
| 10. |
DS2013922
|
[1] |
HOSE
|
|
| 11. |
DS2013921
|
[1] |
HOSE
|
|
| 12. |
DS2012472
|
[1] |
HOSE 13/16"-16UN-2B
|
|
| 13. |
DS2021182
|
[1] |
HOSE
|
|
| 14. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 2. |
S8030081
|
[8] |
O-RING
|
|
| 3. |
S8000181
|
[4] |
O-RING
|
|
| 4. |
2181-2815D3
|
[3] |
ELBOW
|
|
| 5. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 6. |
181-00128D3
|
[2] |
ADAPTER
|
|
| 7. |
DS0025019
|
[2] |
BOLT
|
|
| 8. |
121-00010D5
|
[2] |
NUT
|
|
| 9. |
K1027214
|
[1] |
BRACKET
|
K1027214A
|
| 9. |
K1027214A
|
[1] |
BRACKET
|
|
